The History of TIG Welding

The origin of TIG welding is a lesson in practical frustration driving groundbreaking innovation.

The history of TIG welding begins with Russell Meredith, an engineer who became frustrated and said, "There's got to be a better way."

Russell Meredith didn't wake up one day thinking he'd change welding forever. He just wanted to stop burning holes in aluminum sheets while welding.

The year was 1940, and aircraft companies faced a real challenge. Gas welding was a mess; it was unpredictable as hell. And electric arc welding would simply burn straight through thin aluminum, as if it weren't even there. What Meredith came up with was clever: tungsten electrodes that don't melt, wrapped in protective gas. Sounds simple when you put it like that, but it changed everything in the welding industry.

How TIG Welding Began

In 1940, Europe was already fighting World War II, while the United States was making preparations for its eventual, and perhaps inevitable, entry into the hostilities. We were selling planes to Britain through the Lend-Lease Act, while simultaneously building up our air force.

Northrop Aircraft Corporation was operating under a mandate to mass-produce planes, but the welders kept making mistakes with the expensive aluminum parts. Every time a welder burned through a sheet of aluminum, that was precious money and materials that could have delivered another aircraft.

Gas metal arc welding would work sometimes, but "sometimes" isn't good enough when you're building planes. When you're building aircraft, “good enough” often equals failure. The welding arc would go wobbly, dirty air would creep in, and you'd end up scrapping parts.

MIG welding? That type of welding didn't exist yet. Welders of that era were limited by what they had, and what they had wasn't cutting it for precision work on large-scale aircraft production. The welding industry needed a breakthrough that could handle aluminum and magnesium alloys properly, without the large amount of waste that was happening.

Historical Development

When the US entered the war in late 1941, aircraft demand skyrocketed. Companies desperately needed reliable ways to weld lightweight materials. Gas tungsten arc welding was born out of pressure and need.

Pure tungsten electrodes were the game changer; they remained solid the whole time, unlike everything else, which burned away. The TIG welding process was revolutionary compared to other welding processes.

Once gas shielding was worked out, weld quality remarkably improved. This protective inert gas atmosphere stopped all the contamination which led to bad welds. Shielding gas flow was now capable of being precisely controlled to produce high-quality welds consistently.

War Pushed Things Forward Fast

When we entered the war in 1941, everything had to happen yesterday. Plane production ramped up exponentially, and yet quality couldn't be allowed to slip. Old welding methods failed too often on aluminum and magnesium, and could be a real danger to the welder.

The pressure was building even before we officially entered the war: develop better techniques or watch aircraft programs fail. America was already becoming the "arsenal of democracy," supplying aircraft to allies fighting in Europe. That urgency contributed to a much needed step forward in welding technology development.

MIG welding was just an idea on paper, nowhere near ready for actual production. Everyone focused on getting tungsten inert gas welding up and running right away.

Early Gas Protection Tests

Researchers tried everything they could think of, including different gases, various mixtures, and different methods of delivery. Inert gas protection proved to be the breakthrough that enabled tungsten electrode welding to work effectively in factories.

Union Carbide jumped in with both feet, developing gas mixtures that significantly improved the results. Their work turned TIG welding from a lab experiment into something you could actually use.

Getting the gas flow right was a tricky task. Too little and contamination got in. Too much and you'd get turbulence that made things worse.

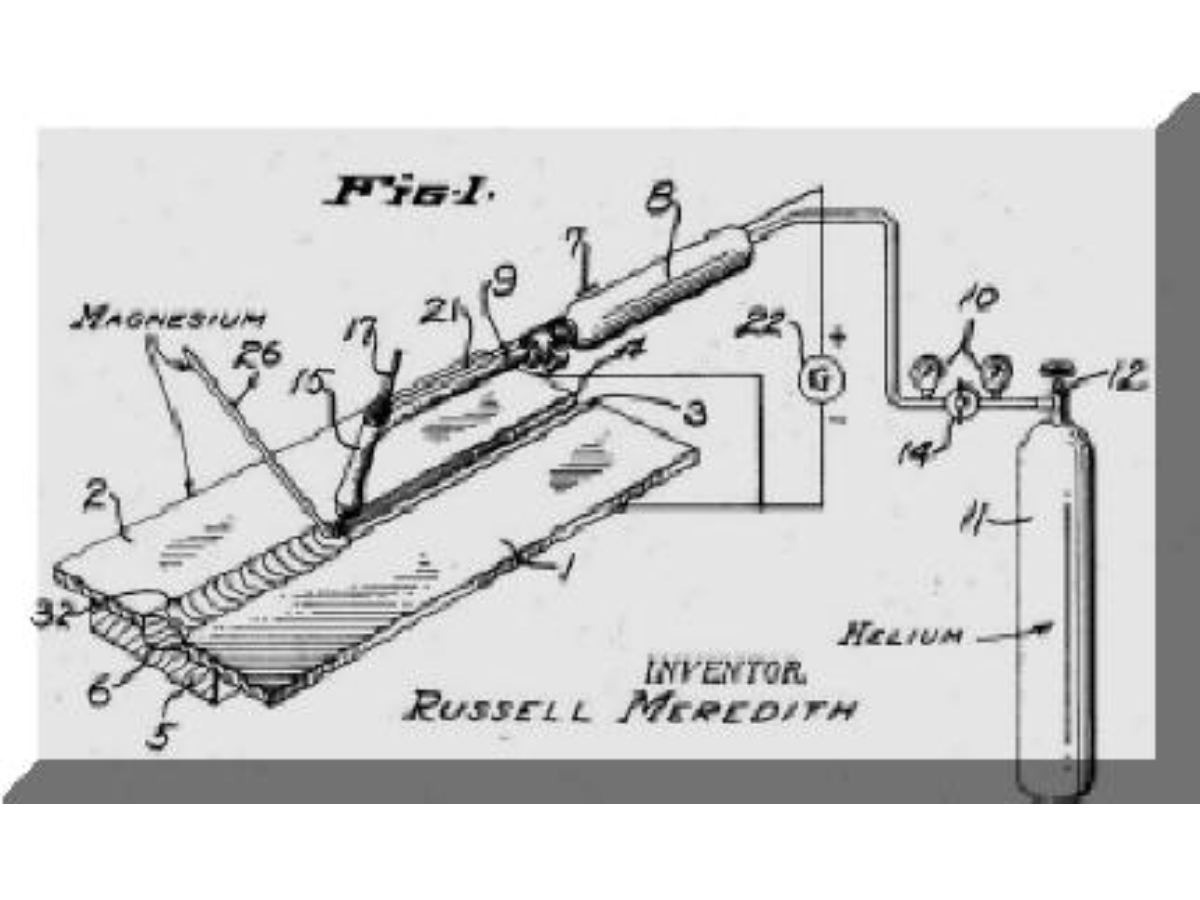

Russell Meredith's Contributions

What Meredith figured out wasn't just technically smart; it actually worked in the real world. He solved the contamination problem that had been driving welders nuts for years. Using an inert gas to protect the weld area prevented oxygen and nitrogen from contaminating the molten metal.

This gas created a protective bubble around the tungsten electrode and weld puddle. Simple physics, but nobody had made it work reliably before Meredith cracked the code. The American Welding Society would later recognize this as a major breakthrough in welding technology.

Instead of just accepting contamination as part of welding, he eliminated it. That changed what was possible with precision work. Modern welding technology owes a lot to Meredith's innovations.

The Tungsten Electrode Game-Changer

Meredith's setup was a different game. His tungsten electrode? It didn't burn up like everything else. While everybody else was watching their electrodes disappear, his just sat there doing their job.

This was huge. Finally, welders could actually control what they were doing. Start where you want, stop where you want, heat exactly what you need to heat. Before this, it was essentially a gamble every time an arc was struck.

Why did it work so much better? Simple, the tungsten stayed the same shape the entire time. No surprises, no guessing. Aircraft guys saw this and immediately knew they'd found their answer.

Torch Design Innovation

The torch was the tricky part, demanding two seemingly contradictory functions: precisely delivering gas to the weld area while simultaneously allowing the operator clear visibility of their work.

Despite the urgent need, working out this process was perhaps the most time consuming and critical process in the TIG welding process creation.

Meredith spent ages getting the gas flow right. Too much gas? Creates a mess. Too little? Your weld gets contaminated. Finding that middle ground required a great deal of trial and error to get right. However, perfecting the gas flow rate would be essential.

The gas has to flow smoothly. If it's all choppy, it actually pulls bad air into your weld zone. The TIG welding method depends on this smooth gas flow.

Early 20th Century Innovations

By the early 20th century, arc welding had become widely adopted. It proved highly effective for robust, heavy-duty applications, particularly in fabricating structural steel and other thick materials. However, its intensity made it poorly suited for tasks demanding precision or for joining thin materials, where control was required.

Gas welding remained in use during this period, often serving as the only viable alternative. Yet, it presented its own limitations. The process generated a broad heat-affected zone, making it exceptionally challenging to weld delicate or thin materials without causing distortion or warping. This inherent lack of precision led to considerable frustration among welders

The concept of MIG welding was still decades away from realization. Welders were constrained by the limited technologies at their disposal, necessitating workarounds and compromises for applications that modern techniques would handle with ease.

Better Power Sources

When better power sources came along, everything changed. These constant-voltage power source systems finally provided welders with steady, reliable current instead of the jumpy, erratic power that made early equipment such a challenge to work with. Suddenly, your arc would actually stay stable instead of bouncing around like a ping-pong ball.

Those early welding machines were absolute monsters; they were heavy as trucks and hungry for power. Transformer-based systems were basically all you could get back then, but anyone who used them knew they were awful. The controls were rough, you couldn't move them, and they'd break down when you needed them most.

Aircraft companies were the ones pushing hardest for better power sources. When you're welding airplane parts, you can't deal with the kind of inconsistencies that might be okay for other jobs.

Learning About Metals

Gaining a better understanding of metallurgy helped welders determine why different materials behaved in unusual ways during welding. This knowledge was key for developing techniques that actually worked with aluminum and magnesium.

Light alloys were challenging to work with because they reacted strongly to heat and contamination. Traditional methods kept failing because they couldn't prevent oxidation and other contamination problems.

Understanding the underlying science reveals precisely why TIG welding proved so effective on challenging materials. The crucial element was the inert gas shield, which prevented oxide formation. This allowed the metals to fuse cleanly and properly, leading to superior, high-quality welds.

Modern TIG Welding Processes

If Meredith could see today's TIG welding equipment, he would be shocked and amazed. The same basic ideas, but the control and precision available now would have seemed like science fiction in the 1940s.

Modern TIG welding features include pulse welding, slope controls, and programmable settings, among others. These aren't just bells and whistles; they help you get consistent results across different materials.

Weld quality these days reaches levels that old-school welders would've thought impossible. Modern TIG welding can make joints that are stronger than the base metal. This isn't merely an incremental improvement; it means that in many applications, if a structure were to fail under extreme stress, it would be the original, unwelded material that yields before the added TIG weld.

Advanced Control Systems

Modern TIG welding machines demonstrate remarkable advancements in intelligent automation, fundamentally simplifying complex welding processes. Power sources now feature automatic AC/DC switching, dynamically adapting to the specific material being joined.

This is critical: Alternating Current (AC) is essential for its unique cathodic cleaning action, effectively breaking up the tenacious oxide layer on aluminum. Conversely, Direct Current (DC) provides a more stable arc and deeper penetration, making it ideal for welding steel and stainless steel. This automated optimization ensures superior weld quality and efficiency without requiring constant manual adjustment from the operator.

Further enhancing precision and repeatability, these advanced machines are equipped with sophisticated digital controls. This allows operators to meticulously "dial in" parameters with exact precision and to save these preferred settings. The ability to store favorite or frequently used configurations is especially invaluable in production environments, where consistent, repeatable results are required for high-volume tasks.

Indeed, the most capable modern TIG welders can store hundreds of distinct programs. Each program pre-configures all necessary settings—such as amperage, balance, frequency, and pulse rates—for specific material types, thicknesses, and joint designs. This vast storage capacity dramatically reduces setup time, minimizes human error, and ensures optimal, consistent weld quality across a diverse range of applications.

Gas Technology Improvements

Shielding gas technology has advanced dramatically since the rudimentary experiments of TIG weld design. Today, welders benefit from a sophisticated array of gas mixtures, formulated for specific tasks and materials

Argon is an excellent choice for its stable arc and strong cleaning action. Gases like Helium are now employed for their superior heat transfer, ideal for thicker materials or higher travel speeds. Furthermore, specialty mixes are precisely engineered to optimize results for exotic alloys or particular welding characteristics.

These gases are often paired with remarkably sophisticated gas flow control systems. Modern setups integrate highly precise flowmeters to ensure exact gas delivery, critical for preventing atmospheric contamination of the weld pool. Complementing this, automatic shutoffs enhance both safety and efficiency, preventing wasteful gas expenditure when the arc is not active.

Modern gas management systems offer a level of control far surpassing early equipment. Intuitive digital displays provide operators with real-time, precise readouts of flow rates, empowering them to maintain optimal shielding conditions with unwavering accuracy and confidence throughout the welding process.

Specialized Welding Techniques

Different industries developed their own tricks for specific needs. Hot wire systems preheat the filler metal to speed up the process without compromising quality. Orbital systems automate pipe welding with fantastic precision.

Plasma arc welding evolved from TIG welding principles, similar to tungsten electrodes and gas protection. Both processes produce extremely high-quality welds for jobs where precision is important.

When comparing TIG welding and MIG welding, it becomes clear how each process serves different needs. MIG is faster for production work, while TIG provides better precision and quality.

Improved Equipment

Tungsten electrode technology has advanced significantly with the development of improved materials and enhanced preparation methods.

Despite these significant technological advancements, the foundational importance of proper electrode preparation remains undiminished. Even with the most sophisticated equipment, meticulous grinding and care of the tungsten electrode are essential. Modern tungsten grinders produce consistently precise electrode points, resulting in improved arc starting and stability.

Today's machines are lighter, more portable, and more capable than early equipment. Inverter technology and revolutionized power source design offer better arc characteristics in a smaller, lighter package.

Water Cooling Systems

Water-cooled torches allow you to run higher currents for longer periods without overheating. This is essential for production welding, where speed and consistency determine whether you make money or not.

Modern cooling systems are more reliable and efficient than early designs. Better pumps, heat exchangers, and monitoring systems, all designed to prevent expensive equipment damage from overheating.

Aircraft companies rely heavily on water-cooled equipment for production work. High-quality plane welds need sustained high current that's only possible with good cooling.

How Does TIG Welding Work?

The TIG welding process uses tungsten inert gas to make precise, clean welds. The torch holds a non-consumable tungsten electrode while shielding gas flows around it, keeping contamination away.

Strike an arc and electricity flows from the tungsten to your workpiece, creating intense heat that melts the base metal. The weld puddle forms where the arc hits, and you control both size and shape with incredible precision.

This differs from MIG welding, which uses consumable wire. TIG's non-consumable tungsten electrode gives you much more precise control.

Arc Formation and Control

The welding arc in TIG welding is incredibly stable compared to other processes. This comes from combining the tungsten electrode with inert gas protection, which stops contamination from affecting the arc.

You can start the arc two ways: high-frequency ignition or lift-arc. High frequency doesn't require touching the electrode to the work, which keeps things clean.

Arc control is fundamental to getting good welds. The stable characteristics let you maintain consistent heat input and penetration throughout the joint.

Heat Input Management

Controlling heat input is critical for successful TIG welding. You adjust the current to control exactly how much heat goes into the workpiece. Too much burns through thin stuff. Too little creates weak welds that fail.

The electrical current can be AC or DC, depending on the material. AC works best for aluminum due to its cleaning action. DC is preferred for steel and stainless.

Modern machines give you precise heat control through advanced current systems. They maintain exact levels regardless of how your arc length changes.

Adding Filler Metal

You add filler metal to the puddle as needed, either by hand-feeding a rod or through automated systems. The rod melts into the puddle and becomes part of the finished joint.

Bare wire works well as filler because it doesn't have flux coatings that could contaminate your work. Different base metals need specific filler materials for the best results.

Picking the right filler is crucial for optimal weld quality. The material must be compatible with your base metals and provide the necessary strength.

TIG Welding in Different Industries

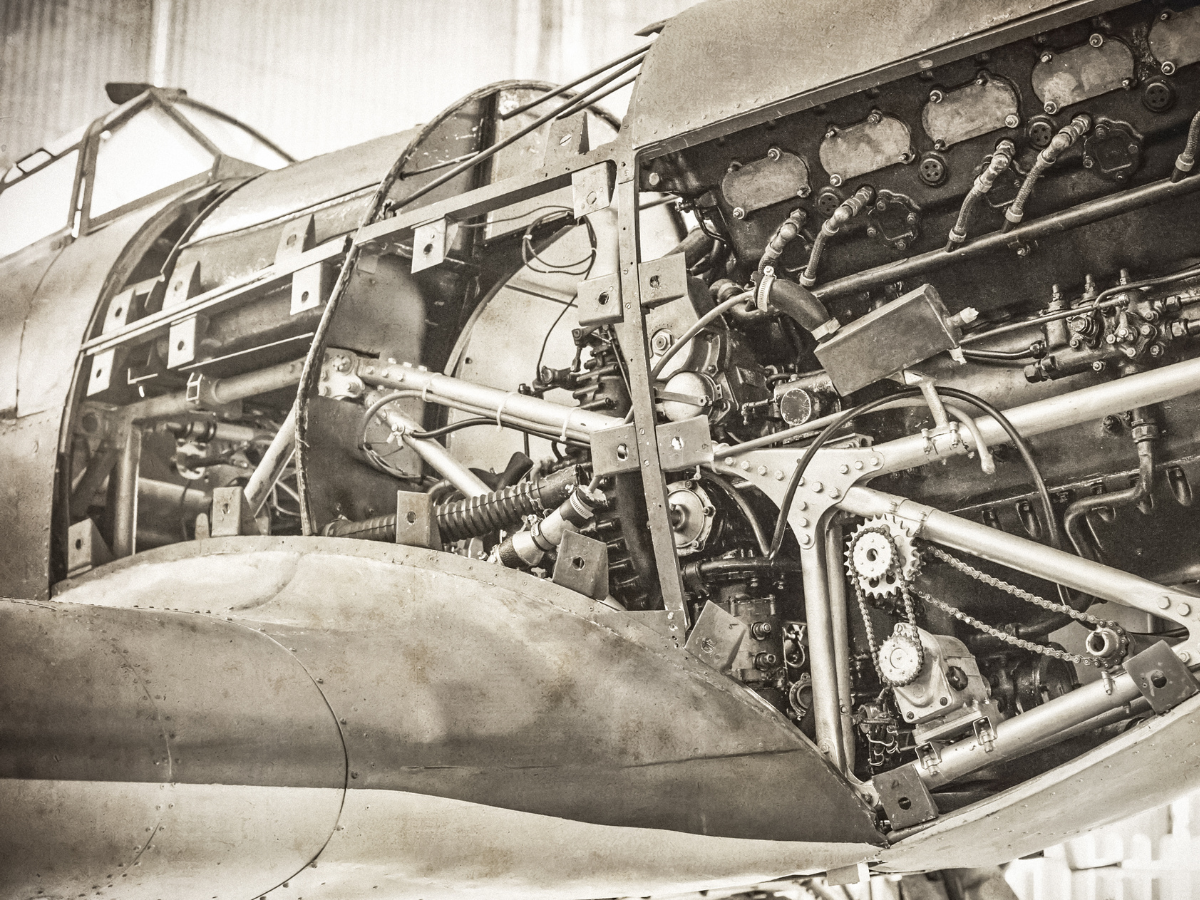

The aircraft industry remains one of the largest users of TIG welding for critical welding. Plane manufacturers rely on this process for joining aluminum and magnesium, where weld quality is extremely important.

Precision manufacturing uses TIG welding extensively for parts that need an exact fit and finish. The process produces clean welds that often require no finishing work, saving time and money.

Industries have found tons of uses for TIG welding beyond its original aircraft applications. The superior quality and precision make it valuable wherever high-quality joints are needed.

Aerospace Applications

When welding aircraft parts, failure isn't an option; people's lives are literally at stake. TIG provides the precision and reliability you need for critical components, including structural parts and engine components.

Aircraft companies continue to push the envelope with TIG welding technology. New plane designs utilize materials that would have been impossible to work with just a few years ago.

Space work? That's even crazier. When NASA's building something that's going to Mars, there's no such thing as "eh, close enough." Everything has to be perfect.

Medical Device Manufacturing

Medical device companies rely on TIG welding for products such as surgical instruments and implants. You need that kind of precision and cleanliness for parts that must meet extremely strict safety standards.

Stainless steel medical equipment requires TIG welded as the clean welds produced won't harbor bacteria. This is particularly important for surgical tools and tables, as even a minor infection can be deadly.

Food Processing Equipment

Food processing companies opt for TIG welding because, as in the medical device industry, the clean welds meet all the necessary sanitary requirements. Stainless equipment for dairy, beverage, and pharmaceutical applications is almost always TIG welded, because hygiene is of the utmost importance in these industries.

The smooth, clean welds produced are easy to sanitize properly while also holding up well to harsh cleaning chemicals. This makes TIG welding perfect for equipment that has to pass strict food safety inspections.

The Future of TIG Welding

The future looks promising for TIG welding, as new technology continues to enhance Meredith's basic process. New electrode materials under research are expected to last longer and perform better than the tungsten we currently use.

With this kind of continued research and experimentation, future TIG and MIG welding techniques are expected to become even more specialized.

Automation and Robotics

Digital controls are becoming increasingly intelligent, enabling machines to adjust settings in real-time based on current conditions automatically. These systems help newer welders get results that used to take years to learn.

Robotic TIG systems are showing up more in production shops. They produce consistent, high-quality welds faster than doing it by hand, while maintaining the precision that makes TIG worth using.

Not surprisingly, aircraft companies are leading the charge with advanced automation. Robot systems have demonstrated an ability to meet the quality standards that aircraft work requires with increased output and efficiency.

Advanced Materials and Techniques

Gas companies have shown a knack for coming up with new mixtures that work better for different jobs. Some help you get deeper penetration on thick stuff than previously possible. Others may allow you to move faster while keeping a clean weld.

Power supplies are becoming lighter and cleaner as well. The new inverter units are half the size of the old transformer machines, while putting out an increased power load.

New materials and modern equipment will undoubtedly lead to new TIG techniques that continue to push to threshold of what is possible in the welding space.

Conclusion

What Meredith started at Northrop is still going strong after all these years. The basic concept hasn't changed, with minor improvements adding up to significant advancements. Every few years, something new comes along that makes the job easier or the welds stronger and better.

Regardless of whether you're working on airplanes, medical equipment, or custom fabrication, TIG welding still provides you with control and quality that's hard to beat. And it keeps getting better, with companies like Arc-Zone helping carry that legacy forward by making sure welders have access to the tools and tech they need to keep raising the bar.
