Description

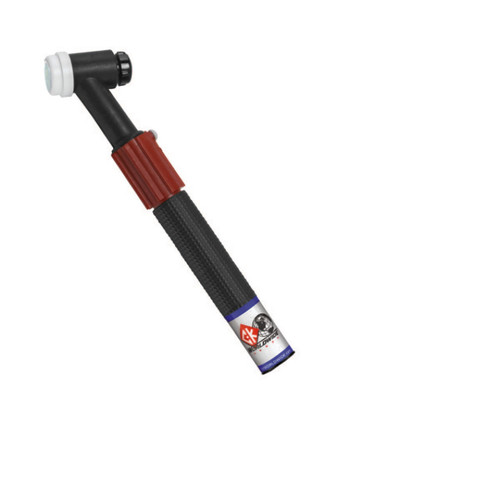

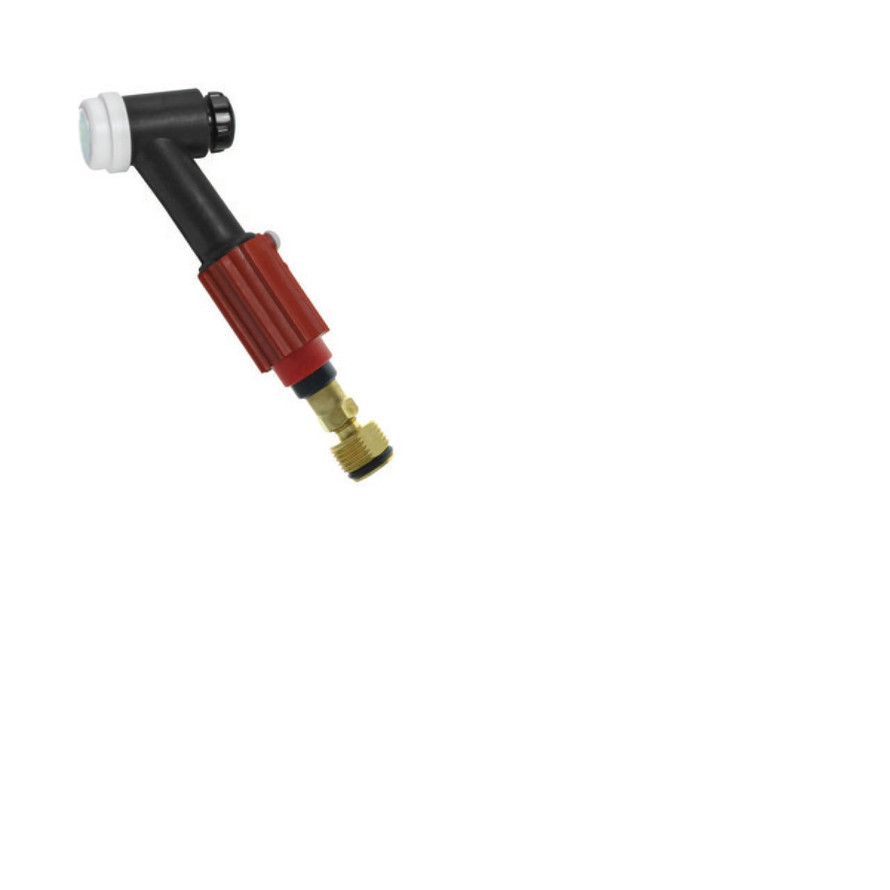

CK-C150V-HDL
Rugged 150 Amp Air-Cooled TIG Torch Body With Rigid 70° Head With Innovative Built-In Gas Valve With Twist-Lock Action. Features Reinforced Torch Body and Stainless Steel Threads For Enhanced Durability.
With a stainless steel torch body and an integrated gas valve system, this is the most durable 3-Series (17-Series) TIG torch on the market.
This torch uses standard 3-Series (17/18/26 series) front end parts.
With a proprietary metric power connection, this torch is designed exclusively for use with a CK-1512PCCMSF, CK-1525PCCMSF, CK-1512PCNMSF, or CK-1525PCNMSF power cable.
| Specifications: | CK-C150V | |||
|---|---|---|---|---|
| Amperage | 150 Amp ACHF or DCSP @100% Duty Cycle. | |||
| Air-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 4.5oz. (127g) | |||
| Torch length | 7.75" (196mm) | |||
| Handle diameter | 1" (254mm) | |||
| Power Connection | Torch: 1/8"-28 BSP | Machine: 5/8"-18RH Male | ||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
17 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
|
Torch Model:
|
CK-C150
|
