Description

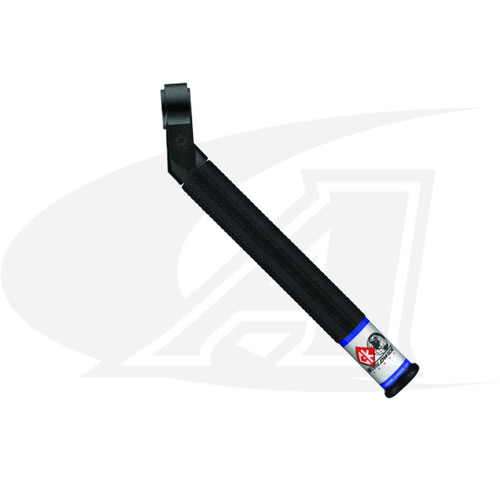

CK-FL130
2 Series Flex-Loc™ Variable Angle Head Air-Cooled 130Amp.
Torch body can be outfitted with either the small CK-FL2L, 2-Series head for a 130A capacity, or the larger CK-FL3L for a 150A capacity (sold separately).
Note: Torch uses special metric power connection and is intended for use exclusively with the CK-1512PCSFM or CK-1525PCSFM power cables.
| Specifications: | CK-FL130 | |||
|---|---|---|---|---|
| Amperage | 130 ACHF or DCSP @ 100% Duty Cycle. | |||
| Air-Cooled body | 60º Swivel Head | |||
| Electrode capacity | .020" (0.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 4.75oz. (135g) w/ head | |||
| Torch length | 7" (178mm) | |||
| Handle diameter | 3/4" (19.1mm) | |||
| Power Connection | Torch: 1/8"-28 BSP | Machine: Gas: 3/8"-24RH Male Power: Copper Lug | ||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
Specialty Torches
|
|
Amperage Rating:
|
100 - 130 Amp
|
