Description

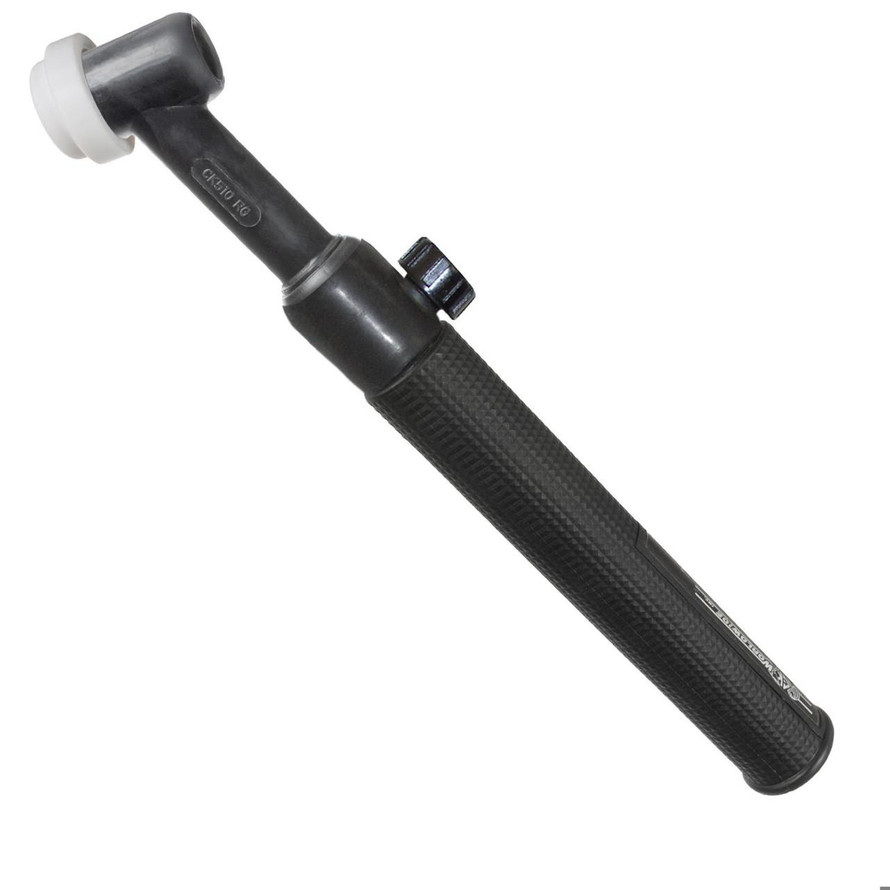

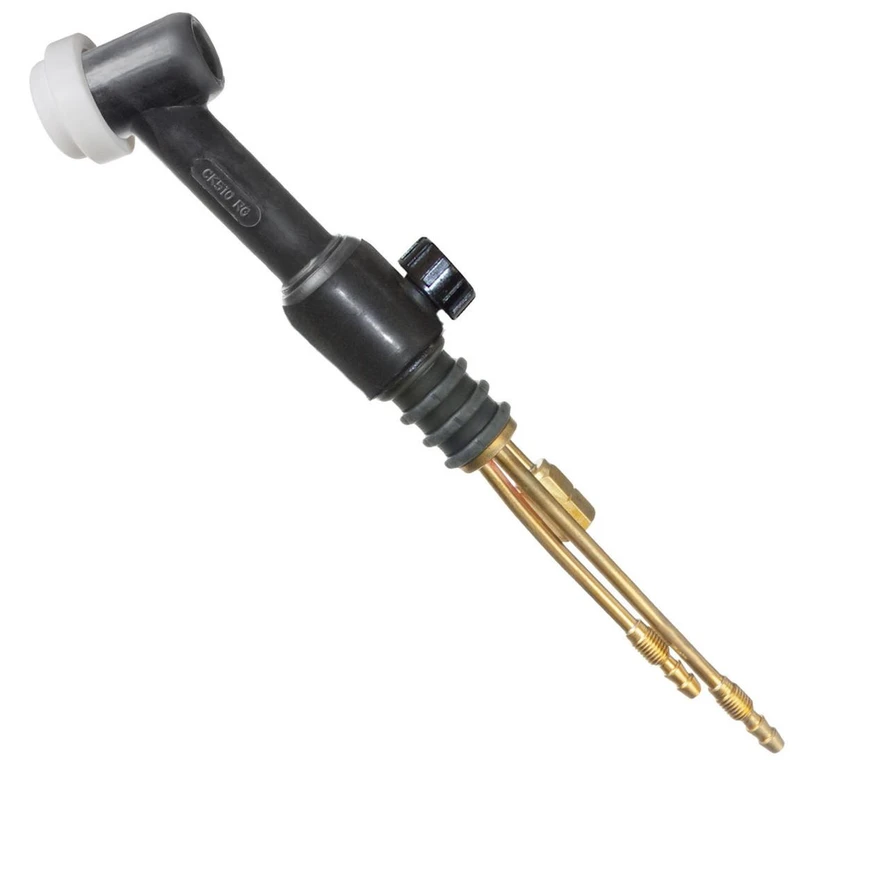

CK-510V
3 Series Heavy-Duty 500 Amp Water-Cooled TIG Torch Body With Rigid 70° Head with Built-In Gas Valve.
This torch body uses 3-Series (17/18/26 Series) front end parts as well as the high amperage 51-Series front end parts.
The CK-510V is specifically designed for use with the CK-512PCSF or CK-525PCSF power cable and uses standard 3-series (18-series) water, & gas lines.
| Specifications: | CK-510V | |||
|---|---|---|---|---|
| Amperage | 500 Amp ACHF or DCSP @100% Duty Cycle. | |||
| Water-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 6.75oz. (191g) | |||
| Torch length | 9.25" (235mm) | |||
| Handle diameter | 9/8" (286mm) | |||
| Power Connection | 7/8"-14LH Female | |||
| Gas Connection | 5/8"-18RH Female | |||
| Water Connection | 5/8"-18LH Female | |||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
18 Style
|
|
Torch Model:
|
Specialty Torches
|
|
Amperage Rating:
|
>350 Amp
|
