Monster12™ Cup Kit (9/2 Series Torches)
(Select Electrode Size & Quantity From Options Above)
Monster12™ Nozzle & Gas Lens Kit. #12 = 3/4" (19.05mm) Gas Orifice x 1" (25.4mm) Long. Everything you need in one kit!
Monster Cups are engineered to deliver a coherent stream of shielding gas for improved weld-quality and consistency.
Perfect for welding Stainless Steel, Chromoly, Docol R8, etc., then these cups may be exactly what you need to improve gas coverage, arc stability, tungsten stick-out, and visibility. Monster™ Nozzles are used by top metal fabricators worldwide!
SAVE Over $15 When You Purchase 2 Cups With Your Gas Lens Kit
Kit Includes:
Part # | A-MN12-2-116 | A-MN12-2-116X2 | A-MN12-2-332 | A-MN12-2-332X2 |
---|---|---|---|---|
Monster12™ Cup w/ Varying Mesh Diffuser |
1 | 2 (20% Savings) |
1 | 2 (20% Savings) |
Gas Lens | 1/16" (1.6mm) | 1/16" (1.6mm) | 3/32" (2.4mm) | 3/32" (2.4mm) |
Wedge Collet | 1/16" (1.6mm) | 1/16" (1.6mm) | 3/32" (2.4mm) | 3/32" (2.4mm) |
Teflon Insulator | 1 | 1 | 1 | 1 |
Short Back Cap | 1 | 1 | 1 | 1 |
Medium Back Cap | 1 | 1 | 1 | 1 |
Note: To ensure optimal performance all Monster™ nozzle kits are built with Arc-Zone's Performance Proven™ TIG torch parts.
- Monster12™ nozzles are made of durable, non-reactive ZTA (Zirconia Toughened Alumina) ceramic with 316L stainless steel gas diffuser installed
- Thread-on design securely seals to Teflon heat shield, No o-rings, No gas leaks, No high-freq arc-outs, No drama
- Flow-tested Gas Lens Collet Body
- Leak-tested Medium Back Cap
- Leak-tested Short Back Cap
- Heavy-Duty Wedge Collet
- High Heat Glass Filled Teflon Insulator

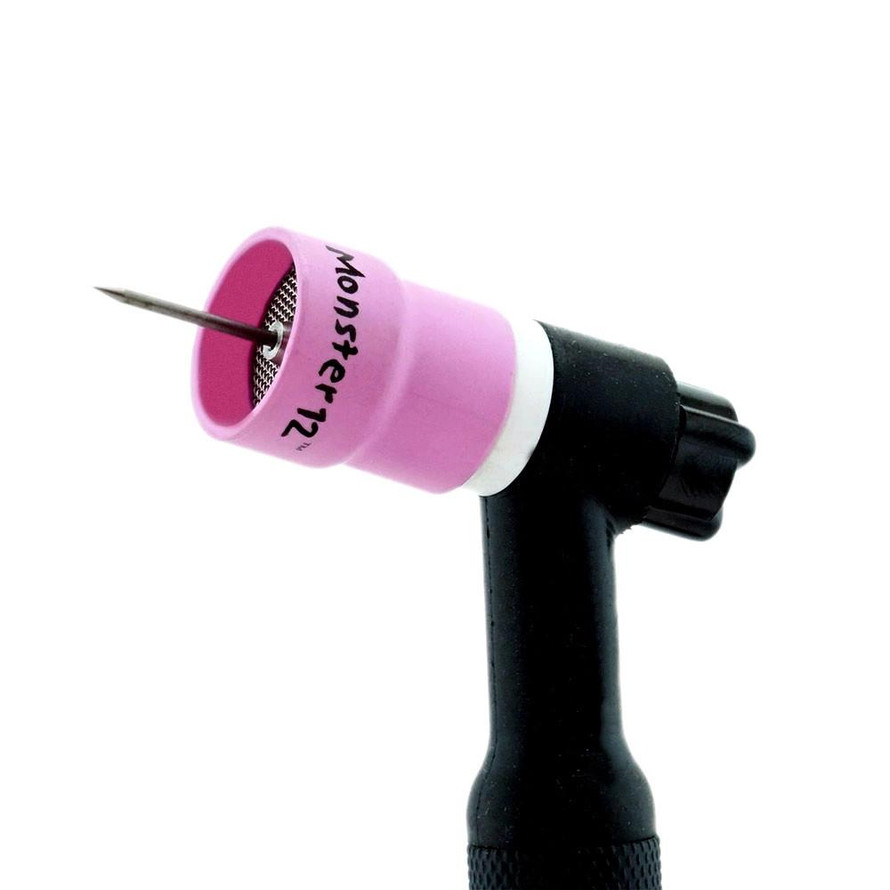

***TIG Torch shown is Not Included and Sold Separately***
Monster™ Cup Best Practices, Set-Up Tips, Do's & Don'ts!
- The Monster™ Cup works best with Arc-Zone's high-quality gas lens collet bodies
- The Monster™ Cup is designed for Argon flow rates between 15-30 CFH (cubic feet hour)
- Do Not Exceed 175 amps for extended periods of time!
- The Monster™ Cup is Not designed for welding with AC current!
- Minimum tungsten stickout of 3/4" (19mm) -- Shorter stickout may result in damage to the screen stack
- Use a medium or short back cap ONLY. (Long back caps are known to trap atmosphere in the top of the cap)
- Do not adjust the positioning, or modify the Screen Stack in any way
Monster™ nozzles are designed for precision TIG welding applications where increased shield gas coverage and tungsten stickout are needed. They are not designed for heavy-industrial pipe welding applications.
Arc-Zone does not make any claims or guarantees of weld-quality improvements, or level of shield gas coverage. Results may vary, due to: weld station set-up, material preparation, gas quality, gas flow rates, flow meter type, gas hose material, welding machine, TIG torch, operator’s torch handling technique, etc.
Compatible with popular TIG torch models including: A125 (WP-9), W250 (WP-20), W280 (CS310) and CK 2 Series.
Have a question? ask our team
(4) Reviews
-
Of all the monster Cups might be the one i use…
Of all the monster Cups might be the one i use the most. works gooddddd..
Thomas P. | Nov 9th 2020
-
Great product / run it daily. Robust design I…
Great product / run it daily. Robust design, I have dropped it once already and it’s still holding up great.
Cory D. | Feb 22nd 2018
-
I use the 12 Monster Nozzle on my CS310 Torch. At…
I use the #12 Monster Nozzle on my CS310 Torch. At first I was skeptical. Now after using it for about two months I am a Believer!!! I always have my Arc-Time Sky Blue Hybrid Tungsten stick out at 3/4" and it just works. The Weld finish always looks Amazing!! HIGHLY RECOMMEND!!
Aaron D. | Jan 12th 2017
-
I've had this nozzle for about a month now...…
I've had this nozzle for about a month now... amazing! This cup is my go-to cup for almost all my everyday tig welding. Works great on most steel and stainless applications. With the new screen stack this cup can weld at much higher amperage than with a scotch brite diffuser. Biggest reason why I like this cup so much is the size. Its not small so the shielding gas area is well covered but its not huge where i cant get it into tighter spots. If you want to see it in action check me out on Instagram @wicked_welding
Wes M. | Dec 2nd 2016
