Optrel Panoramaxx CLT // The Ultimate Welding Helmet

(No reviews yet) Write a Review
SKU:
OPT-1010-200
MPN:
1010-200
Minimum Purchase:
1 unit
$499.00

Description

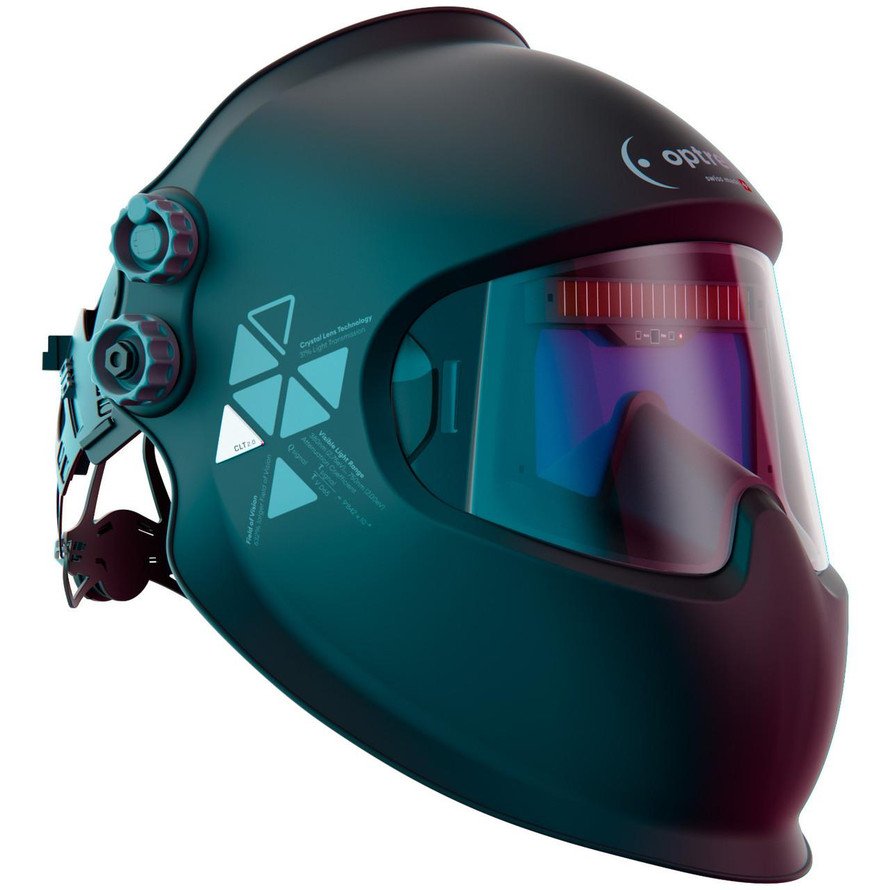

Optrel Panoramaxx CLT Welding Helmet

The Optrel Panoramaxx CLT welding helmet combines the large panoramic field of view with our world leading Crystal Lens Technology.

CLT delivers a brightness level of 2.0 and gives the welder a true-color and detailed view of the weld pool.

Design Features:

  • Crystal Lens Technology 2.0: Now you can clearly see what happens before, during and after welding
  • True-Color View: Like looking through a glass window
  • ShadeTronic®: Automatically adapts to changing light conditions of the welding arc
  • FadeTronic®: Opening of the anti-glare display can be continuously adjusted after welding to significantly reduce eye fatigue
  • Delay Function
  • 5-Point Detection: Intelligent five-sensor control to adjust shade levels even in the most difficult lighting conditions
  • Grinding Mode: The brightest grinding mode vision ever to be offered by a welding helmet
  • Overhead Welding
  • Re-Charge: Lithium-polymer battery is recharged either by light or directly with a USB charger
  • Sensitivity Regulation: Adapts the helmet to your environment and requirements
  • Warranty Extension: Simply register here to be covered for 3 years after purchase

Technical Specifications:

Protection Levels Autopilot Inactive: Protection level 2.0
Active, Manual: Protection level 8-12

Automatic protection level regulation over the protection level range 4 <12M with individual calibration option of ± 2.

Power Supply

Solar cells, Li-polymer battery, can be charged via micro USB cable

Battery Life

300 to 500 charging cycles

Sensors Five Sensors
Sensitivity

Infinitely adjustable, new with “Super High” sensitivity

Switching Time Light to Dark: 0.090ms at room temp, 0.070ms at 55°C
Dark to Light: 0.1 s to 2.0 s (with FadeTronic)
Field of View

Depending on the headband setting, 2.3 to 6.3 times the field of view of a 100 x 50mm industry standard anti-glare cassette

Classification EN379 Optical Class: 1
Stray Light Class: 1
Homogeneity Class: 1
Angle Dependency Class: 2
Field of View

Depending on the headband setting, 2.3 to 6.3 times the field of view of a 100 x 50mm industry standard anti-glare cassette

Dimensional Stability Protective Welding Mask: up to 220°C
Front Lens: Up to 137°C
Eye Protection

Ultraviolet / Infrared Protection: Maximum protection in the entire protection level range

Operating Temperature

-10°C to +55°C / 14°F to 131°F

Storage Temperature

-20°C to +70°C / -4°F to 158°F

Total Weight

600g / 21.2oz (silver 610g / 21.5oz) (PAPR 770g / 780g)

Certifications CE, ANSI, EAC, AS / NZS, meets CSA Z94.3, additionally with PAPR version EN 12941 (TH3) and for the SuppliedAir version EN14594 (3B)
Meets the pr ISO 16321 standards “WIG +” (“low amp Tig “Procedure)
Scope of Delivery Welding helmet, Optrel IsoFit® Headgear, Operating Instructions, Storage Bag, Micro USB Charging Cable, Lens, Warranty Card
Guarantee

2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: click here to registe
