Description

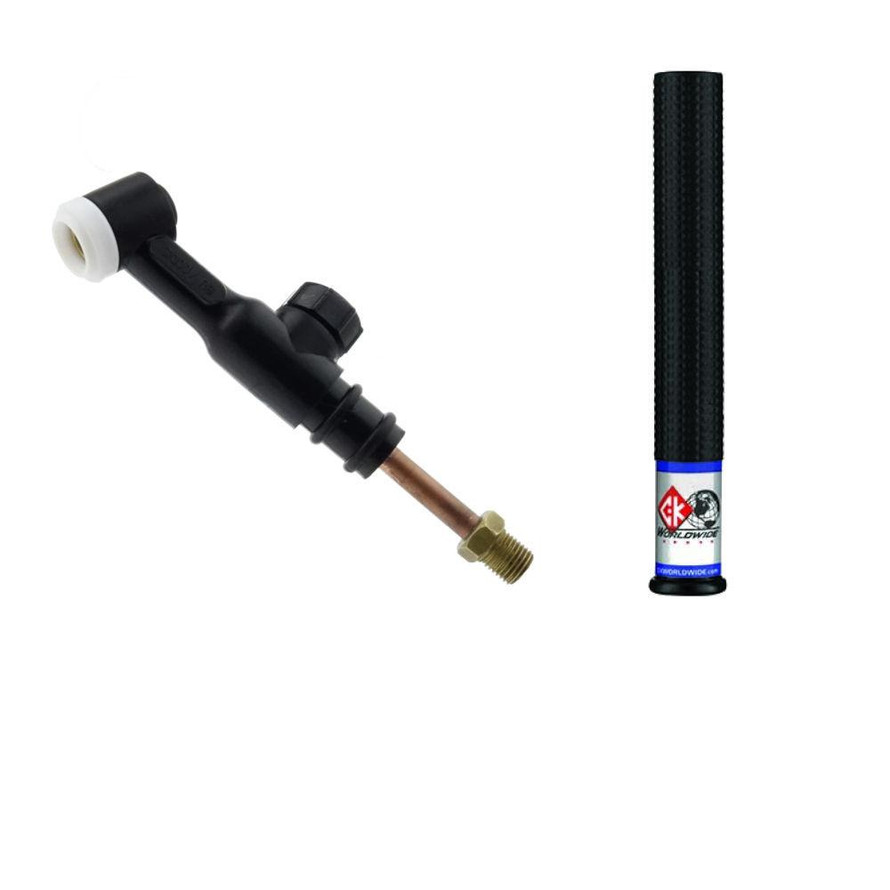

CK-100V

The CK-100V series is a well-balanced, lightweight torch body with built in gas valve for use with TIG machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter. The CK-100V is designed for welding thin gauge materials and is small enough to get into confined areas like tube clusters, tanks, manifolds, and is great for sheet metal repairs etc.

Specifications:	CK-100V
Amperage	125 amp ACHF or DCSP @ 100%
Air-Cooled body	70º head with Gas Valve
Electrode capacity	.020" (.5mm) -- 1/8" (3.2mm)
Head size	2 Series
Torch body weight	1 oz. (28.3g)
Torch length	7.63" (193.8mm)
Handle diameter	3/4" (19.1mm)
Power Connection	Torch: 3/8"-24RH Female	Machine: 3/8"-24RH Female

View AllClose

Specifications

View AllClose

Additional Information

TIG Torch Type:	Gas / Air Cooled
TIG Process:	Hand Held
Torch Model:	9 Style
Amperage Rating:	100 - 130 Amp

View AllClose

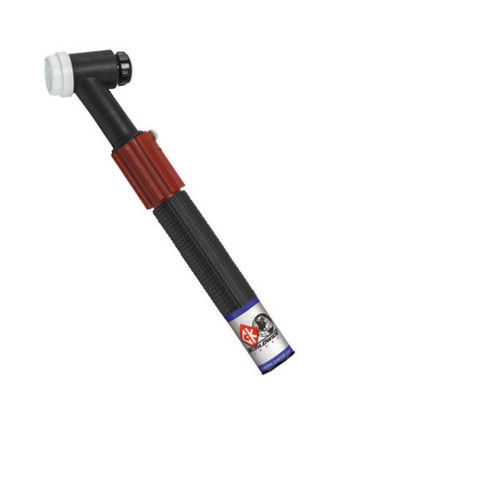

CKC HD Rigid Head 150Amp TIG Torch Body with Valve and Handle
