Description

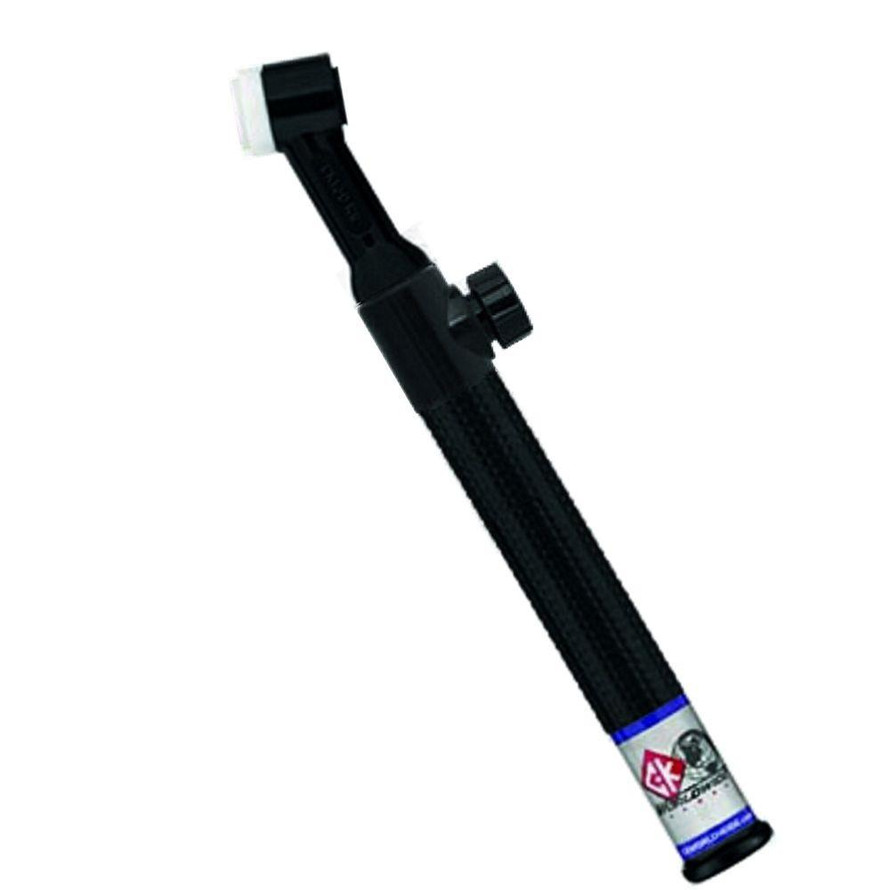

CK-130V RG
2 Series Compact design 130 Amp Air-Cooled TIG Torch Body With Rigid 70o Head and Gas Valve for general purpose welding. The CK-130V RG series is a well-balanced, lightweight torch body.
Torch uses standard 2-Series (9/20 series) front end parts and has a 3/8"-24RH Female power connection which uses standard 150A air-cooled power cables: CK-1512PCSF, CK-1525PCSF, CK-1550PCSF, 57Y01R, 57Y03R, or 57Y03R-L50.
| Specifications: | CK-130V RG | |||
|---|---|---|---|---|
| Amperage | 130 Amp ACHF or DCSP @100% Duty Cycle | |||
| Air-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 1 oz. (28.3g) | |||
| Torch length | 8" (203.2mm) | |||
| Handle diameter | 3/4" (19.1mm) | |||
| Power Connection | Torch: 3/8"-24RH Male | Machine: Gas: 5/8"-18RH Male Nut. Power: Copper Lug | ||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
9 Style
|
|
Amperage Rating:
|
100 - 130 Amp
|
