Description
CK-210 RG

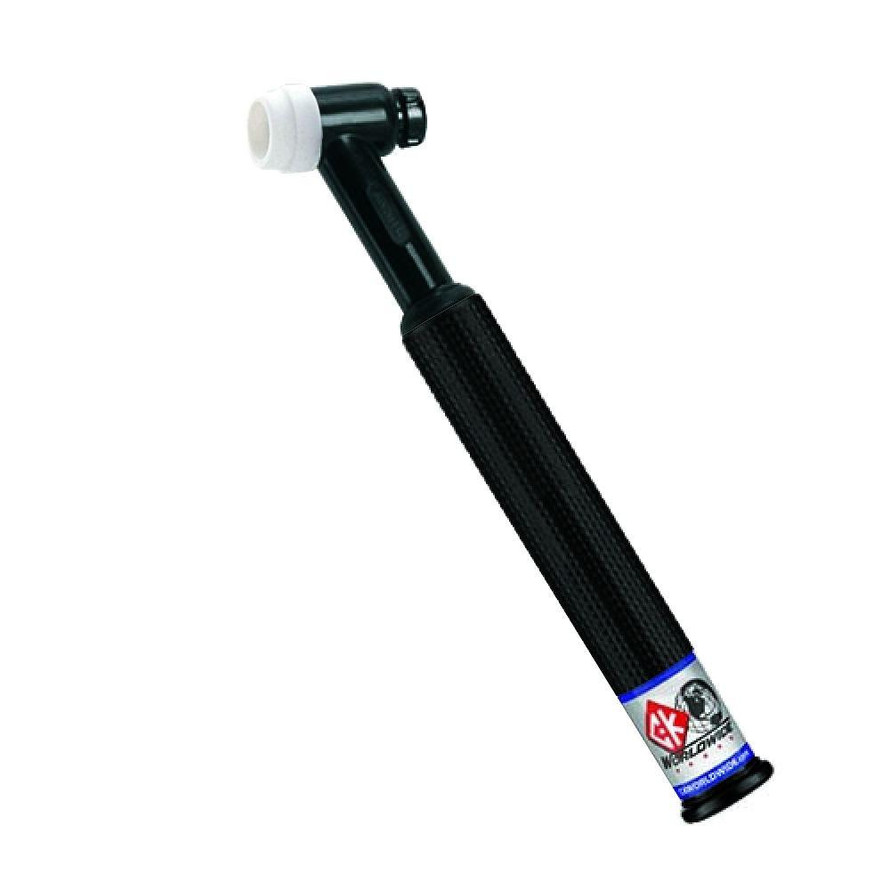

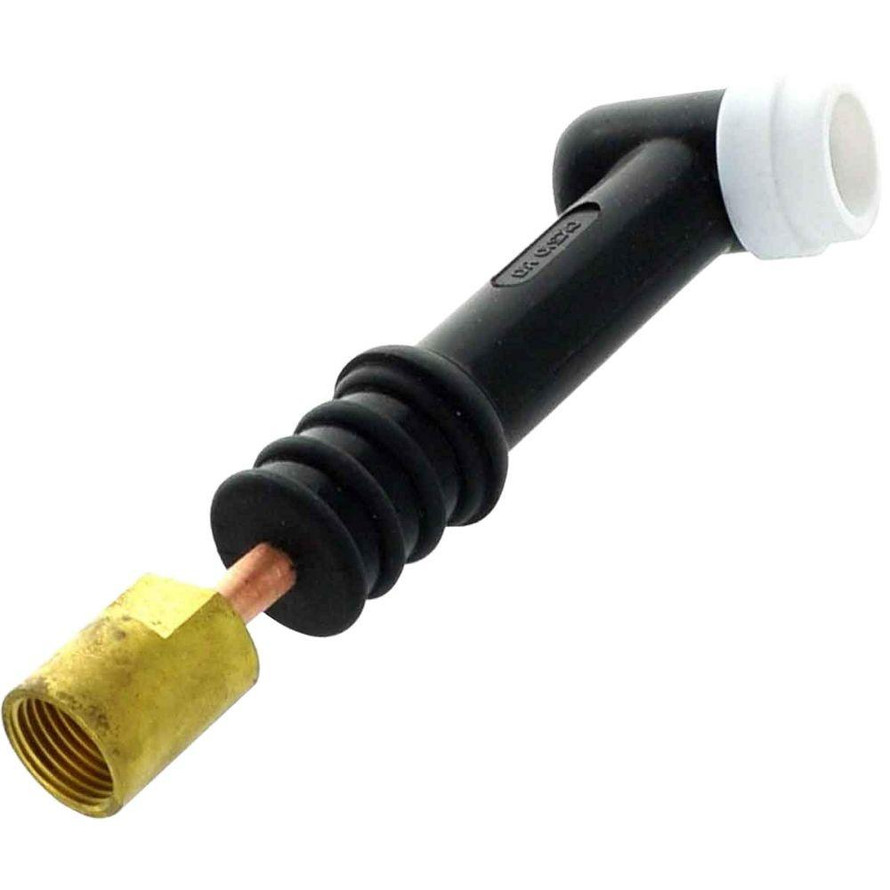

3 Series 200 Amp Air-Cooled TIG Torch Body With 70o Rigid Head for general purpose welding. The CK-210 RG series is a well-balanced, lightweight torch body.
Torch uses standard 3-Series (17/18/26 series) front end parts and has a 3/8"-24RH Female power connection which uses standard 150A air-cooled power cables: CK-1512PCSF, CK-1525PCSF, CK-1550PCSF, 57Y01R, 57Y03R, or 57Y03R-L50.
| Specifications: | CK-210 RG | |||
|---|---|---|---|---|
| Amperage | 200 Amp ACHF or DCSP @100% Duty Cycle. | |||
| Air-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 7.5oz. (212g) | |||
| Torch length | 9.25" (234.9mm) | |||
| Handle diameter | 11/10" (27.9mm) | |||
| Power Connection | Torch: 5/8"-18RH Female | Machine: Gas: 5/8"-18RH Female Nut. Power: Copper Lug | ||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
26 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
