Description

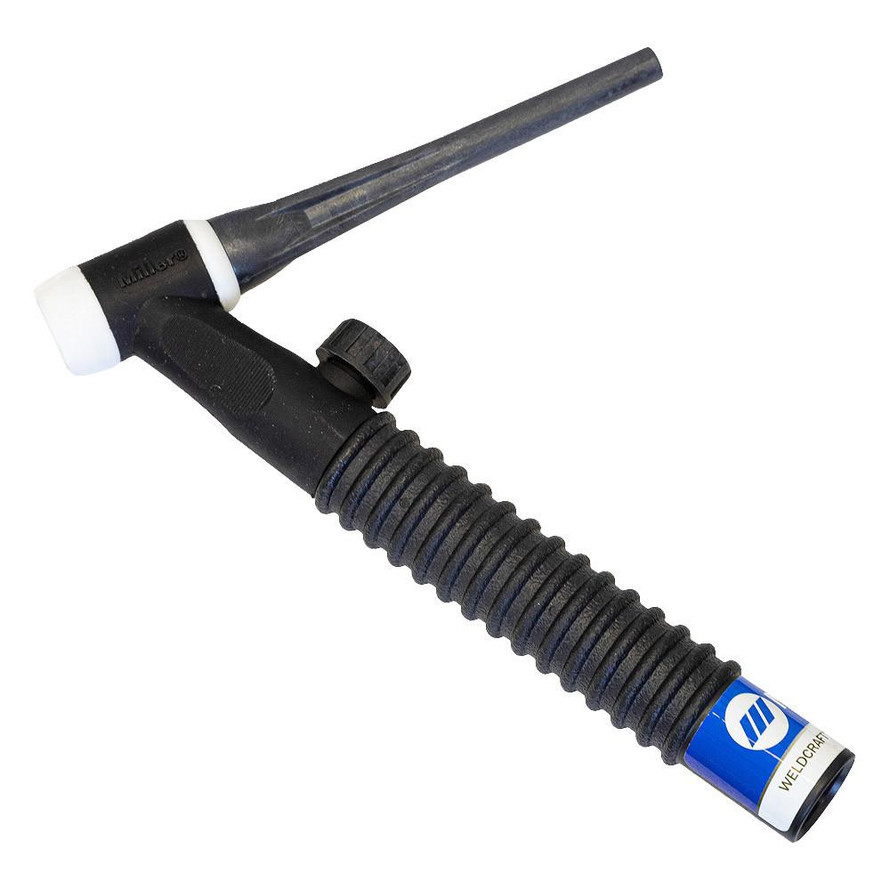

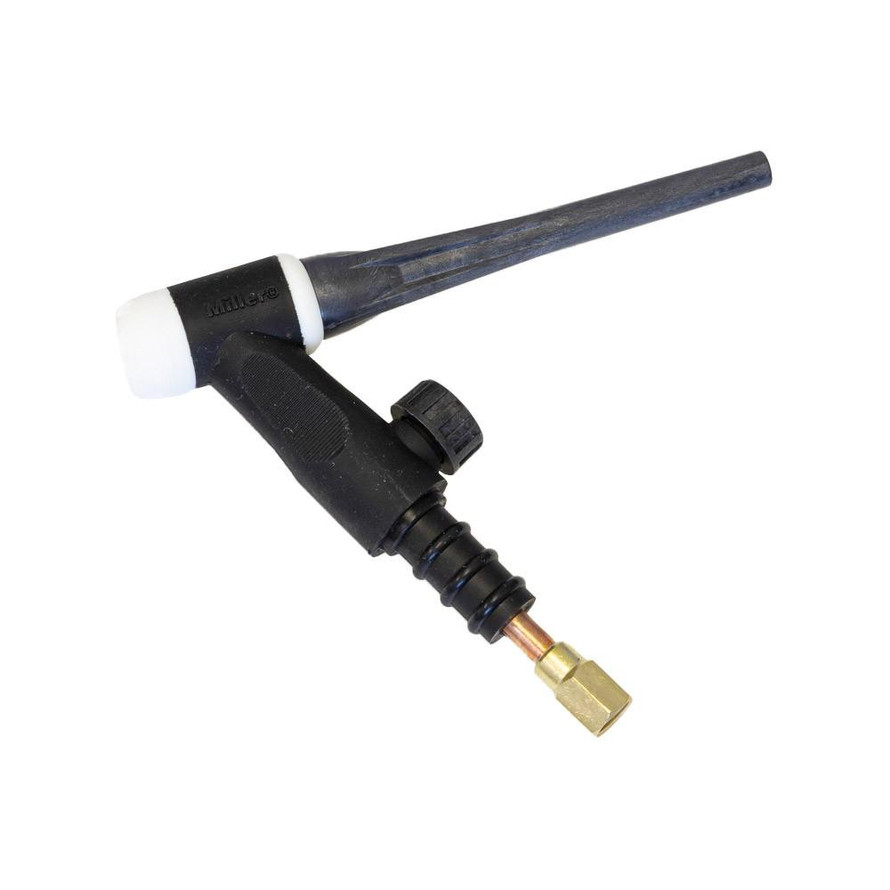

A-150 Valve with Handle (WP-17V-HDL)
General purpose 150 Amp Air-Cooled TIG Torch Body With 70º Rigid Head and built in gas valve for use with TIG machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter. The WP-17 is a well-balanced, general use torch body and is the most common gas-cooled TIG torch in use across the world. Torch includes Handle.
| Specifications: | A-150 Valve and Handle (WP-17V-HDL) | |||
|---|---|---|---|---|
| Amperage | 150A DCSP, 115A ACHF @ 60% Duty Cycle | |||
| Air-Cooled body | 70º Rigid head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 6 oz. (170g) | |||
| Torch length | 7-3/4" (196.8mm) | |||
| Handle diameter | 7/8" (22.2mm) | |||
| Power Connection | Torch: 3/8"-24RH Male | Machine: Gas: 5/8"-18RH Male Nut. Power: Copper Lug | ||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
17 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
