Description

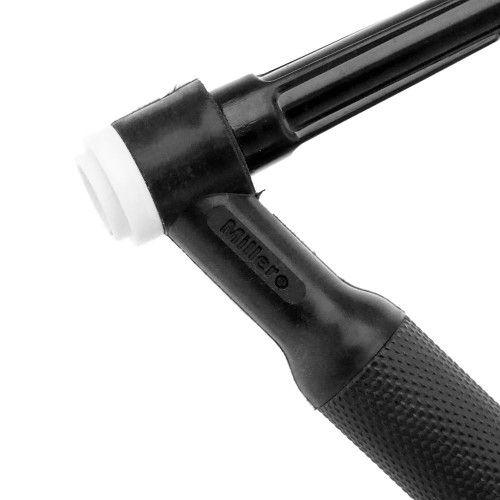

W-250 (WP-20)
250Amp Water Cooled TIG Torch Body, Handle.
The most commonly used water cooled torch in the world.
| Specifications: | W-250 (WP-20) | |||
|---|---|---|---|---|
| Amperage | 250A DCSP or 180A ACHF @ 100% Duty Cycle. | |||
| Water-Cooled body | 70º Rigid Head | |||
| Electrode capacity | .040" (1mm) -- 1/8" (3.2mm) | |||
| Head size | 20 (2-Series) | |||
| Torch body weight | 3 oz. (85g) | |||
| Torch Length | 7" (177.8mm) | |||
| Handle diameter | 3/4" (19.1mm) | |||
| Power Connection | 7/8"-14LH Male | |||
| Gas Connection | 5/8"-18RH Male | |||
| Water Connection | 5/8"-18LH Male | |||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
20 Style
|
|
Amperage Rating:
|
200 - 310 Amp
|
