Description

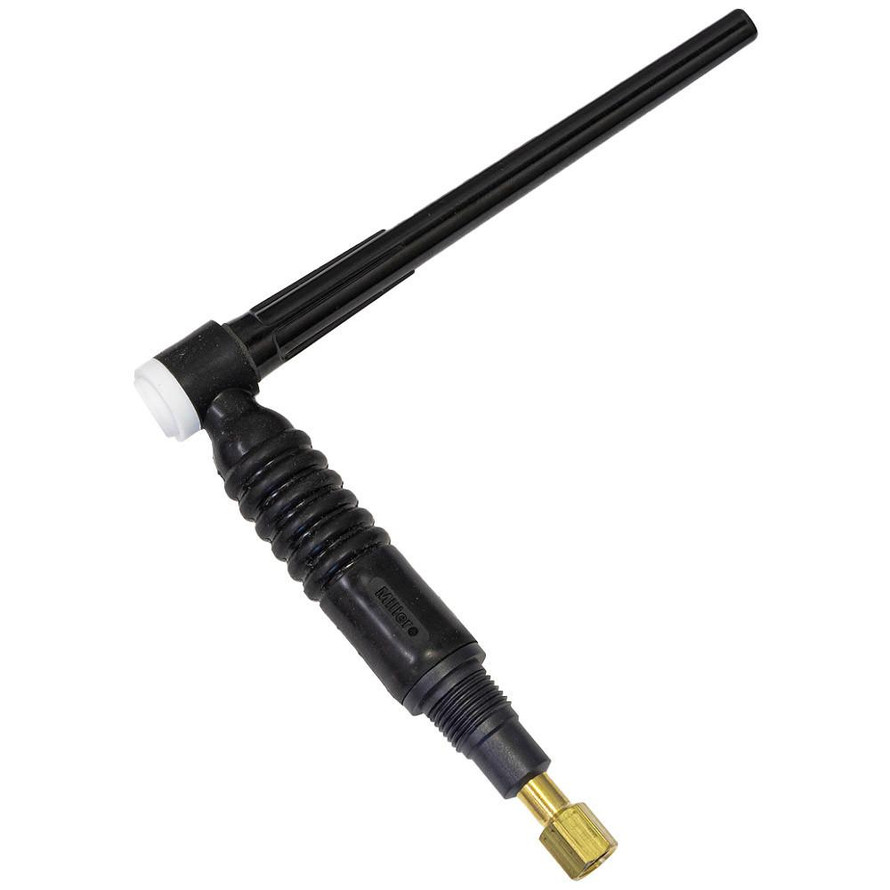

A-125 Flex (WP-9F)
Compact design 125 Amp Air-Cooled TIG Torch Body With Flexible Head for general purpose welding. The WP-9F is a well-balanced, lightweight torch body.
Torch uses standard 2-Series (9/20 series) front end parts and has a 3/8"-24RH Female power connection which uses standard 150A air-cooled power cables: CK-1512PCSF, CK-1525PCSF, CK-1550PCSF, 57Y01R, 57Y03R, or 57Y03R-L50.
| Specifications: | A-125 Flex (WP-9F) | ||
|---|---|---|---|
| Amperage | 125A DCSP, 100A ACHF @ 60% Duty Cycle | ||
| Air-Cooled body | Flexible head | ||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | ||
| Head size | 2 Series | ||
| Torch body weight | 5 oz. (141.7g) | ||
| Torch length | 8" (203.2mm) | ||
| Handle diameter | 7/8" (22.2mm) | ||
| Power Connection | Torch: 3/8"-24RH Male | Machine: 3/8"-24RH Male | |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
9 Style
|
|
Amperage Rating:
|
100 - 130 Amp
|
