Description

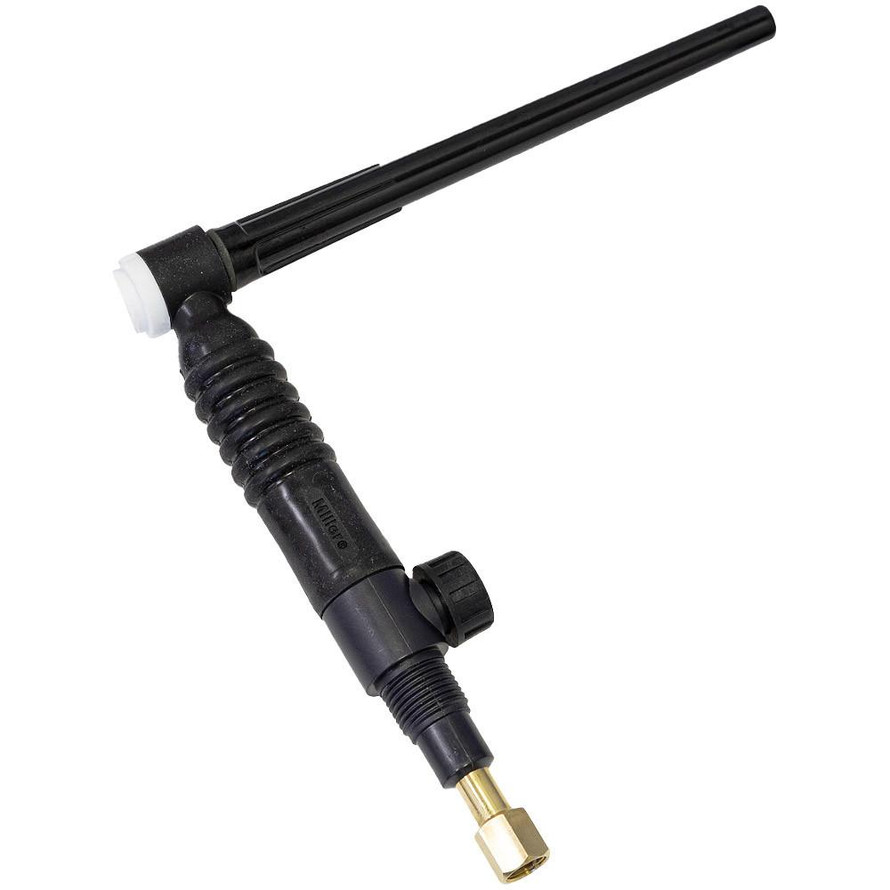

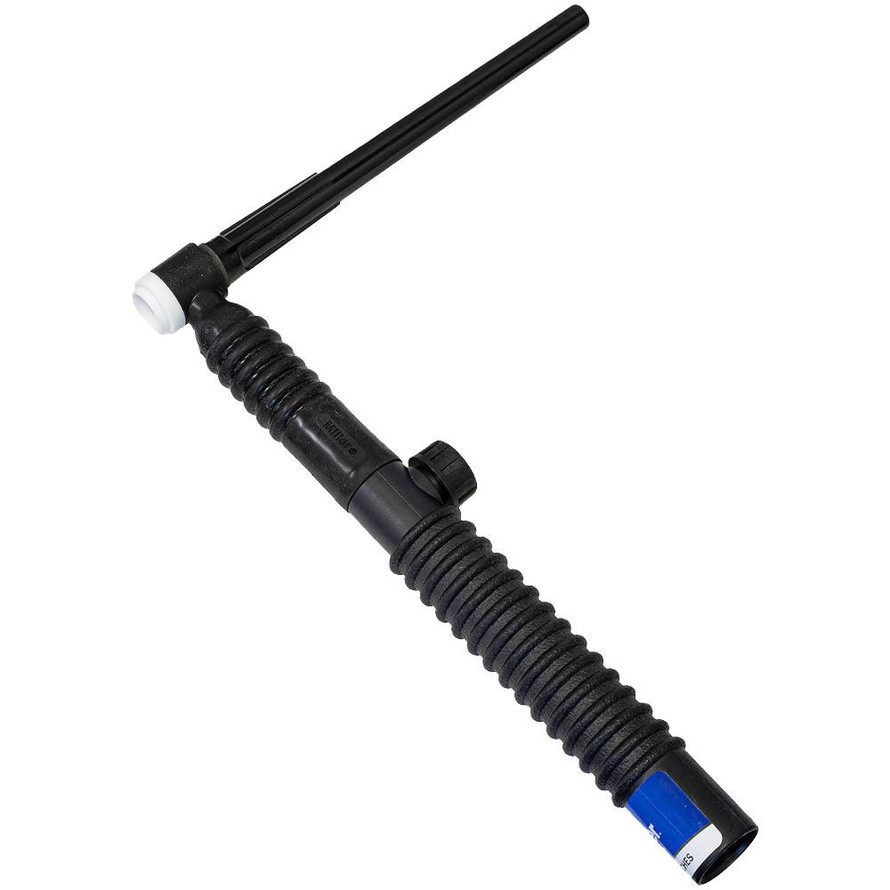

A-125 Flex Valve (WP-9FV)
The WP-9FV is a well-balanced, lightweight torch body with built in gas valve for use with TIG machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter.
The WP-9FV is designed for welding thin gauge materials and is small enough to get into confined areas like tube clusters, tanks, manifolds, and is great for sheet metal repairs etc.
| Specifications: | A-125 Flex Valve (WP-9FV) | |||
|---|---|---|---|---|
| Amperage | 125A DCSP or 100A ACHF @60% Duty Cycle | |||
| Air-Cooled body | Flexible head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 5 oz. (141.7g) | |||
| Torch length | 8" (203.2mm) | |||
| Handle diameter | 7/8" (22.2mm) | |||
| Power Connection | Torch: 3/8"-24RH Male | Machine: 3/8"-24RH Male | ||
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
9 Style
|
|
Amperage Rating:
|
100 - 130 Amp
|
