66-Piece Welding Table Fixturing Kit – 5/8" System

Complete 66-piece modular fixturing kit for clamping, positioning, aligning, and securing workpieces on compatible 5/8" welding tables.
The Fixturing Kit provides a versatile collection of workholding tools designed for welding, metal fabrication, assembly, and precision fixturing applications.

Originally configured for the Strong Hand Tools Rhino Cart system, this kit is also suitable for compatible BuildPro and other 5/8" modular welding tables. It includes essential clamps, locating stops, angle brackets, V-blocks, magnetic supports, and locking fasteners to help organize and secure workpieces during fabrication.

With 66 individual fixturing components, the TDK5100 gives welders a range of workholding options without requiring each accessory to be purchased separately.

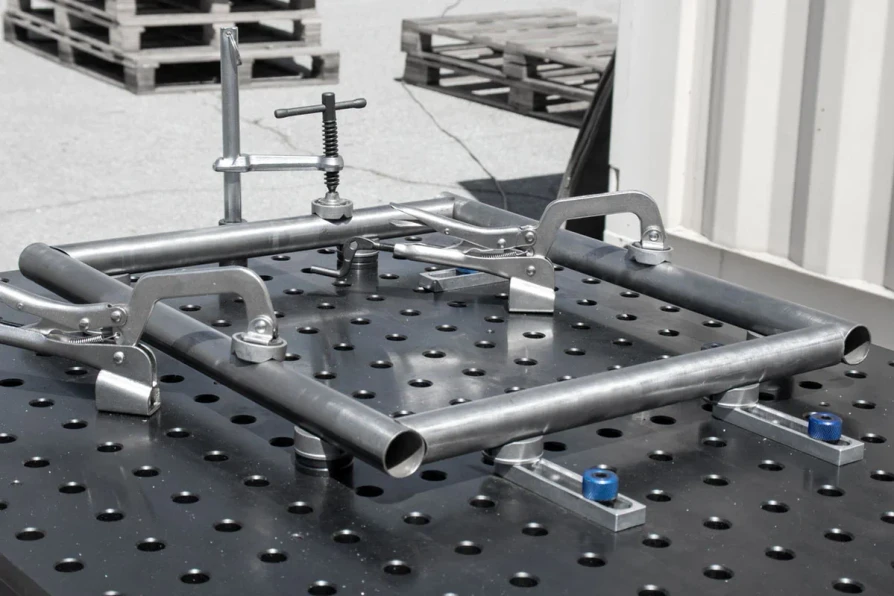

Whether you're building square frames, positioning round tubing, holding structural components, or setting up repeatable welding fixtures, this kit provides the tools needed for a flexible fabrication workstation.

Important: This listing includes the 66-piece fixturing kit only. The Rhino Cart, BuildPro welding table, and workpieces shown in application photos are not included.

Key Features

• Complete 66-Piece Kit: Includes a selection of clamps, pliers, stops, brackets, V-blocks, magnetic supports, and locking fasteners.
• 5/8" Fixturing System: Designed for compatible welding tables with 5/8" fixturing holes.

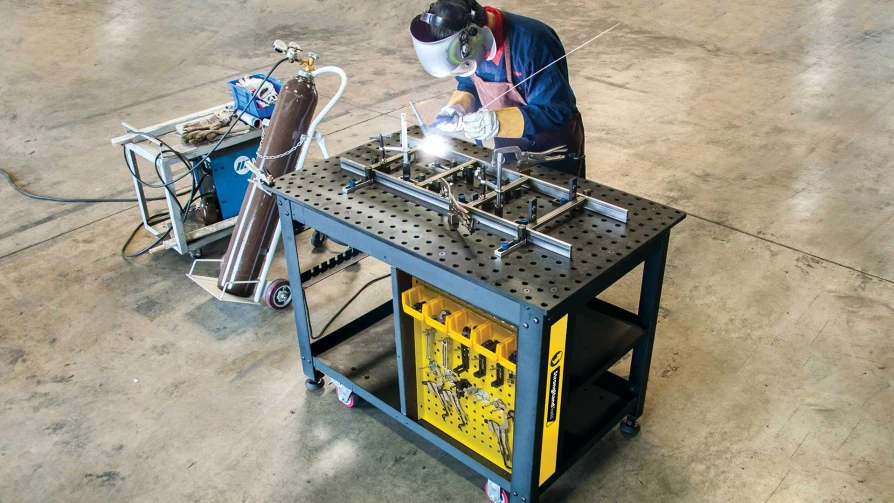

• Rhino Cart Compatibility: Expands the workholding capabilities of the Strong Hand Tools Rhino Cart mobile welding workstation.
• BuildPro Compatibility: Suitable for compatible BuildPro modular welding tables using the 5/8" system.
• Inserta Clamps: Allow workpieces to be secured directly to the fixturing table.
• Inserta Pliers: Provide additional clamping options for holding components in position.
• Side Clamps: Apply horizontal clamping force for various workpiece arrangements.
• Universal Ball Lock Bolts: Secure compatible fixturing accessories to the welding table or to other accessories.
• Right Angle Brackets: Help position and support components during perpendicular or angled assembly.
• Locating Stops: Provide repeatable reference points for workpiece positioning.
• V-Blocks and Spacers: Support round tubing, pipe, and other cylindrical workpieces.
• Magnetic Supports: Offer additional workpiece support and positioning options.
• Modular Design: Accessories can be repositioned for different fabrication projects and fixture layouts.

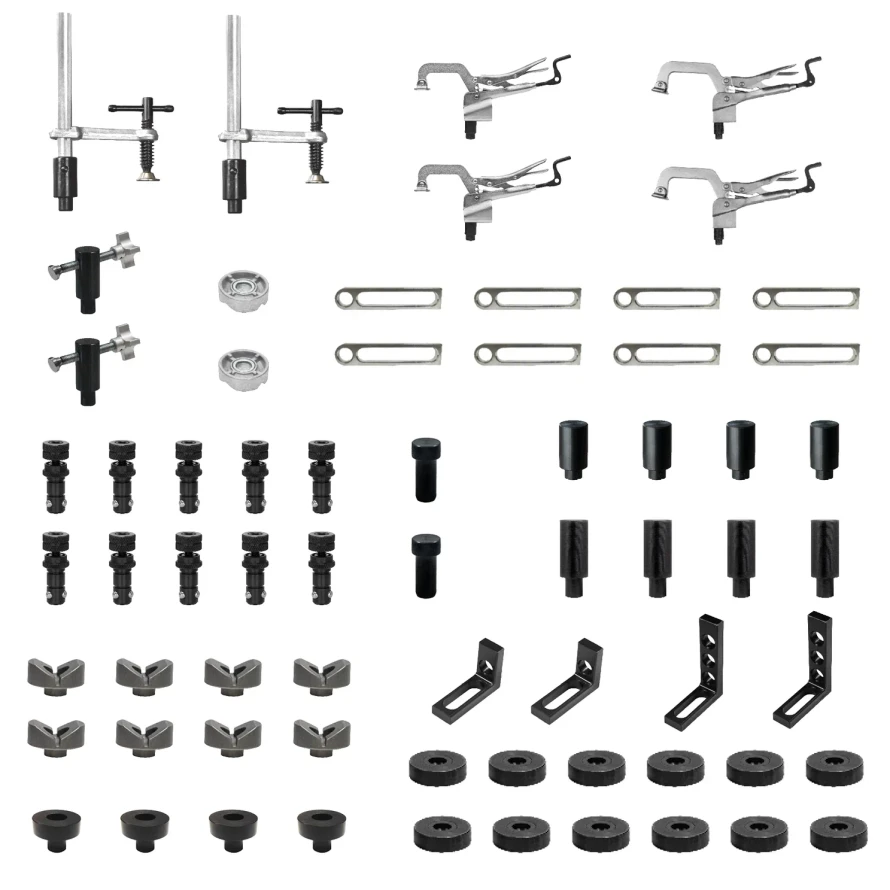

What's Included? – Complete 66-Piece Fixturing Kit

The TDK5100 includes 15 different types of clamping and fixturing components, totaling 66 individual pieces.

Total: 66 Pieces

Please Note: The included universal ball lock bolts are part number T55057, as specified in the current Strong Hand Tools kit contents.

Expand Your Welding Table's Fixturing Capabilities

A modular welding table provides a flexible working surface, but the right accessories are what make it possible to secure workpieces in different positions.

The Strong Hand Tools TDK5100 provides a collection of fixturing components for holding, locating, and supporting materials during welding and assembly.

Instead of building a separate fixture for every project, compatible clamps, stops, brackets, and support components can be arranged using the table's existing 5/8" hole pattern.

This allows the same welding table to accommodate different workpiece sizes, shapes, and fabrication requirements.

Inserta Clamps and Inserta Pliers

The TDK5100 includes two Inserta Clamps and four Inserta Pliers in two configurations.

These tools provide convenient workholding options for securing components directly to the welding table or within compatible fixturing arrangements.

The Inserta Clamps are useful for applying downward holding force, while the Inserta Pliers provide additional flexibility when working with different material shapes and positions.

For fabrication projects involving multiple components, using several clamps helps maintain alignment while parts are being tack welded or assembled.

Side Clamps for Horizontal Workholding

Two TCX5210 Side Clamps are included to provide horizontal clamping options.

Side clamps are useful when positioning a workpiece against a stop, angle bracket, or another fixturing component.

They can help maintain contact between mating components during layout, fitting, and assembly.

Universal Ball Lock Bolts

The kit includes 10 T55057 Universal Ball Lock Bolts designed for compatible 5/8" fixturing systems.

These fasteners allow fixturing accessories to be secured to the tabletop or connected to other compatible components.

The ball lock mechanism uses locking steel balls that engage beneath the fixturing surface as the fastener is tightened.

The T55057 also features an adjustable sliding shoulder bushing for compatible fixturing configurations.

Ball lock bolts allow accessories to be repositioned and secured without requiring access beneath the welding table for a conventional nut-and-bolt connection.

Locating Stops and D-Stop Bars

The TDK5100 includes locating pins, round stops, and aluminum D-Stop Bars for establishing workpiece reference points.

These components are useful for:

• Positioning material against a fixed reference
• Maintaining repeatable part locations
• Aligning workpieces before tack welding
• Creating temporary positioning fences
• Supporting different fixturing arrangements

By establishing consistent workpiece locations, the included stops and bars help make repeated setups easier to organize.

Right Angle Brackets for Fabrication and Assembly

The kit includes two T50304 and two T50305 Right Angle Brackets.

These brackets provide support and reference surfaces for positioning components during frame fabrication and other assembly work.

They are especially useful when working with square tubing, structural components, and fabricated frames that require perpendicular alignment.

When used with compatible clamps and fasteners, the brackets help hold the workpiece in position while the assembly is prepared for welding.

V-Blocks and Magnetic Supports

Round tubing and pipe can be difficult to position securely on a flat welding table.

The TDK5100 includes eight V-Blocks, four V-Block Spacers, two Magnetic V-Clamp Pads, and twelve Magnetic Rest Buttons to provide additional positioning and support options.

V-Blocks help cradle round workpieces, while the spacers allow compatible components to be elevated or arranged as needed.

Magnetic accessories provide additional temporary positioning and support options when working with suitable ferromagnetic materials.

Compatible Welding Tables

The TDK5100 is designed for Strong Hand Tools Rhino Cart workstations and compatible modular welding tables with 5/8" fixturing holes.

Compatible applications include:

• Strong Hand Tools Rhino Cart 5/8" Fixturing System
• Compatible Strong Hand Tools BuildPro 5/8" Welding Tables
• Other compatible modular welding tables using 5/8" fixturing holes

Compatibility Note: Verify the welding table's hole diameter, tabletop thickness, and individual accessory requirements before ordering. A 16mm fixturing system should not automatically be treated as interchangeable with a 5/8" system.

Designed for Repeatable Fabrication Setups

When building multiple similar parts or welded assemblies, consistent workpiece positioning can help reduce setup time between projects.

The combination of clamps, stops, brackets, and fixturing fasteners allows operators to create temporary workholding arrangements that can be adjusted for different jobs.

This makes the TDK5100 useful for both custom fabrication and repeated production setups.

Common Applications

• TIG welding and fabrication
• MIG welding and fabrication
• Rhino Cart workstation fixturing
• BuildPro welding table setups
• Square tubing fabrication
• Round tubing and pipe positioning
• Frame fabrication and assembly
• Metal component alignment
• Custom welding fixtures
• Prototype fabrication
• Repeatable production setups
• Industrial maintenance and repair
• General metalworking and assembly

Frequently Asked Questions

What is the Strong Hand Tools TDK5100?
The TDK5100 is a 66-piece welding table fixturing kit designed for compatible 5/8" modular welding table systems.

How many pieces are included?
The kit contains 66 individual fixturing components, including clamps, pliers, stops, brackets, V-blocks, magnetic supports, and locking fasteners.

Does the kit include a Rhino Cart?
No. The Rhino Cart is sold separately. This listing includes the 66-piece fixturing kit only.

Can I use the kit with BuildPro welding tables?
Yes. The kit is suitable for compatible BuildPro welding tables using the 5/8" fixturing system.

What size table holes are required?
The kit is designed for compatible 5/8" fixturing holes. Confirm your table's specifications before ordering.

What types of clamps are included?
The kit includes 2 Inserta Clamps, 2 Side Clamps, 2 PTT522K Inserta Pliers, and 2 PTT634K Inserta Pliers.

Are ball lock bolts included?
Yes. The kit includes 10 T55057 Universal Ball Lock Bolts.

Can the kit be used for round tubing and pipe?
Yes. The included V-Blocks, V-Block Spacers, and magnetic supports provide options for positioning compatible round workpieces.

Are right angle brackets included?
Yes. The kit includes 2 T50304 and 2 T50305 Right Angle Brackets for workpiece positioning and support.

Can I use this kit for repeated fabrication projects?
Yes. The modular clamps, stops, and locating components allow operators to establish and adjust workpiece positions for repeated setups.

Can I purchase replacement fixturing components separately?
The kit uses individually identified Strong Hand Tools part numbers, making it easier to identify the specific component requiring replacement. Check availability for individual replacement accessories.

Does the kit include a welding table?
No. The welding table, Rhino Cart workstation, and workpieces are not included.

What is the Arc-Zone SKU?
The Arc-Zone part number is SHT-TDK5100.
