Description

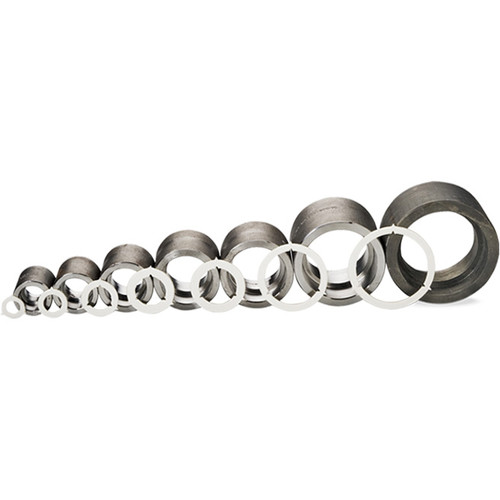

SoluGap Compatible with Any Metal (Select Size from Options Above)
The specially engineered, patented design of SoluGap offers an economical, inventive solution to socket welding needs. Compatible with any metal, SoluGap provides the 1/8″ (3.2 mm) minimum gap required by ANSI 31.1, Section III, ASME, US Navy and Military Codes, eliminating the need for pre-measuring and guesswork. SoluGap is also available in 1/16ʺ (1.6 mm) thickness.
SoluGap features a unique 3-tabbed edge design that allows the spacers to remain secure in any pipe orientation. SoluGap is U.S. manufactured and comprised of Aquasol’s environmentally safe, water soluble composite board. It dissolves completely and rapidly in most liquids, allowing for easy post-weld clean up.
Available in a variety of sizes ranging from 1/2ʺ to 2 1/2ʺ in diameter, SoluGap is easy to install and ready to use, providing the smartest solution to your socket welding needs. Made in the USA.
Revolutionary Design
- Made of eco-friendly Aquasol® Water Soluble Composite Board, SoluGap is compatible with any metal
- Eliminates the need to inventory multiple grades of metal spacers or the time consuming task of scribing, measuring and fitting
- Provides a uniform, precise 1/8″ (3.2 mm) minimum gap required by ANSI 31.1, Section III, ASME, US Navy and Military codes. 1/16ʺ (1.6 mm) thickness also available.
- Unique 3-point tabs secure placement regardless of pipe orientation
- Hollow center enables viewing during welding
- Unlike metal spacers, will not corrode or break
- Dissolves rapidly and completely in water; allowing for easy post weld clean up
Increases Efficiency and Savings
- Time and labor intensive tasks of scribing, measuring and fitting are completely eliminated
- Weld accuracy is dramatically improved vs. manual processes
- Eliminate and reduce cracked welds, saving money on costly repairs and replacement material
Types & Sizes:
| Part # | Diameter | Thickness | Packaging |
|---|---|---|---|
| AQS-SGP-0.5-2 | 1/2" (13mm) | 1/8" (3.3mm) | 50 pcs/bag |
| AQS-SGP-0.75-2 | 3/4" (19mm) | 1/8" (3.3mm) | 50 pcs/bag |
| AQS-SGP-1.0-2 | 1" (25mm) | 1/8" (3.3mm) | 50 pcs/bag |
| AQS-SGP-1.25-2 | 1-1/4" (32mm) | 1/8" (3.3mm) | 50 pcs/bag |
| AQS-SGP-1.50-2 | 1-1/2" (38mm) | 1/8" (3.3mm) | 50 pcs/bag |
| AQS-SGP-1.75-2 | 1-3/4" (44mm) | 1/8" (3.3mm) | 50 pcs/bag |
| AQS-SGP-2.0-2 | 2" (51mm) | 1/8" (3.3mm) | 50 pcs/bag |
| AQS-SGP-2.5-2 | 2-1/2" (64mm) | 1/8" (3.3mm) | 50 pcs/bag |
