Strong Hand Tools® BuildPro™ MAX 4' × 4' Welding Table with Standard Finish (Select Leg Style)

A continuous work surface built for serious fabrication.
The Strong Hand Tools® BuildPro™ MAX 4' × 4' Welding Table delivers the strength, precision, and flexibility professional fabricators demand. Unlike standard BuildPro™ tables, the MAX Series features a seamless tabletop with no spacing between plates, creating a larger uninterrupted work surface for fixtures, assemblies, and production welding.

Its reinforced frame and precision-machined 5/8" fixturing holes provide outstanding rigidity and repeatability while remaining fully compatible with the complete line of BuildPro™ clamps and accessories.

This model features the Standard Finish. If your application requires additional resistance to weld spatter, corrosion, and wear, consider the BuildPro™ MAX Nitride Finish version.

Why Fabricators Choose BuildPro™ MAX

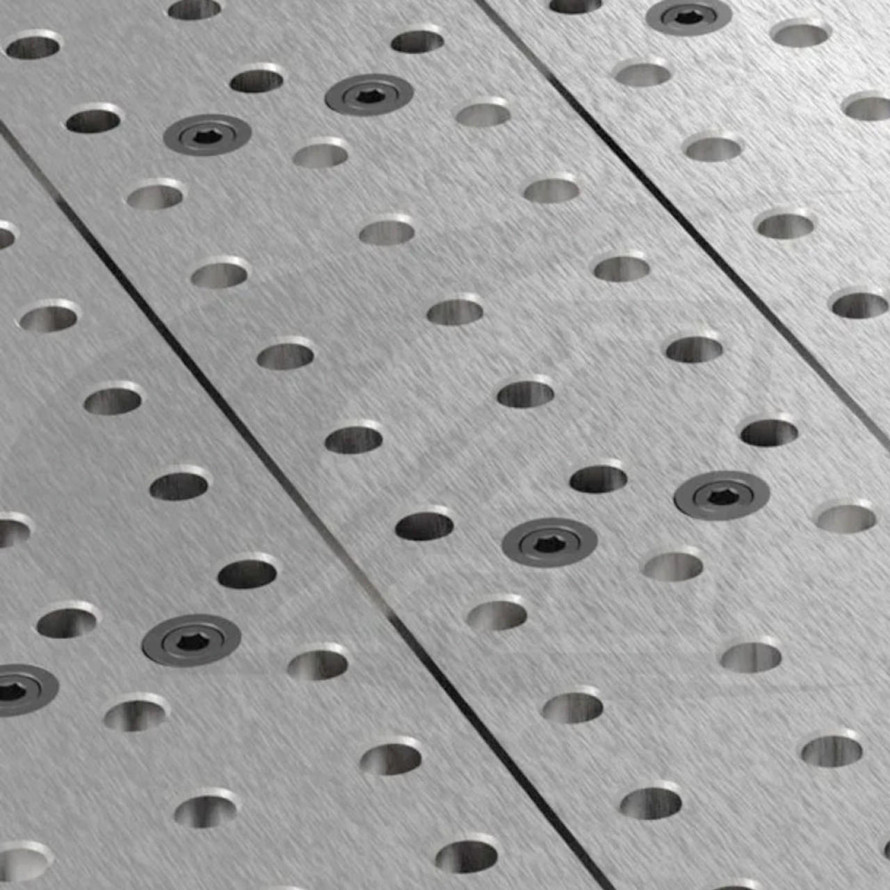

  • Continuous Tabletop: No gaps between plates for maximum usable work surface.
  • Reinforced Frame: Designed for larger weldments and demanding fabrication work.
  • Professional Fixturing: Precision 5/8" hole pattern for accurate, repeatable setups.
  • Modular System: Compatible with the complete BuildPro™ accessory lineup.

Key Features

  • 48" × 48" continuous steel tabletop
  • 5/8" thick precision steel plate
  • 5/8" fixturing holes

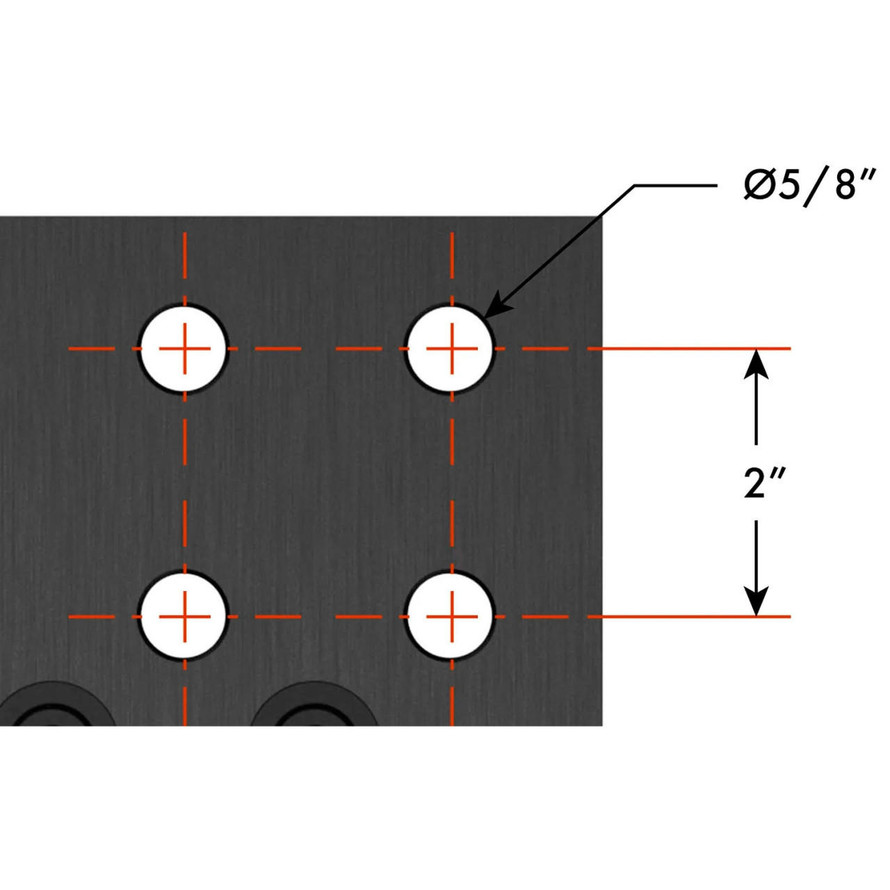

  • 2" × 2" hole grid pattern
  • Heavy-duty MAX Series frame construction
  • Compatible with all BuildPro™ 5/8" clamps and fixturing accessories
  • Designed for production welding, fabrication, and assembly

Available Leg Styles

Part Number Leg Style Table Height Capacity Per Leg Weight
SHT-TMA54848F 30-1/4" Fixed with Leveling Pads 36.5" 1,500 lbs (680 kg) 720 lbs (327 kg)

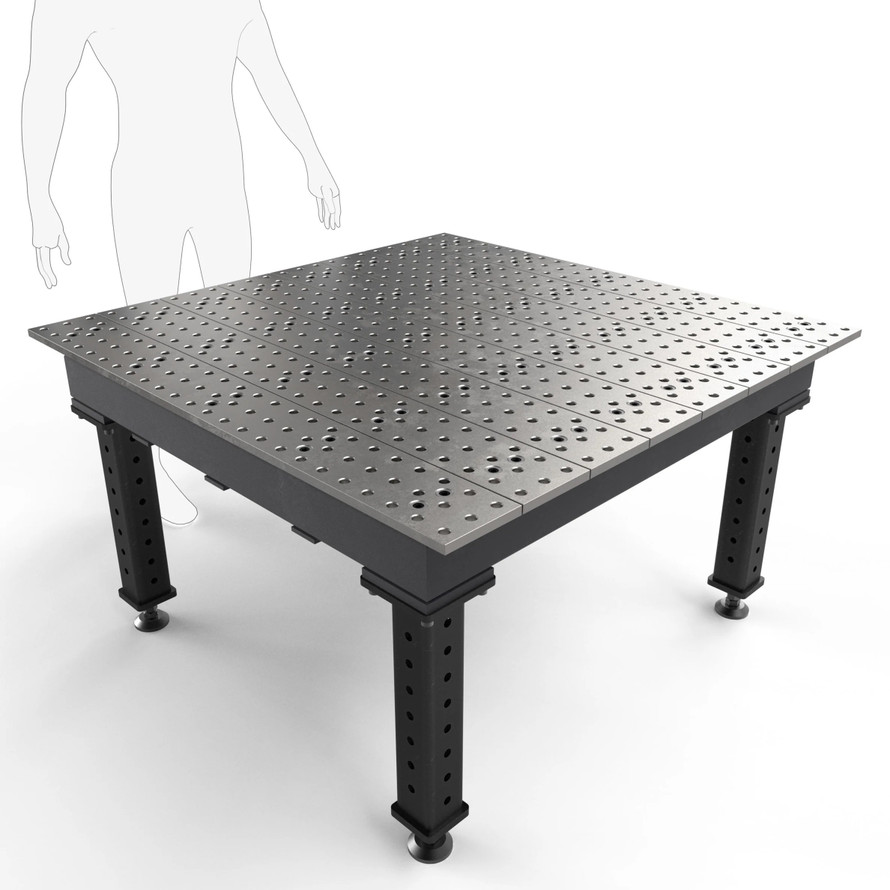

SHT-TMB54848F 24-1/4" Fixed with Leveling Pads 30.5" 1,500 lbs (680 kg) 710 lbs (322 kg)

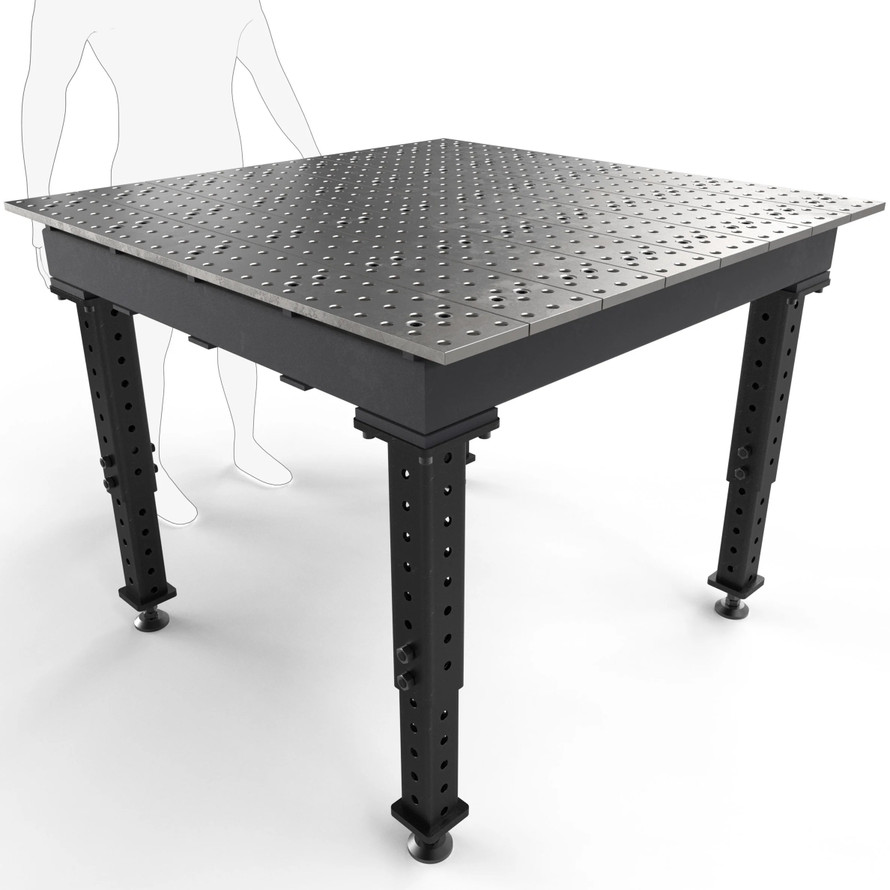

SHT-TMR54848F 22-1/4"–32-1/4" Adjustable with Leveling Pads 28.5"–38.5" 1,500 lbs (680 kg) 728 lbs (330 kg)
SHT-TMRC54848F 27"–37" Adjustable with Locking Casters 33.25"–43.25" 650 lbs (295 kg) 750 lbs (340 kg)

Standard Finish

This model features the standard steel finish and does not include the BuildPro™ Nitride Finish. If you need increased resistance to weld spatter, corrosion, and wear, the nitrided version is available separately.

Ideal For

  • Large fabrication projects
  • Production welding
  • Fixture building
  • Heavy industrial fabrication
  • Automotive and chassis fabrication
  • Manufacturing environments
  • Educational welding facilities

Shipping Information

  • FREE Freight Shipping within the Contiguous United States.
  • International customers are responsible for all freight charges, taxes, and import fees.
  • Residential freight deliveries typically require a $75 lift-gate and delivery appointment fee charged by the carrier.

Frequently Asked Questions

What makes the BuildPro™ MAX different from the standard BuildPro™ table?
The MAX Series features a continuous tabletop with no gaps between plates, creating a larger uninterrupted work surface and a reinforced frame for larger fabrication projects.

What is the difference between the Standard Finish and Nitride Finish?
The Standard Finish offers the same precision tabletop and fixturing capabilities but does not include the nitriding treatment that improves resistance to weld spatter, corrosion, and wear.

What accessories fit this table?
The table is fully compatible with all BuildPro™ 5/8" clamps, stops, brackets, and fixturing accessories.

Can I choose different leg styles?
Yes. Select from fixed, low-profile fixed, adjustable, or adjustable legs with locking casters.

Can the table be moved around the shop?
Yes. The adjustable caster-leg model provides excellent mobility while locking securely in place during fabrication.

  • Table Flatness

    ±0.005 per 24″ x 24″
  • Hole Spacing

    2.000″ ±0.001
  • Hole Diameter

    0.625″ +.002/-.000
  • Plate Thickness

    0.630″ ±0.004
