Description
W-310 (CS310)

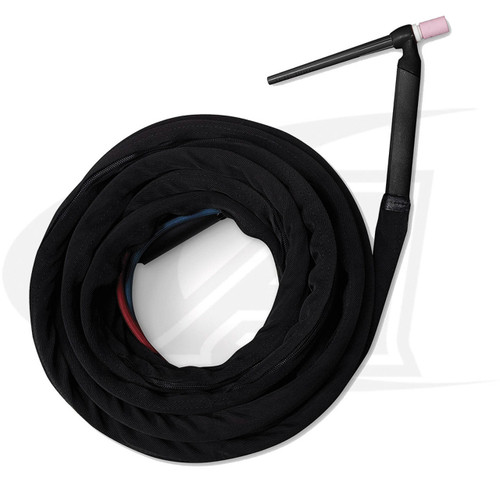

Weldcraft® by Miller® Crafter Series™ W-310 (CS310) is a premium 310 Amp, liquid-cooled TIG torch that uses standard 9/20 (2 Series) parts. Crafter Series torches are designed for higher amperage general purpose welding applications. The CS310 series is a well-balanced, lightweight torch body with an ergonomic "D" shaped, self indexing handle engineered for comfort and performance.
| Specifications: | W-310 (CS310) | |||
|---|---|---|---|---|
| Amperage | 310 DCSP maximum, 100% duty cycle | |||
| Water-cooled body | 70º head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 9 / 20 (2 Series) | |||
| Torch body weight | 3 oz. (85g) | |||
| Torch length | 7" (177.8mm) | |||
| Handle diameter | 7/8" (22.2mm) Self-Indexing, flat-top | |||
| Water flow | 1qt./min. (0.946 L/min.) | |||
| Maximum pressure | 50 psi (3.448 BAR) | |||
| Power Connection | Torch: 1/4"- 28 RH | Machine: 7/8" - 14 LH Male | ||
| Gas Connection | Torch: 7/32" - 28 RH | Machine: 5/8" - 18 RH Male | ||
| Water Connection | Torch: 1/4"- 28 RH | Machine: 5/8" - 18 LH Male | ||
| Part # | CS310A | CS310-HDL | CS310-12 | CS310-25 |
| Handle | N/A | CS110-H | CS110-H | CS110-H |
| Cable Type | N/A | N/A | Super Flex Braided Rubber | Super Flex Braided Rubber |
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
20 Style
|
|
Amperage Rating:
|
200 - 310 Amp
|
