Description

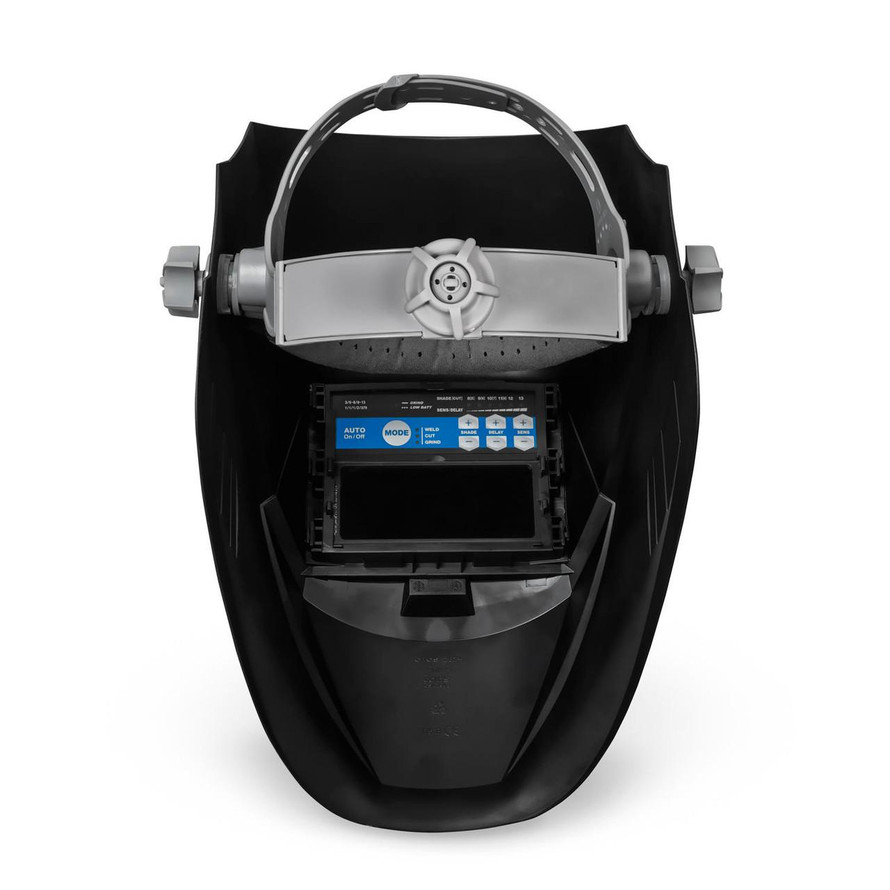

Miller's Classic Series Auto-Darkening Welding Helmet
- ClearLight™ Lens Technology provides advanced high-definition optics for precise arc recognition.
- Two Independent Arc Sensors (three on VSi) provide dependable arc detection.
- VSi™ features X-Mode which electromagnetically senses the weld to reduce sunlight interference and continuously detects the arc even if sensors are blocked.
- VSi and FS#10 Flip-Up feature integrated grinding shields. Provides impact protection and a clear view for grinding.
- Auto-On/Off power control triggers lens at the strike of an arc.
- Adjustable Sensitivity allows operator to adjust lens sensitivity for varied lightning conditions and weld amperage.
Specifications:
Viewing Area |
FS#10 Flip-Up: 5.07 sq. in. (32.71 sq. cm) VS:6 sq. in. (38.71 sq. cm) VSi: 5.9 sq. in. (37.94 sq. cm) |
---|---|
Operating Modes & Shades |
FS#10 Flip-Up: Weld (10), Grind Shield VS: Weld (8-13), Cut (5-8), Grind (3) VSi: Weld (8-13), Grind Shield, X-Mode (8-13) (FS#10 Flip-Up and VSi have integrated grind shields) |
Switching Speed |
FS#10 Flip-Up: 1/3,600 sec VS: 1/23,000 sec VSi: 1/20,000 sec |
Light State |
3.0 |
Sensors |
FS#10 Flip-Up: 2 VS:2 VSi:3 |
TIG Rating |
FS#10 Flip-Up: 20 Amps VS: 5 Amps and below VSi: 5 Amps and below |
Weight |
FS#10 Flip-Up: 14 oz. (396g) VS: 16 oz. (454g) VSi: 23 oz. (652g) |
Certifications |
ANSI z87.1+, CSA, CE |
Choosing Welding Helmets and Goggles: PDF
We think you will find it interesting and informative!
