Description
JWS-SS250W-FL
Compact and Powerful Water-cooled, 250Amp Flex-Loc™ 360o Variable Head Angle Torch Package.
Arc-Zone Pro Series™ TIG packages are the ultimate weapon for precision TIG welding.
Each kit is built with Genuine CK Worldwide® MasterTIG Series torches combined with best of breed components assembled by the TIG welding experts at Arc-Zone.
Kits are RTW™ (Ready-to-Weld™) with premium front-end parts installed. With this kit, you'll be Ready to Weld Like-A-Pro!

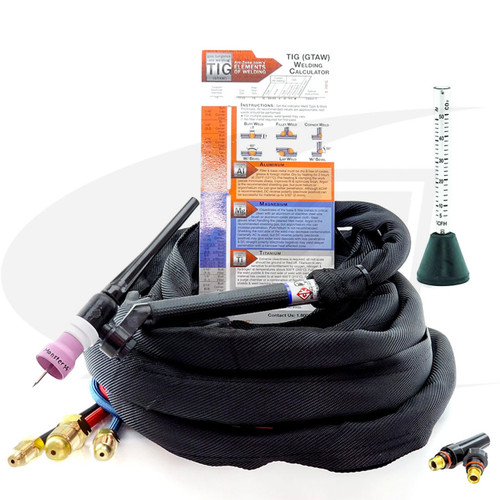

Ready-to-Weld™ Kit Includes:

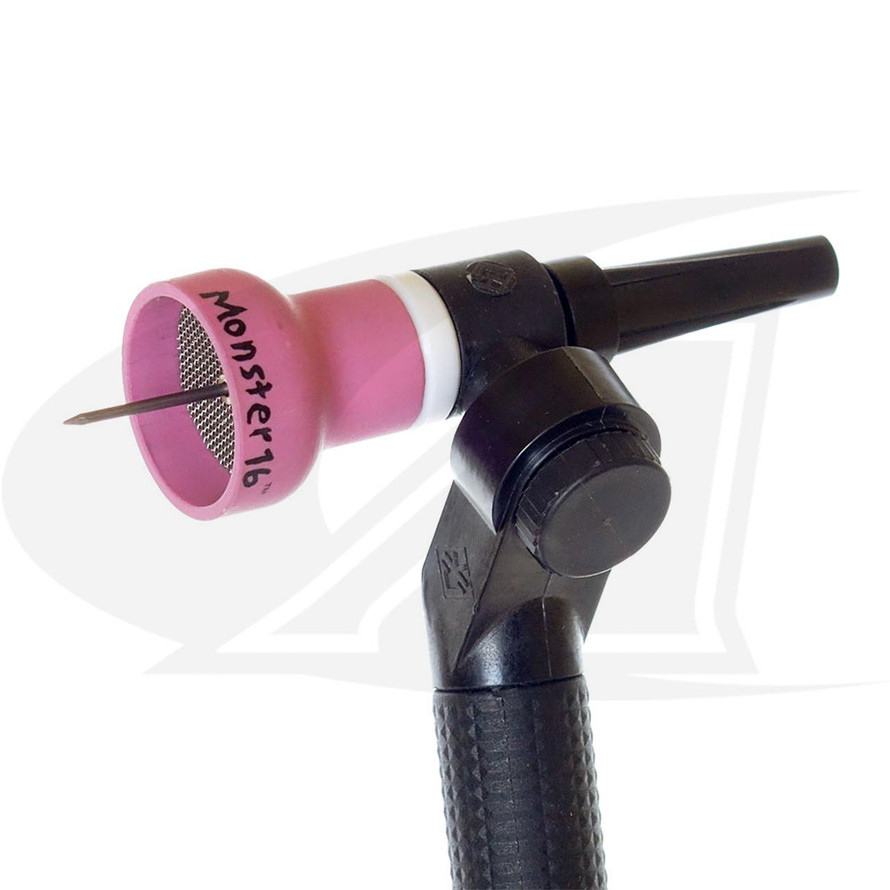

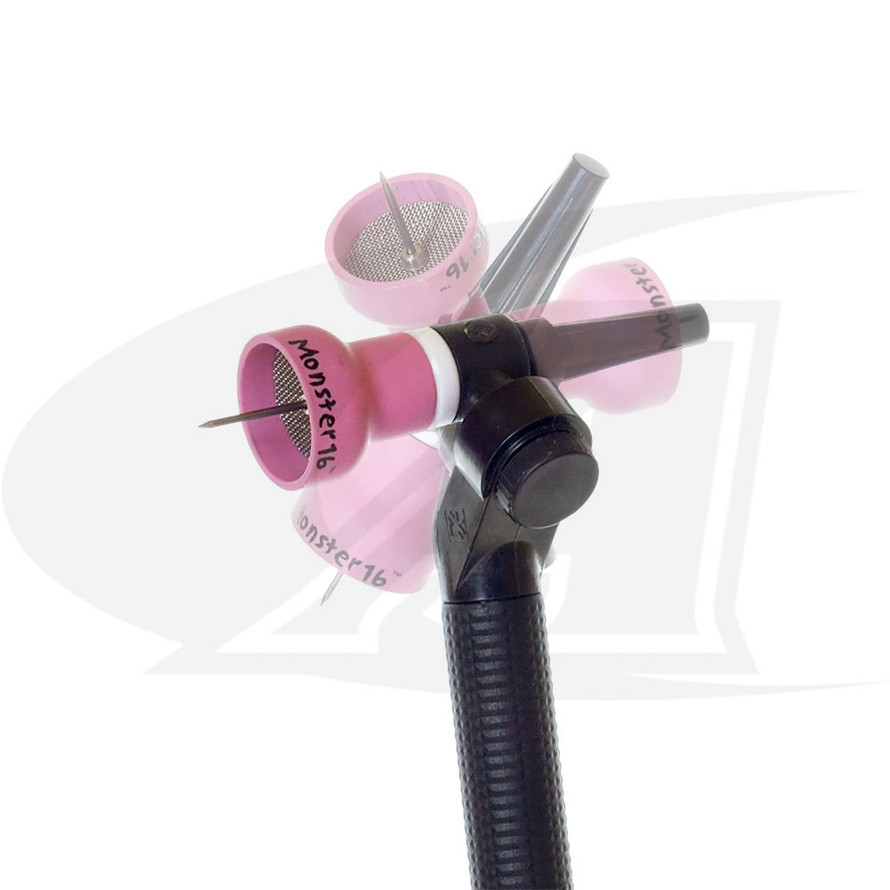

- Water-Cooled 250 Amp Flex-Loc™ 360o Variable Angle Torch Head
- 25' (7.6m) SuperFlex™ Power, Water & Gas Hoses
- Premium Nylon Cable Cover
- Monster14™ Gas Lens Kit
- Pre-Ground 3/32” (2.4mm) ArcTime™ Hybrid Tungsten Electrode
- Short, Medium & Long Back Caps
- Shield Gas Flow Test Gauge
- Arc-Zone® Pro Series™ TIG Welding Calculator
| Specifications: | JWS-SS250W-FL | |||
|---|---|---|---|---|
| Amperage | 250 amps ACHF or DCSP @ 100% | |||
| Water-Cooled body | 360o Variable angle FlexLoc™ head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 3oz. (190g) | |||
| Torch length | 7.5" (190mm) | |||
| Handle diameter | 3/4" (190mm) | |||
| Water flow | 1qt./min. (0.946 L/min.) | |||
| Maximum pressure | 50 psi (3.448 BAR) | |||
| Power Connection | Torch: 1/4" - 28 RH Female | Machine: 7/8" 14LH Male (Red Water Return) | ||
| Gas Connection | Torch: Fail safe mechanical | Machine: 5/8" 18RH Male (Black Gas) | ||
| Water Connection | Torch: Fail safe mechanical | Machine: 5/8" 18LH Male (Blue Water In) | ||
| Handle | CK-200H | |||
| Cable Material | Super Flex Rubber | |||
| Cable Length | 25' (7.6m) | |||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
Specialty Torches
|
|
Amperage Rating:
|
200 - 310 Amp
|
