Description

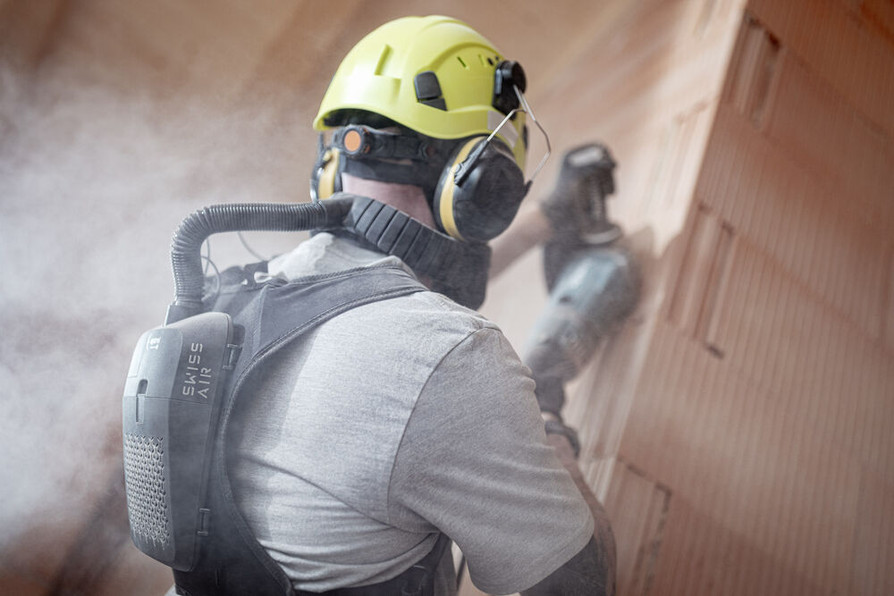

Optrel Swiss Air PAPR
Introducing the Optrel Swiss Air, a revolutionary TH3 PAPR (powered air-purifying respirator) system.
The Swiss Air PAPR system offers:
- Flame-retardant ventilated half-mask
- Powerful TH3 filter unit protecting you from 99.8% of all harmful particles, aerosols, vapors, smoke and even viruses
- Positive pressure to support breathing and avoid fatigue
- Central control panel for filter and battery status, airflow regulation, automatic altitude, and temperature compensation
- Automatic airflow calibration
- 14-hour high-performance battery, you can work uninterrupted
- Adjustable head harness accommodating sizes from XS-XL
Choose to pair the Swiss Air with an optrel hood such as the Panoramaxx CLT or the Crystal 2.0, an industrial helmet, a weldCap® or no helmet at all. Take a deep breath, safety never felt so comfortable!
Technical Specifications:
| Type | Swiss Air PAPR system, battery powered |
|---|---|
| Protection Levels | TH3 (EN12941) |
| Blower Unit | |
| Flow Rates | Level 1: min. 100 l/min Level 2: min. 115 l/min Level 3: min. 130 l/min All levels with automatic air flow control (levels are set directly on the fan and can be continuously adjusted via the control panel at the front). |
| Material | PA66 GF30 |
| Fan | High-quality ball beared motor |
| Fuse | Electronic |
| Noise | Max. 70 db (A) |
| Alarm | Optical (with swiss air Control Panel) and audible alarm for low / very low battery, clogged filter, no filter, and low flow Low battery: alarm period: 3.0s (1.5s on, 1.5s off) Filter: alarm period 0.5s (0.25s on, 0.25s off |
| Dimensions(LxWxH) | 250 x 170 x 50 mm |
| Total Weight | 1200 g, / 42.15 Oz (including filter, belt and battery |
| Color | Black |
| Half-Mask | |
|
Material |
Ripstop textile (98% polyester and 2% polyurethanes) Inlay: Polyurethane foam |
| Valves | 2 exhalation valves with silicone membrane |
| Color | Black |
| Headband / Neck Band | |
| Material | Neoprene / elastic |
| Color | Black |
| Filter Unit | |
| Type | TH3P R SL filter for TH3P System (EU) with pre-filter |
| Hose | |
| Hose | POM and silicone |
| Length | 180mm (elastic, up to 355 mm excl. Y-hose) |
| Internal diameter | 21 mm |
| Color | Black |
| Battery Pack | |
| Type | Li-Ione, rechargeable, 3.6v / 6.5 Ah / 23.4Wh |
| Operating time | Level 1: 14hours Level 2: 12 hours Level 3: 8 hours (with new filter at room temperature) |
| Charging time | Approximately 6 hours |
| Sleep mode | After 3 hours, activation by pressing once, start at second press |
| Certificates | |
| Standards | EN 12941 Europe: TH3 Australia: P3 AS/NZS 1716 EAC TP TC 019/2011 |
| Notified body | CE 1024 |
| Scope of Delivery | Blower unit with hose, half-mask, TH3P R SL filter, spark protector, battery, harness, charger, carrying backpack, user instructions |
| Warranty | 2 years from date of sales for manufacturing and material defects, no warranty for battery |
| Note | The Optrel SWISS AIR respiratory system may NOT be used in environments where there is an immediate danger to health or life (IDLH), in atmospheres containing less than 17% (Europe) oxygen or where the concentration of toxins is so high that a protection class in excess of TH2 (EU) is required. It is NOT evaluated as an ignition source in flammable or explosive atmospheres. |
