ZeroLoss™ Double Shut-Off Quick-Release TIG Gas Hose Kit (Select Option Above)

Disconnect your TIG gas hose without wasting shielding gas.

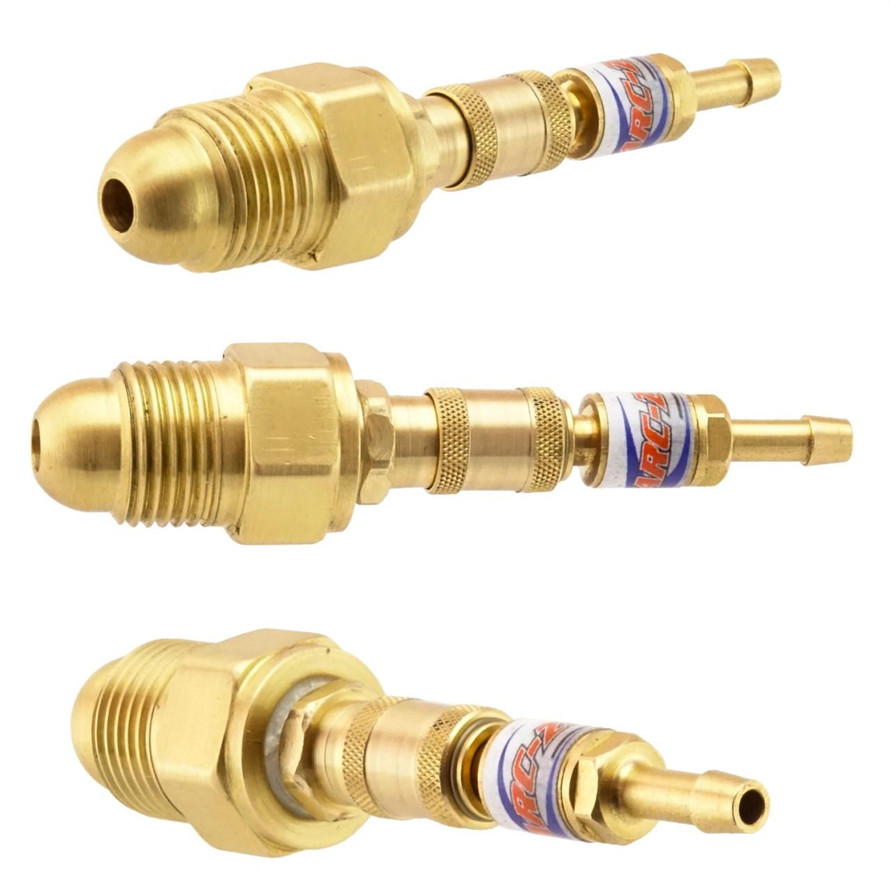

The Arc-Zone® ZeroLoss™ Double Shut-Off Quick-Release TIG Gas Hose Kit makes torch changes, hose repairs, and maintenance faster while helping reduce unnecessary argon loss. Unlike standard quick disconnects, the ZeroLoss™ system automatically seals both the female coupler and male plug as soon as they are disconnected.

This double shut-off design helps save gas, reduce downtime, and eliminate the need to shut down or depressurize the entire gas line during routine torch or hose changes.

Choose the Correct Male TIG Gas Hose Plug Size

This kit is available in two different Male TIG Gas Hose Plug sizes. The correct size depends on the TIG torch, gas hose, or welding machine connection used in your setup.

Important: Large and Small refer specifically to the size of the Male TIG Gas Hose Plug, not the quick-disconnect coupler body.

Not sure which size you need?
Check or measure the male gas hose plug on your existing TIG torch or gas hose before ordering. The correct size depends on the machine and torch setup being used.

Why Welders Choose ZeroLoss™

• Double Shut-Off Design: Both sides automatically seal when disconnected.
• Reduce Argon Waste: Helps prevent shielding gas from escaping during torch or hose changes.
• Faster Maintenance: Disconnect and reconnect gas hoses quickly without tools.
• Simple Torch Changes: Swap compatible TIG torches and gas hoses with less downtime.
• Compact, High-Flow Design: Series 20 couplers provide strong flow performance despite their small size.
• Professional Construction: German-made couplings built to international standard profiles.

How the Double Shut-Off System Works

1. Connect the male plug to the female quick-release coupler.
2. Shielding gas flows normally while the coupling is connected.
3. When disconnected, the internal valve in the female coupler closes automatically.
4. The internal valve in the male plug also closes automatically.
5. Both sides remain sealed, helping prevent gas loss while the line is disconnected.

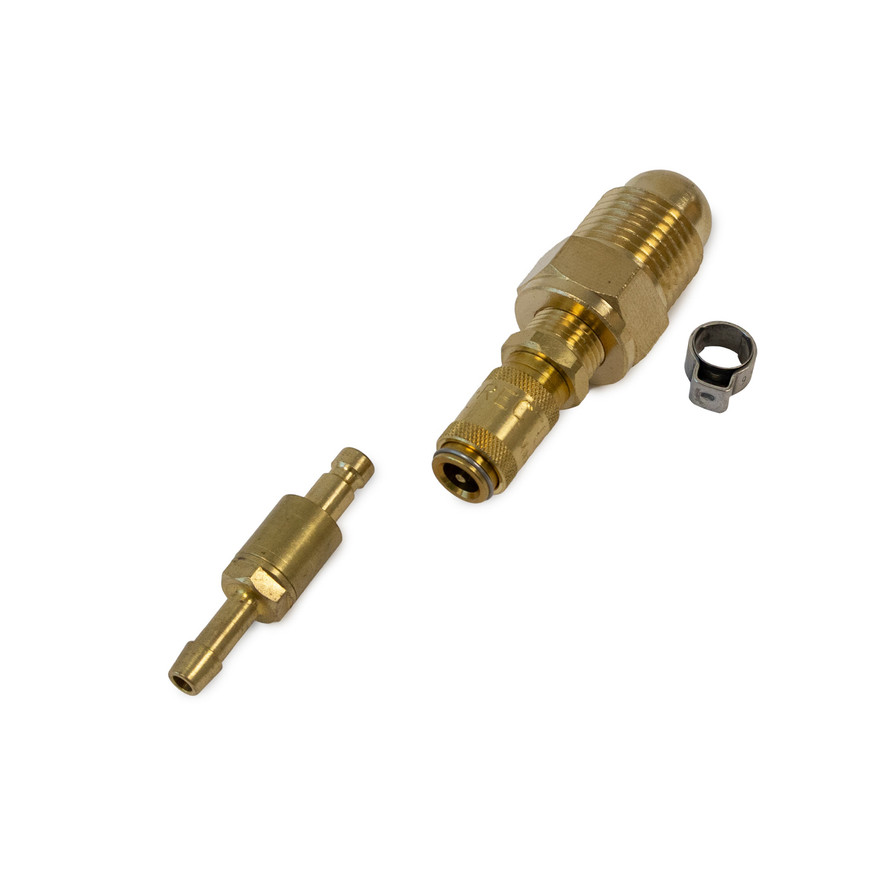

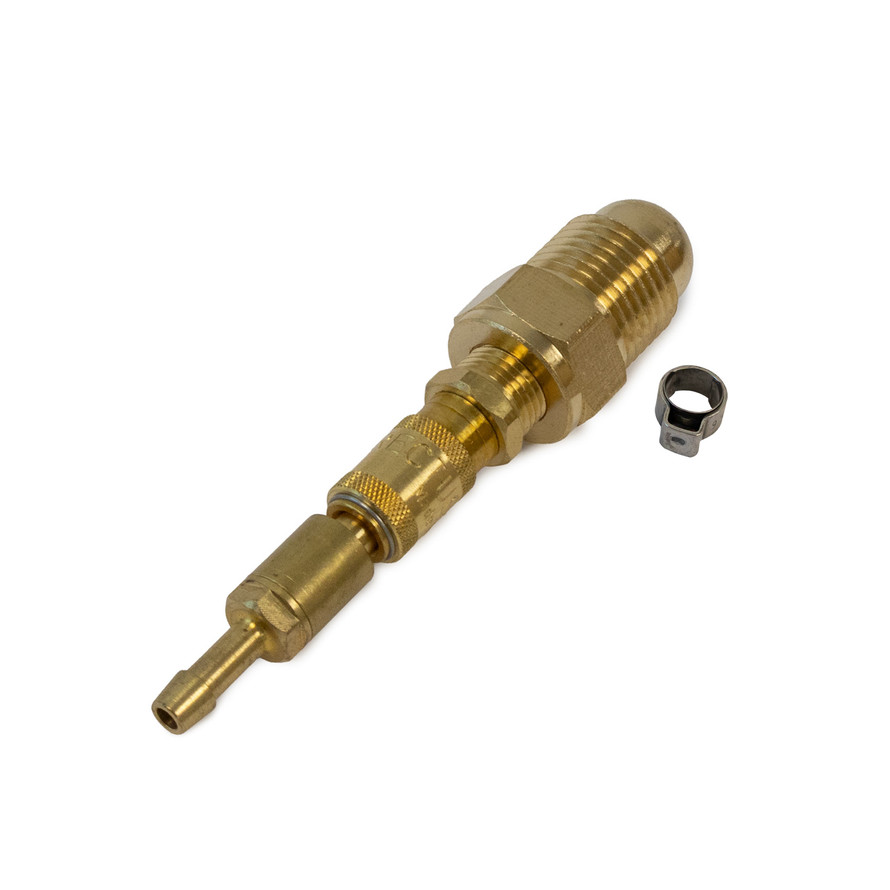

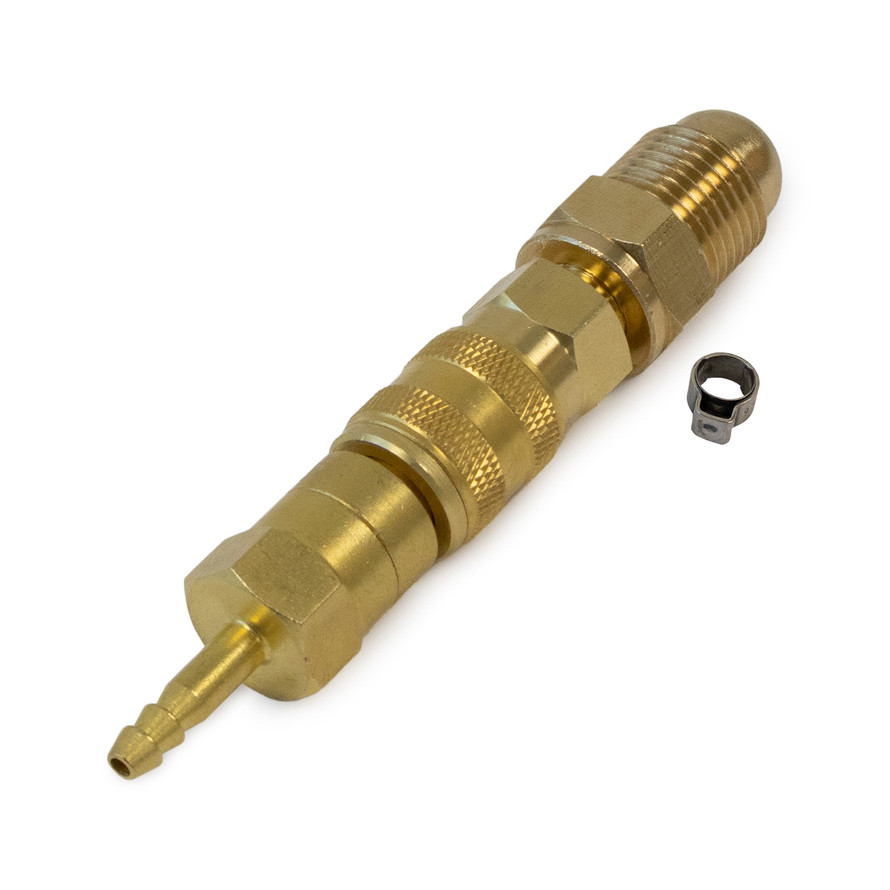

What's Included

• Right-Hand Male Nut to Female ZeroLoss™ Quick-Release Coupler
• Male ZeroLoss™ Quick-Release Plug with TIG gas hose barb
• Hose clamp for installation and torch conversion

Compatibility

• Designed for TIG shielding gas hose applications
• Available for 3/8" (9.5 mm) Large or 3/16" (4.8 mm) Small male TIG gas hose plugs
• Compatible only with Arc-Zone® ZeroLoss™ couplers and plugs
• Suitable for compatible TIG torches, purge systems, and gas delivery setups

Compatibility Warning: ZeroLoss™ components are not designed to connect with unrelated standard quick-disconnect brands or profiles. Use only matching Arc-Zone® ZeroLoss™ couplers and plugs.

Ideal Applications

• TIG welding systems
• TIG torch changes
• Gas hose replacement and maintenance
• Purge equipment
• Orbital welding systems
• High-purity gas delivery
• Food and beverage fabrication
• Pharmaceutical and sanitary welding
• Aerospace and precision fabrication

Frequently Asked Questions

What is the main difference between JWS-QRG-ZL and JWS-QRG-ZL-S?
The difference is the Male TIG Gas Hose Plug size. JWS-QRG-ZL uses a 3/8" (9.5 mm) Large plug, while JWS-QRG-ZL-S uses a 3/16" (4.8 mm) Small plug.

How do I know which size to order?
Choose the size that matches the male gas hose plug used by your TIG torch or welding machine setup. Check or measure the existing male plug before ordering.

Does Large or Small refer to the coupler body?
No. Large and Small refer specifically to the Male TIG Gas Hose Plug size.

What makes ZeroLoss™ different from a standard quick disconnect?
ZeroLoss™ automatically seals both the female coupler and male plug when disconnected. This helps reduce gas loss from both sides of the connection.

Can I use this with another brand of quick disconnect?
No. ZeroLoss™ plugs and couplers are designed to connect only with matching Arc-Zone® ZeroLoss™ components.

Does the kit include everything needed for installation?
The kit includes the machine-end coupler, male hose plug, and hose clamp. Review your existing TIG torch and gas hose setup to confirm that the selected plug size is correct.
