Description

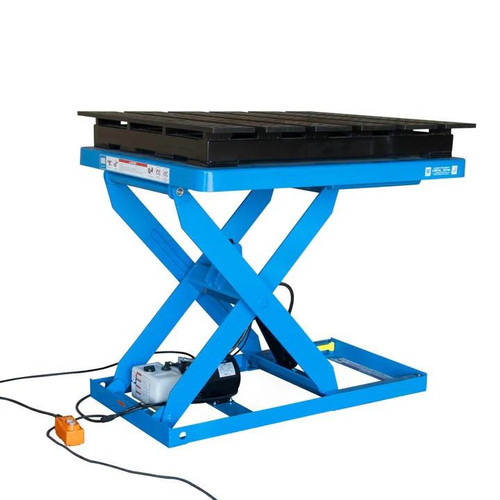

Stationary Scissor Lift Platform (Use Options Above to Add a BuildPro Tabletop to Your Order)
New Stationary Scissor Lifts increase productivity and worker comfort by setting your BuildPro® table at the ideal height for each project. With a large, hand operated push button control and chip resistant powder coat finish.
Quick-acting scissor lift platform raises loads up to 2,500 lb to from a range of 8.7" - 42.6" in height. Raises in about 24 seconds, and lowers in about 12 seconds.
| Part # | Table Top | Platform Size |
Travel | Capacity | Platform Height | Voltage | Weight |
|---|---|---|---|---|---|---|---|
| SHT-TMLK3-3648 | No Table Top Included | 36" x 48" (0.9mx1.2m) |
34" (863mm) | 2,500 lbs (1,134kg) |
8.7" - 42.6" (0.2m-1.1m) |
115 VAC | 560 lbs (254kg) |
| SHT-TMLK3-3648-T | 46" x 47" (1.15mx1.16m) |
2,080 lbs (943kg) |
13.7" - 47.6" |
980 lbs (444kg) | |||
| SHT-TMLK3-3648-TQ | SHT-TMQ54746 Nitride Finish |
For use with BuildPro®, Siegmund® System 16 Tabletops or other popular welding tables. Contact our Sales Team to request the Siegmund® Catalog.
Free Shipping within the contiguous United States. For international shipments, customer pays all shipping, taxes, and fees.
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Tables w/ Legs
|
|
Accessory Type:
|
Table Legs
|
|
Table Brand:
|
BuildPro
|
|
Table Hole Dia.:
|
5/8"
|
|
Table Size:
|
4'x 4'
|
