Narrow Riser Blocks for Siegmund System 16 Tables

(No reviews yet) Write a Review
MPN:
S2-160396-P
Minimum Purchase:
1 unit
  • Siegmund Narrow Riser Blocks for Siegmund System 16 Tables
  • Siegmund Narrow Riser Blocks for Siegmund System 16 Tables
  • Siegmund Narrow Riser Blocks for Siegmund System 16 Tables
  • Siegmund Narrow Riser Blocks for Siegmund System 16 Tables
$440.00 - $950.00

Description

Riser Blocks (Select Size From Drop Down Menu Above)

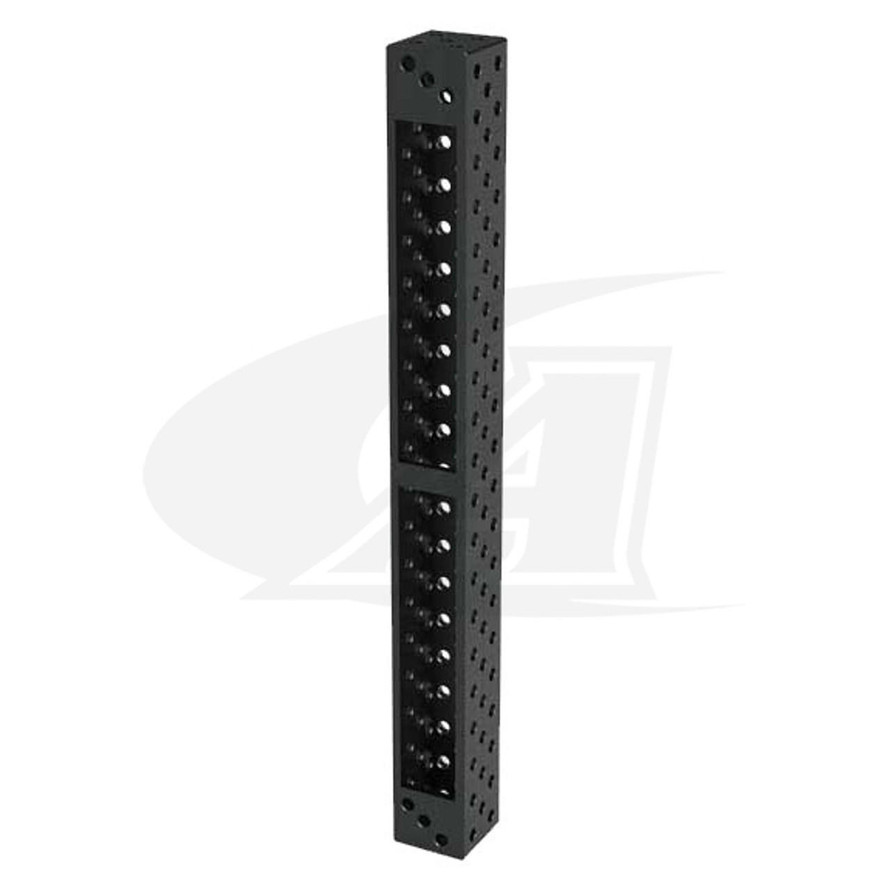

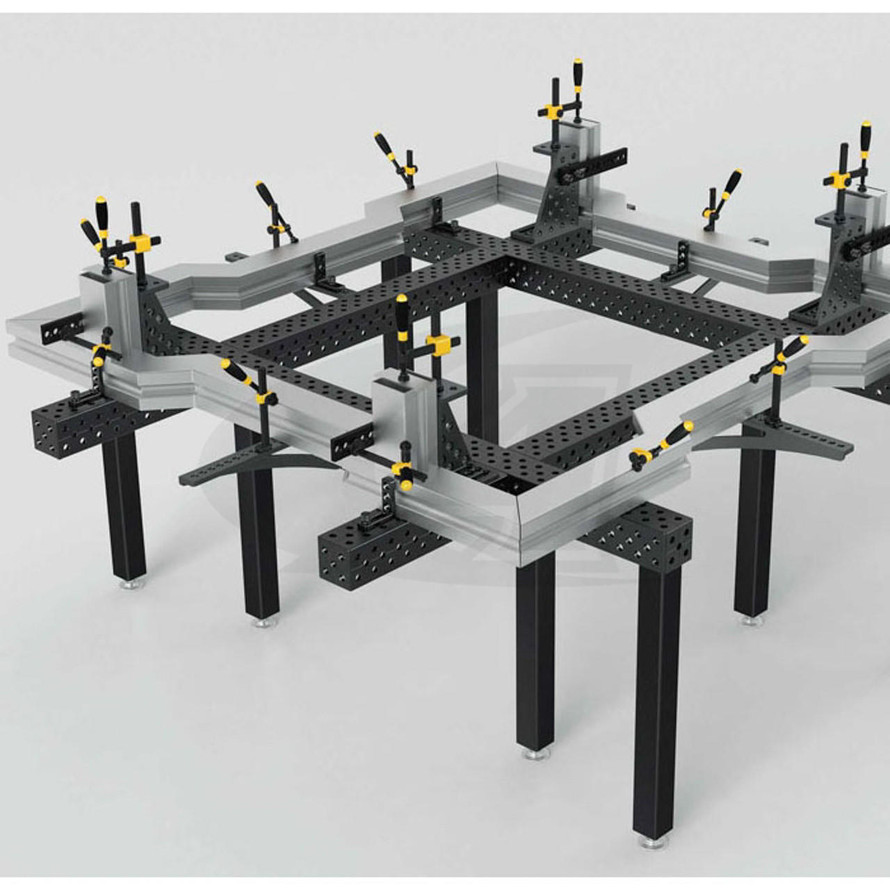

Riser blocks are used as table extensions and vertical setups, they are available in 100 x 100 mm and 200 x 100 mm profiles.

Riser blocks are plasma nitride hardened. Riser blocks over 500 mm in length come with leg mounting holes; all lengths longer than 500 mm should be supported by additional legs when used in a cantilever position.

SAFETY NOTE: Riser Blocks should only be joined to the table using connector bolts (Item SHT-S2-160560 or SHT-S2-2160550-1). Do not use fast clamping bolts or other available bolts to join.

Part Number Name Length Width Height Weight
SHT-S2-160396-P 100mm Narrow Riser Block 100mm
(3.9")
100mm
(3.9")
100mm
(3.9")
3.0kg
(6.6lbs)
SHT-S2-160360-P 500mm Narrow Riser Block 500mm
(19.7")
100mm
(3.9")
100mm
(3.9")
13kg
(28.6lbs)
SHT-S2-160370-P 1,000mm Narrow Riser Block 1,000mm
(39.4")
100mm
(3.9")
100mm
(3.9")
25kg
(55.1lbs)



View AllClose

Additional Information

Accessory Type:
Risers
Table Brand:
Siegmund
Table Hole Dia.:
16 mm
