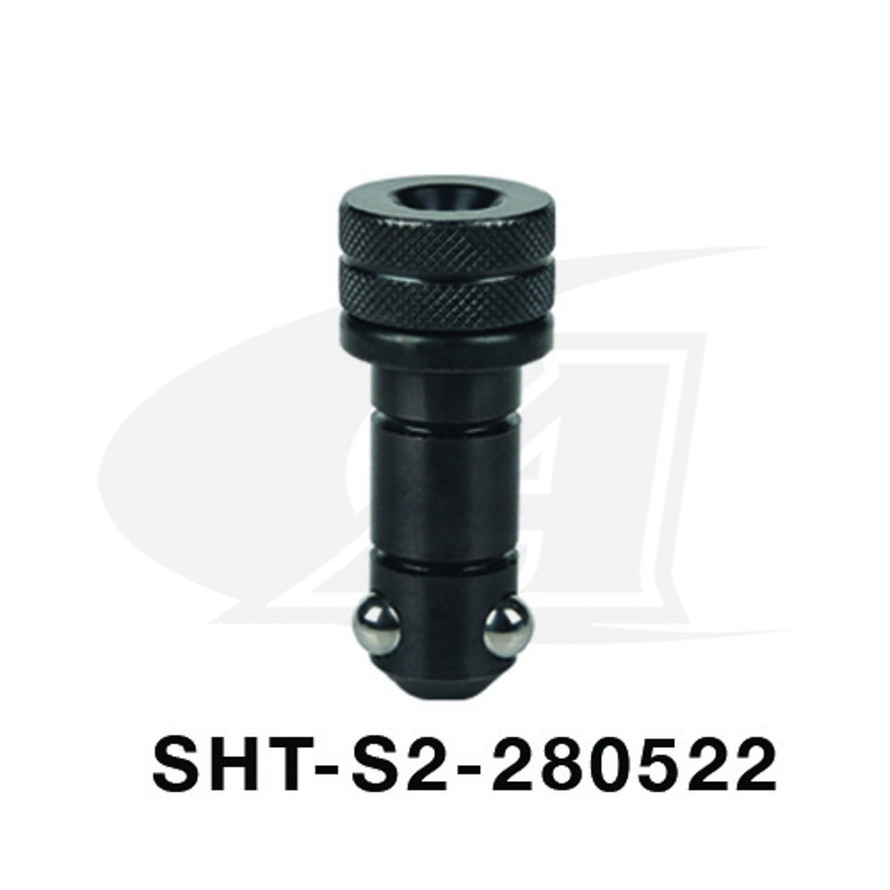

Fast Clamping Bolts (Select Style From Drop Down Menu Above)
These are the standard bolts used for the majority of applications. Tighten by hand, or with a 6mm hex key (not included).
Siegmund™ bolts come in short and long versions. Short bolts are designed for connecting two Siegmund components together such as a table to a stop or a stop to a square. Long bolts are designed for connecting three Siegmund components together. Connecting Bolts (not Fast Clamping Bolts) are Recommended for joining heavy parts such as riser blocks to tables.
Features of the highly-engineered Siegmund Clamping Bolts:
- Lightning-fast clamping--tighten by hand, or with a hex key
- Optimized grip ergonomics, with spacing between the grip and the work piece for easier handling
- Made of hardened, high-alloy steel for maximum strength
- Minimized internal friction means no O-Ring to wear out
- Trihedral principal of the 3 ball locking mechanism optimizes load distribution and eliminates the need for rubber O-Rings
- Chamfer tip enables crosswise clamping
- Patented mechanism allows for cleaning and replacing of ball bearings
| Part Number | Name | Length | Diameter | Weight |
|---|---|---|---|---|
| SHT-S2-280510 | Short Fast Clamping Bolt | 95mm (3.7") |
28mm (1.1") |
0.5kg (1.1lbs) |
| SHT-S2-280512 | Long Fast Clamping Bolt | 120mm (4.7") |
28mm (1.1") |
0.7kg (1.5lbs) |
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Bolts
|
|
Table Brand:
|
Siegmund
|
|
Table Hole Dia.:
|
28 mm
|
