SHT-S2-280025-XD7D

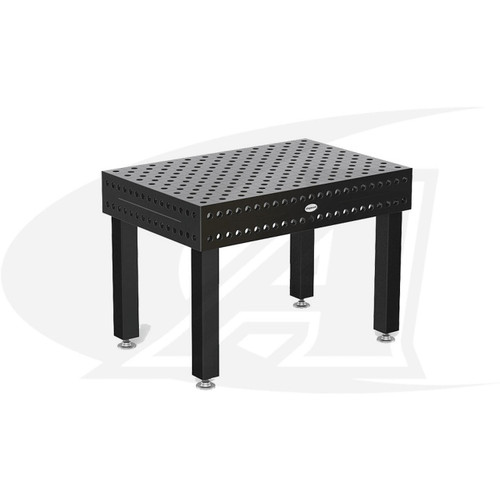

Siegmund™ System 28 Professional Welding Table 1.2 x 0.8M (47" x 31")
*Contact Customer Service For Custom Shipping Quote On All Siegmund Welding Tables*
Siegmund™ System 28 Professional Extreme tables now feature the latest upgrades in aesthetics, versatility, and durability. Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.
Welding tables come in a variety of sizes to suit your unique fabrication needs. The five face design of the table using 25 mm thick plates and reinforcements underneath creates an extremely rigid table surface. A plasma nitride finish comes standard on all tables for a work surface extremely resistant to wear, deformation, corrosion, and weld spatter.
Diagonal Grid Patterns: Work holes are 28 mm diameter and spaced 100 mm apart. The diagonal grid pattern provides 80-90% more fixture locations on the top face of the table for even greater flexibility.
| Part Number | S2-280055-XD7D |
|---|---|
| Length | 1,200mm (47.2") |
| Width | 800mm (31.5") |
| Height | 200mm (7.9") |
| Weight | 363kg (799 lbs.) |
| Number of Legs Required (Sold Separately) |
4 |
Specifications
View AllCloseVideos
View AllClose
Additional Information
|
Accessory Type:
|
Table Tops
|
|
Table Brand:
|
Siegmund
|
|
Table Hole Dia.:
|
16 mm
|
|
Table Finish:
|
Nitride
|
|
Table Size:
|
3'x 4'
|
