PROFAX® Heavy Duty Turning Roll Set
Designed for rotation of cylindrical work pieces, the PROFAX® TR-10000 turning has easily adjustable wheel spacing, is high frequency protected, and includes hand pendant control.
Kit comes standard with one idler roll.
Additional idler rolls are available.
Key Information:
- Includes one drive & one idler
- Easily adjustable wheel spacing
- Hand pendant control w/ 25' cord (24V)
- 115V input power / 10 Amp
Specifications:
| Part # | PX-TR-10000 | PX-TR-10000-2 |
|---|---|---|
| Power Input | 115V / 10 Amp | 230V (Int'l Style) |

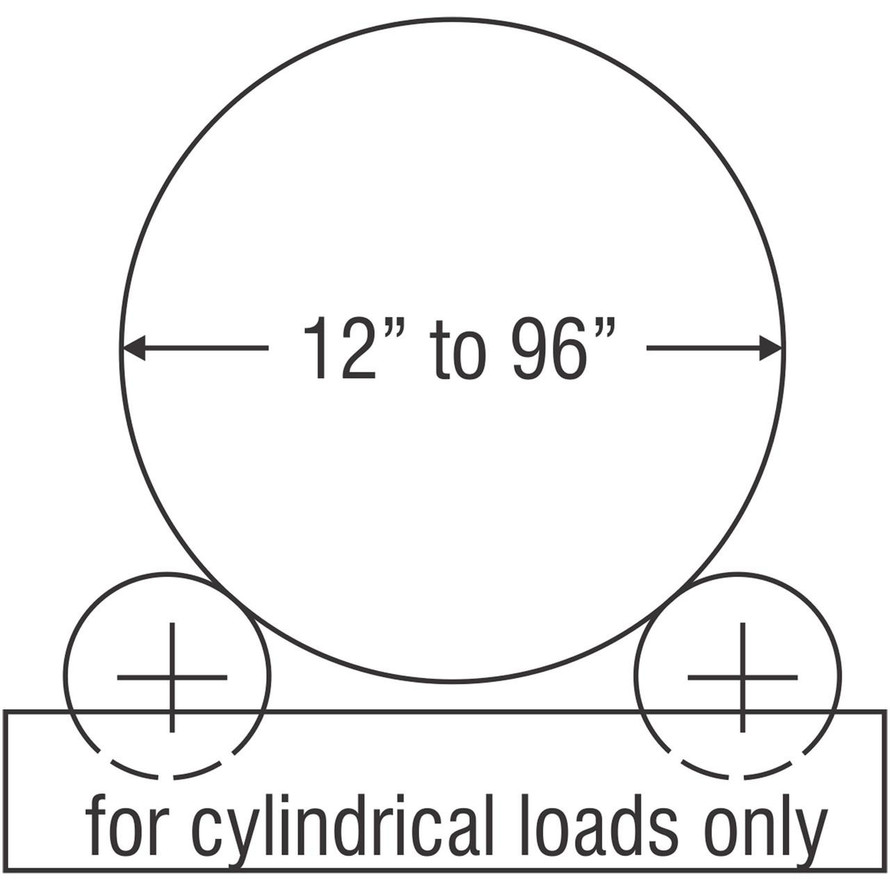

| Diameter Capacity | 12" (0.3m) - 96" (2.4m) | |
| Rotaion Speed | 0 - 45 Inches Per Minute | |
| Load Capacity | 5-Ton (4,535kg) [2.5 Tons for each drive & idler] | |
| Rotation Capacity | 7.5 lbs. (6,804kg ) *with additional idlers | |
| Wheels | 4" (101mm) x 12" (305mm) Polyurethane over Steel | |
| Motor | 2/3 H.P. | |
| Shipping Weight | 720 lbs. (327kg) | |
| Warranty | 1 Year | |
