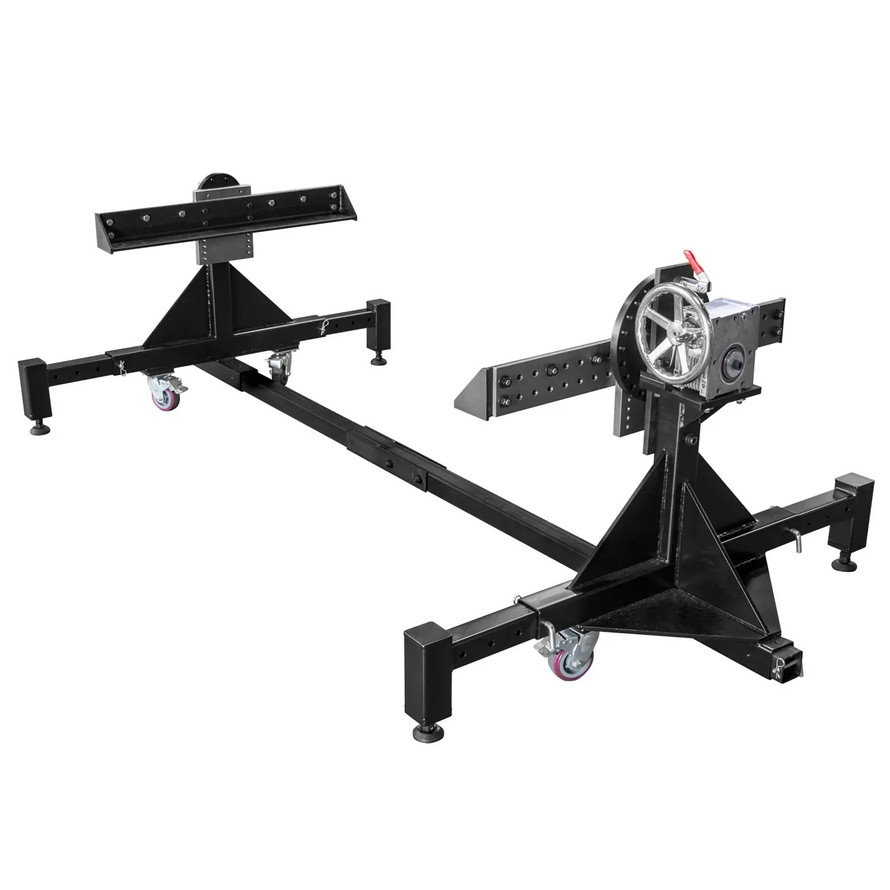

Welding Table Rotary Positioner (Select Tabletop Size From Options Above)

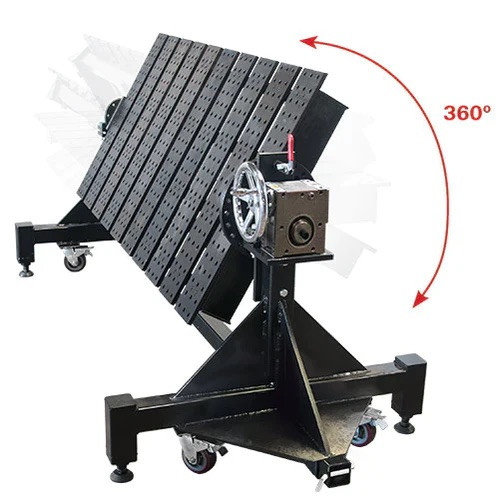

Horizontally mount your BuildPro® or Siegmund® Welding Tabletop to the New BuildPro® Rotary Positioner for plane rotation of your welding tabletop. The gear driven free-turning mechanism allows for smooth operation, superior stability and controlled turning and positioning at precise 15° increments with positive manual locking. 2,400 lbs (1,088kg) capacity.
The BuildPro® Rotary Positioner allows you to rotate your weld fixture to the best ergonomic position for worker safety and comfort, and reduced operator fatigue. Position your fixture for better weld access, accuracy, and productivity for both manual and robotic welding operations.
The BuildPro® Rotary Positioner is universal, with an adjustable base to accommodate most standard BuildPro® or Siegmund® Welding Tabletops. The Positioner features four swiveling, locking casters, and four leveling feet for setup at dedicated, or alternating locations in the shop.
| Part # | BuildPro Max TabletopS | Weight |
|---|---|---|
| SHT-TMP59648 | SHT-TM(Q)59648F (8’ x 4’) | 730 lbs (331kg) |
| SHT-TMP54848 | SHT-TM(Q)54848F (4’ x 4’) | 730 lbs (331kg) |
| Part # | BuildPro Slotted TabletopS | |
| SHT-TMP59446 | SHT-TM(Q)59446 (8’ x 4’) | 720 lbs (327kg) |
| SHT-TMP57846 | SHT-TM(Q)57846 (6.5’ x 4’) | 720 lbs (327kg) |
| SHT-TMP57838 | SHT-TM(Q)57838 (6.5’ x 3’) | 720 lbs (327kg) |
| SHT-TMP54746 | SHT-TM(Q)54746 (4’ x 4’) | 720 lbs (327kg) |
| SHT-TMP54738 | SHT-TM(Q)54738 (4’ x 3’) | 720 lbs (327kg) |
For use with BuildPro® or Siegmund® System 16 Tabletops.
This item ships by freight truck, please contact the Arc-Zone Customer Care Team for a shipping quote.
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Table Legs
|
|
Table Brand:
|
BuildPro
|
|
Table Brand:
|
Siegmund
|
|
Table Size:
|
8'x 4'
|
