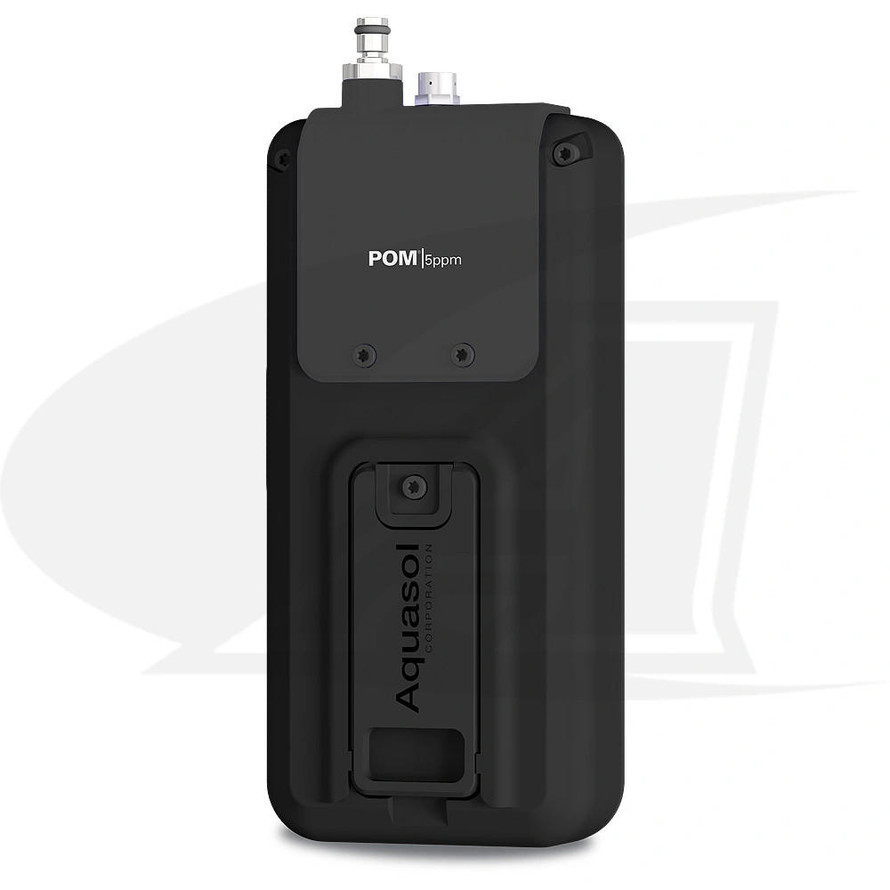

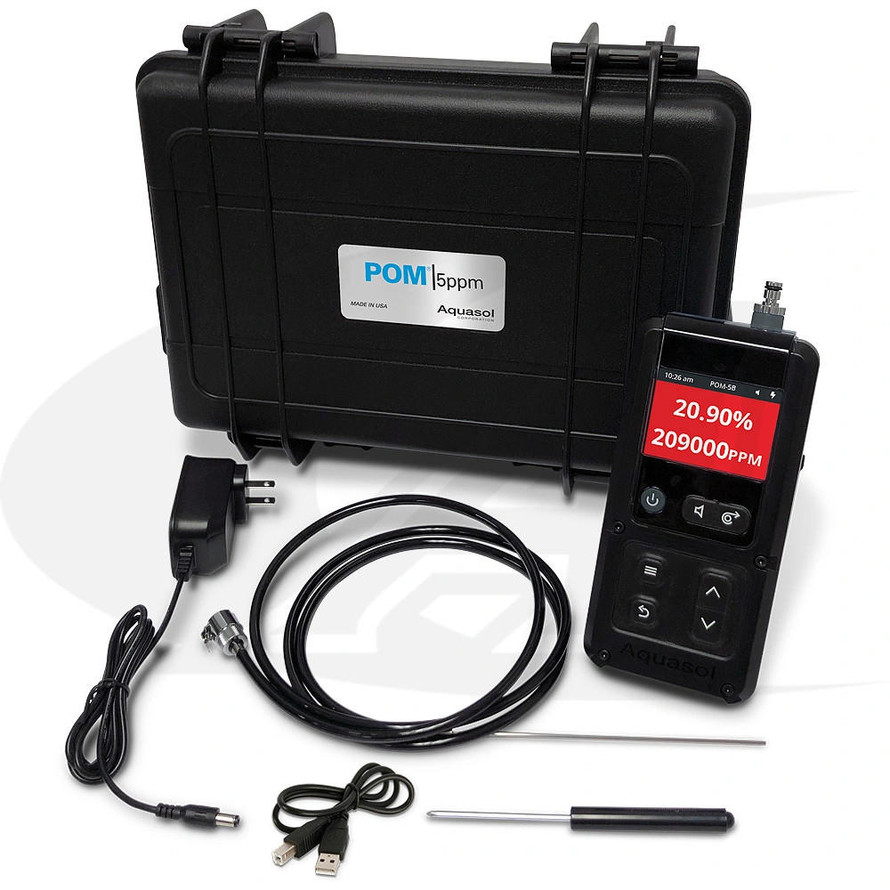

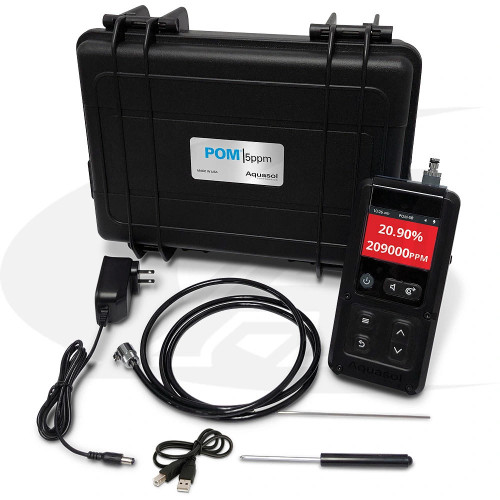

Aquasol POM®-5B Programmable Handheld Precise Digital Oxygen Monitor & Accessories Kit
This App (POM Connect) enabled handheld oxygen monitor allows users to monitor oxygen levels within a range of 100 feet (30 M) from the actual oxygen monitor with Bluetooth transmitting capabilities. Real-time monitoring improves the quality control process and improves productivity.
Aquasol POM®-5B is a battery-powered, Bluetooth transmitting, rechargeable, handheld digital oxygen monitor with an internal pump that accurately measures oxygen concentration with 0.005% (5 PPM) resolution. Oxygen is displaced by the purge gas to a pre-determined level set by the operator. Evacuation of oxygen is paramount in high purity welding to prevent oxidation, discoloration, and coking.
The POM®-5B comes equipped with many advanced features such as its data logging capabilities, which allow operators to create infinite permanent records of real time data and export to Microsoft® Excel and plain text format.
The POM®-5B also offers a built-in, programmable multi-language feature with on-screen instructions that are available in English, Spanish, German, Portuguese and Japanese. Together with different voltage and frequency specifications and compatibilities, the POM®-5B is the most universal oxygen weld monitor available on the global market today.
With its long battery life and fast charging capabilities, operators get the most power in the least possible time. That, coupled with dust and water proof construction means it can withstand unusual and severe environmental conditions without interfering with operation of the equipment.
With so many advanced features, the POM®-5B is easily the most technologically advanced weld purge monitor on the market while always giving the most accurate measurement.
Bluetooth APP Enabled Operation
- App Name: POM Connect
- Real-time Operation via Android, iOS and Windows App
- The POM®-5B is equipped with a BLE transmitting device which allows the oxygen monitor to send the oxygen readings wirelessly to any BLE device (i.e. Smartphone/Laptop).
Note
- Compatible with companion Apps available on Android, iOS and Windows
- Device MUST be equipped with BLE or purchased separately
- To save unlimited readings, POM®-5B MUST be connected to device
Unlimited Data Logging Capabilities in Real Time
With POM®-5B you will be able to create unlimited real time records of oxygen levels for critical welding applications
- The main view contains current oxygen readings with clearly visible Intelligent Color Notification System
- Access the offline logs stored on the unit, connect the unit to the computer using the provided USB printer cable
- The unit will store a log of every data point in a CSV (comma-separated value) file with a default name of MM-DD-YY.csv
Intelligent Color Notification System
- This smart system displays red, amber and green for a quick visual on operator set parameters. The traffic light’s universal appearance is easy and quick for operators and inspectors to understand, reducing the chance of error.
- Eliminate guesswork as Alarms can be set to desired O2 PPM value.
- Acceptable oxygen levels can be customized to the user specifications.
Factory Calibrated and Certified
- The POM®-5B Oxygen Monitor is factory calibrated and certified, accompanied by a dated certificate of authentication
- Meets requirements specified by the National Institute of Standards and Technology
2 Point Calibration Model:
- Calibrates using ambient air and 99.999% Argon.
HOW THE UNIT WORKS
Set Up Unit:
- Attach the Polyurethane Extension Tubing with Female Quick Connect Fitting to the Male Quick Connect Fitting on the top of POM®-5B
- Pull gently to ensure the connection is securely in place
- The tubing can easily be removed with the push of a button, no tools are necessary
Connecting to Bluetooth
- Open App Store (iPhone App Store for iPhone, Google Play App Store for Android, Microsoft Store for Windows) on your Smartphone/Laptop
- Search for “POM CONNECT” App by Aquasol Corporation
- Install the “POM CONNECT” App
To Set Language:
- Press the “MENU/ENTER” Button
- Select “Languages” and press the “MENU/ENTER” button
- Using the “UP/DOWN” arrow buttons, scroll and choose the desired language (English, German, Spanish, Portuguese and Japanese)
- Once the language is highlighted, press the “MENU/ENTER” button
There are two (2) ways to set the Date and Time: Automatic and Manually
To Set Date and Time Automatic:
You can use any one of the BLE Apps to set the Date and Time. (Refer to your manual section 3.10.5. Update Date and Time Through App)
To Set Date and Time Manually:
Clicking on “Set Date & Time” sets the POM®-5B unit to the current date and time on your Smart Phone/Laptop
- Press the “MENU/ENTER” button
- Using the “UP/DOWN” arrow buttons, select “DATE & TIME” and press the “MENU/ENTER” button
- Select Month, Day, and Year using the “UP/ DOWN” arrow buttons and pressing “MENU/ ENTER” button after each selection. Repeat for time settings
- Once the DATE & TIME are set, press the “BACK” button to return to the “MAIN MENU”
To Set Alarm ON/OFF:
Set Alarm Limits
- Press the “MENU/ENTER” button
- Using the “UP/DOWN” arrow buttons, select “Set Alarm Limits”. Press the “MENU/ENTER” button
- The Alarm Limits are used for the Intelligent Color Notification System
- Press the “MENU/ENTER” button to confirm the limit values
- Press the “BACK” button to return to the “MAIN MENU”
- Red indicates that the current measurement is greater than the “Upper Alarm Limit”
- Yellow indicates that the current measurement is between the “Upper Alarm Limit” and “Lower Alarm Limit”
- Green indicates that the current measurement is lower than the “Lower Alarm Limit”
Factory Calibrated and Certified
- The POM®-5B Oxygen Monitors is factory calibrated and certified, accompanied by a dated certificate of authentication
- Meets requirements specified by the National Institute of Standards and Technology
- 2 Point Calibration: Calibrates using ambient air and 99.999% Argon
Intelligent Color Notification System
- Operator sets “Upper Alarm Limit” and “Lower Alarm Limit” for a quick visual check on current oxygen level
- RED Indicates current measurement is greater than the “Upper Alarm Limit”
- YELLOW Indicates current measurement is between the “Upper Alarm Limit” & “Lower Alarm Limit”
- GREEN Indicates current measurement is lower than the “Lower Alarm Limit”
Built-in Dust Filter
To ensure the long-term operation of the POM®-5B, it is equipped with a built-in dust filter to capture dust and debris.
- The sintered bronze Dust Filter sits in the input port inside the device
- The Dust Filter can be cleaned if exposed to extremely dusty environments as well as replaced
POM® Registration
It is important to Register the POM®-5B to start warranty services. It’s quick and the link is conveniently located in the menu options of the POM device or the POM® Connect App.
CE Designation
The POM®-100B is in compliance with CE Directives
