Description

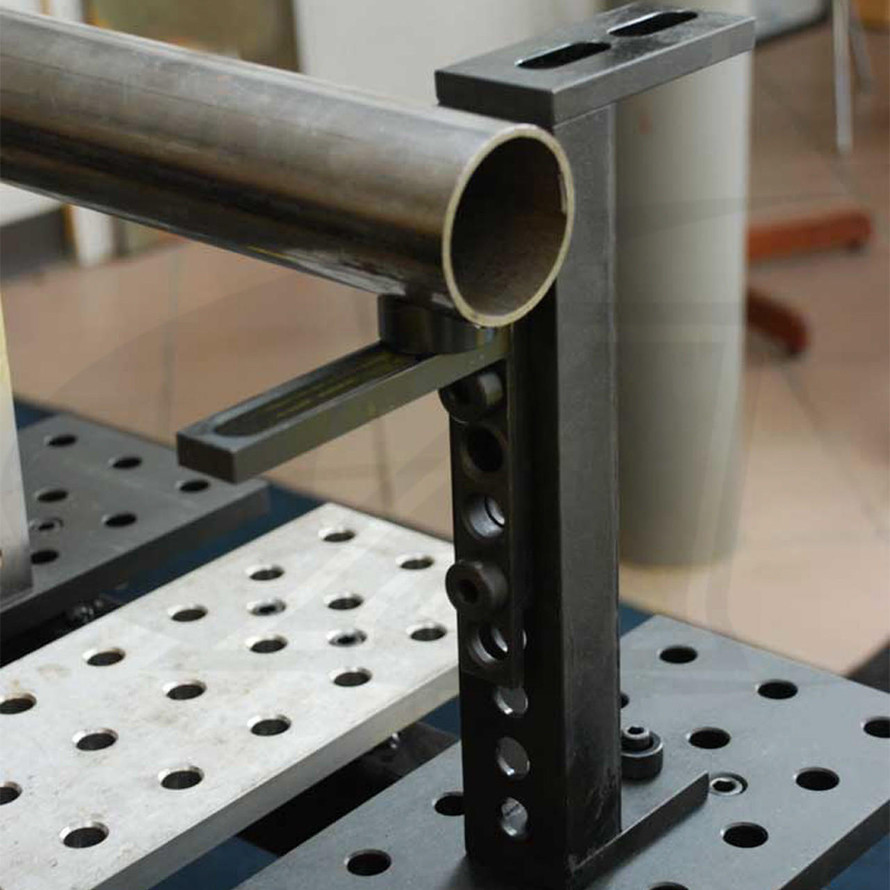

BuildPro™ Economy Stop & Clamping Square (Choose Size From Options Above)
| Part # | SHT-T50205 | SHT-T50210 | SHT-T50215 |
|---|---|---|---|
| Height | 4" (101.6mm) | 8" (203.2mm) | 12" (304.8 |
| Length | 5-1/2" (139.7mm) | 5-1/2" (139.7mm) | 5-1/2" (139.7mm) |
| Width | 2" (50.8mm) | 2" (50.8mm) | 2" (50.8mm) |
| Weight | 2.3lbs (1kg) | 3.1lbs (1.4kg) | 4.2lbs (1.9kg) |
Three sided Stops and Clamping Squares feature fully machined square surfaces for a variety of fit-up applications.
Economy Stops are the basic building blocks of any fixture. The inside channel, and the holes and slots provide unlimited versatility in clamping, locating, and positioning.
Insert Table Mount C-Clamps, or Inserta Clamps into any of the CNC machined 5/8" holes for horizontal or vertical clamping at any height. Use the squares to brace tall workpieces. Insert Magnetic Plugs into any of the holes to hold sheet metal in a vertical position. The lower base features a slotted hole for adjustable mounting.
Clamping Squares can be stacked for taller applications. Use with 1/2-13 Shoulder Screw Part Nos. SHT-T831605 - SHT-T831612.
Specifications
View AllCloseAdditional Information
|
Accessory Type:
|
Stops/Squares
|
|
Table Brand:
|
Alpha 5/8
|
|
Table Brand:
|
BuildPro
|
|
Table Hole Dia.:
|
5/8"
|
