BuildPro® Right Angle Brackets (Choose Your Size)
Precision 90° positioning for accurate welding, fabrication, and fixture setup.

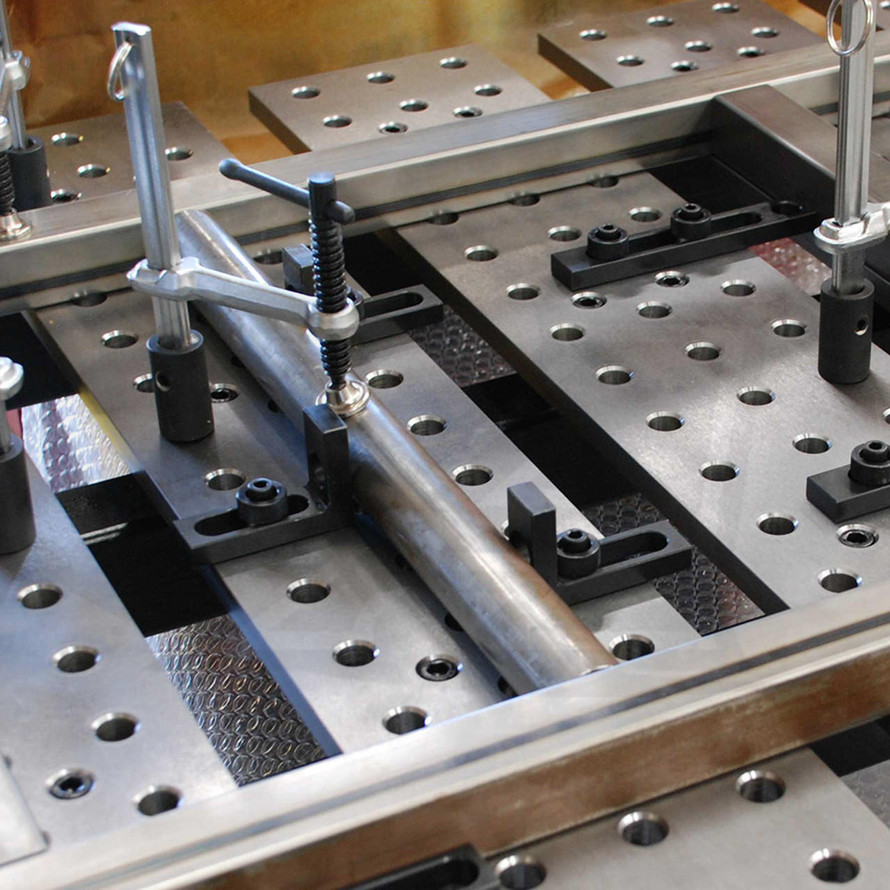

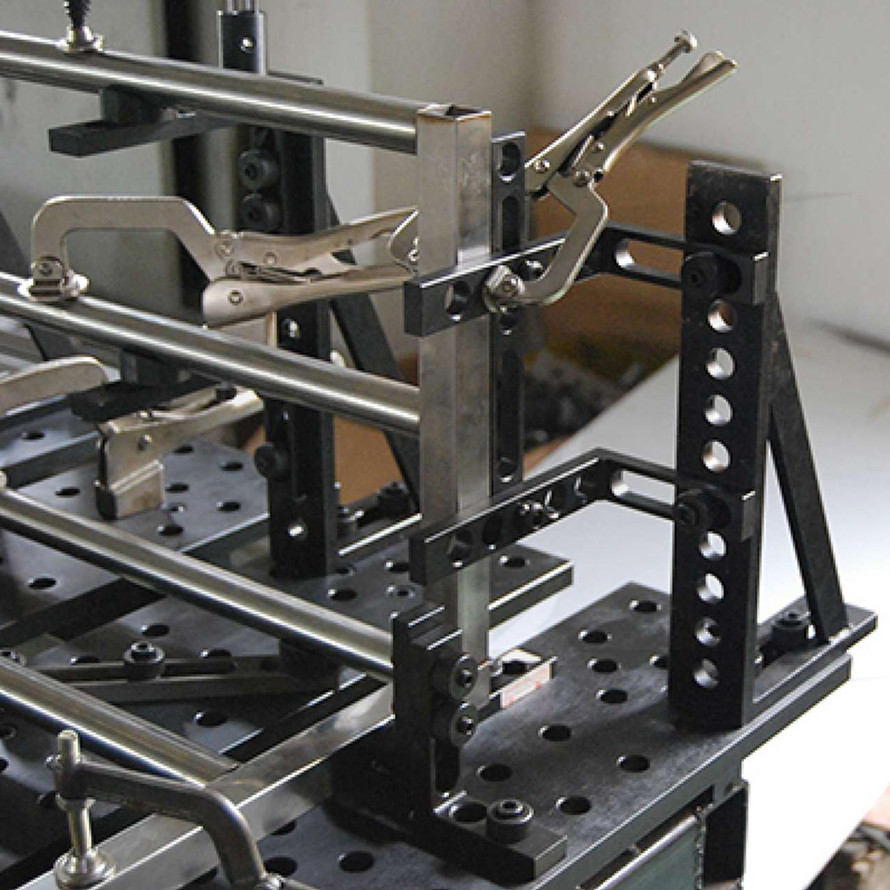

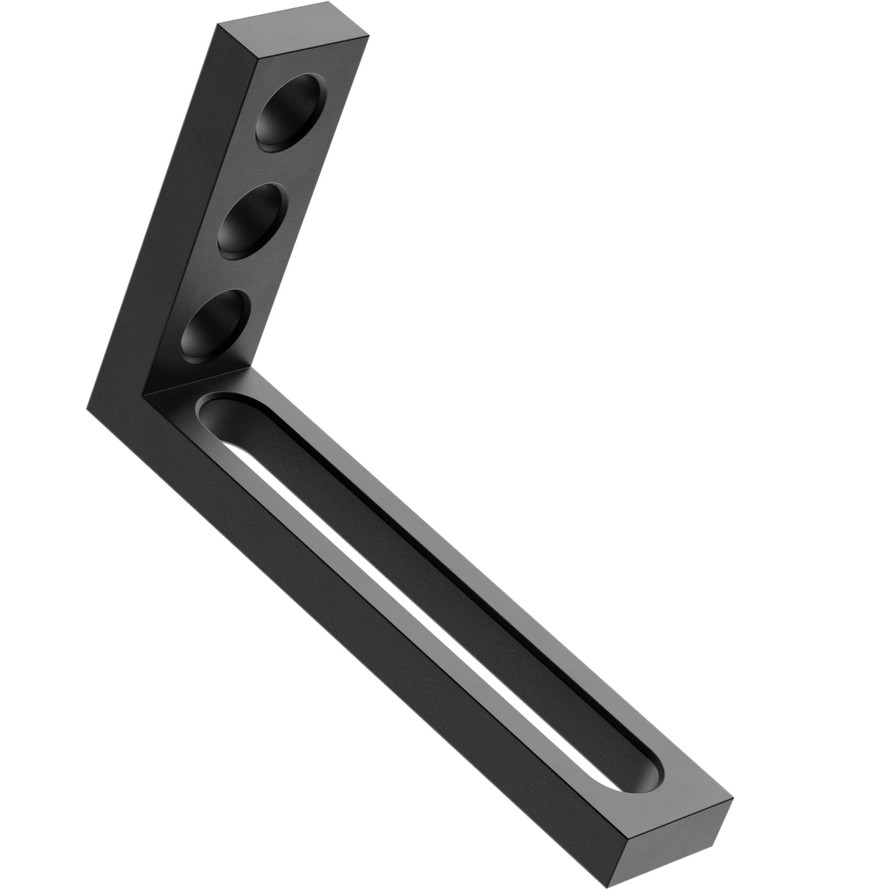

BuildPro® Right Angle Brackets are precision-machined fixturing accessories designed to securely hold workpieces at a perfect 90° angle. The combination of precision holes and elongated slots provides virtually unlimited adjustment, making them ideal for positioning, squaring, and clamping components during welding and assembly.
Available in multiple sizes, these durable brackets are fully compatible with BuildPro® welding tables and fixturing systems.
Why Fabricators Choose BuildPro® Right Angle Brackets
- Precision 90° Alignment: Hold components square during welding and assembly.
- Flexible Fixturing: Combination holes and slots allow virtually unlimited positioning.
- Heavy-Duty Construction: Built for repeated shop and production use.
- Compatible with BuildPro® Systems: Designed for use with BuildPro® welding tables and accessories.
Key Features
- Precision-machined 90° angle brackets
- Combination hole and slot design
- Provides accurate positioning and repeatability
- Heavy-duty steel construction
- Multiple sizes available
Available Sizes
| Part Number | Dimensions (L × W × H) | Plate Thickness | Holes | Slot Length | Weight |
|---|---|---|---|---|---|
| SHT-T50304 | 1.6" × 3.6" × 1.18" | 0.47" | 1 | 2.6" | 0.5 lb |
| SHT-T50305 | 3.6" × 3.6" × 1.18" | 0.47" | 3 | 2.6" | 0.7 lb |
| SHT-T50310 | 3.6" × 6" × 1.18" | 0.47" | 3 | 5" | 1.0 lb |
| SHT-T50330 | 12" × 6" × 2" | 0.47" | 11 | 5" | 4.5 lb |
Ideal For
- 90° fixture setup
- Frame fabrication
- Box and enclosure fabrication
- General welding and assembly
- Production fixturing
- Precision fabrication
Need More Support?
For heavy-duty fixturing applications requiring additional height and rigidity, consider using BuildPro® Riser Blocks.
Frequently Asked Questions
What are these brackets used for?
They hold workpieces at a precise 90° angle during welding, fabrication, and assembly.
Why do they have both holes and slots?
The combination allows for nearly unlimited positioning and adjustment when setting up fixtures.
Are they compatible with BuildPro® welding tables?
Yes. These brackets are designed specifically for BuildPro® fixturing systems and welding tables.
Which size should I choose?
Smaller brackets are ideal for light fabrication, while the larger T50330 provides increased rigidity and support for larger workpieces.
