Strong Hand Tools® BuildPro™ 6.5' × 38" Welding Table with Standard Finish (Select Leg Style)
Professional fixturing performance with the flexibility to match your workflow.
The Strong Hand Tools® BuildPro™ 6.5' × 38" Welding Table provides a rigid, precision-machined work surface for fabrication, welding, and assembly. Its modular design allows you to quickly position, clamp, and fixture workpieces using the complete line of BuildPro™ accessories, helping improve productivity and repeatability on projects of every size.
Choose from multiple leg configurations to create the ideal workstation for your shop. This model features the standard steel finish, making it an economical choice for fabricators who do not require the added corrosion and spatter resistance of the nitrided surface.
Why Fabricators Choose BuildPro™
- Precision Fixturing Surface: Accurate hole pattern for repeatable setups.
- Modular Design: Configure your workstation for virtually any fabrication project.
- Multiple Leg Options: Select the working height and mobility that fits your shop.
- BuildPro™ Compatible: Works with the complete BuildPro™ fixturing system.
Key Features
- 6.5' × 38" professional welding table
- 5/8" thick precision steel tabletop
- 5/8" fixturing holes
- 2" × 2" hole grid pattern
- 1.7" slots between plates for versatile clamping
- Modular heavy-duty construction
- Compatible with all BuildPro™ clamps and accessories
Available Leg Styles
- Fixed Legs
- Nomad Legs
- Adjustable Legs
- Adjustable Legs with Casters
Specifications
| Part Number | Leg Style | Table Height | Gross Weight | Capacity Per Leg |
|---|---|---|---|---|
| SHT-TMA57838 | Fixed Legs | 36.5" | 819 lbs (371 kg) | 1,500 lbs (680 kg) |
| SHT-TMB57838 | Nomad Legs | 30.5" | 807 lbs (366 kg) | 1,500 lbs (680 kg) |
| SHT-TMR57838 | Adjustable Legs | 28.5"–38.5" | 840 lbs (381 kg) | 1,500 lbs (680 kg) |
| SHT-TMRC57838 | Adjustable Legs with Casters | 33.25"–43.25" | 874 lbs (396 kg) | 650 lbs (295 kg) |
Standard Finish
This model features the standard steel finish and does not include the BuildPro™ Nitride Finish. If your application requires increased resistance to weld spatter, corrosion, and wear, consider the BuildPro™ Nitride Finish models.
Ideal For
- General fabrication
- Fixture building
- Automotive fabrication
- Repair and maintenance
- Manufacturing
- Educational welding programs
Shipping Information
- FREE Freight Shipping within the Contiguous United States.
- International customers are responsible for all freight charges, taxes, and import fees.
- Residential freight deliveries typically require a $75 lift-gate and delivery appointment fee charged by the carrier.
Frequently Asked Questions
What accessories fit this table?
The table is fully compatible with all BuildPro™ 5/8" clamps, stops, brackets, and fixturing accessories.
What is the difference between the Standard Finish and Nitride Finish models?
The Standard Finish provides the same precision tabletop and fixturing capabilities but does not include the nitriding treatment that improves resistance to weld spatter, corrosion, and wear.
What leg styles are available?
Choose from Fixed Legs, Nomad Legs, Adjustable Legs, or Adjustable Legs with Casters.
Can the table be moved around the shop?

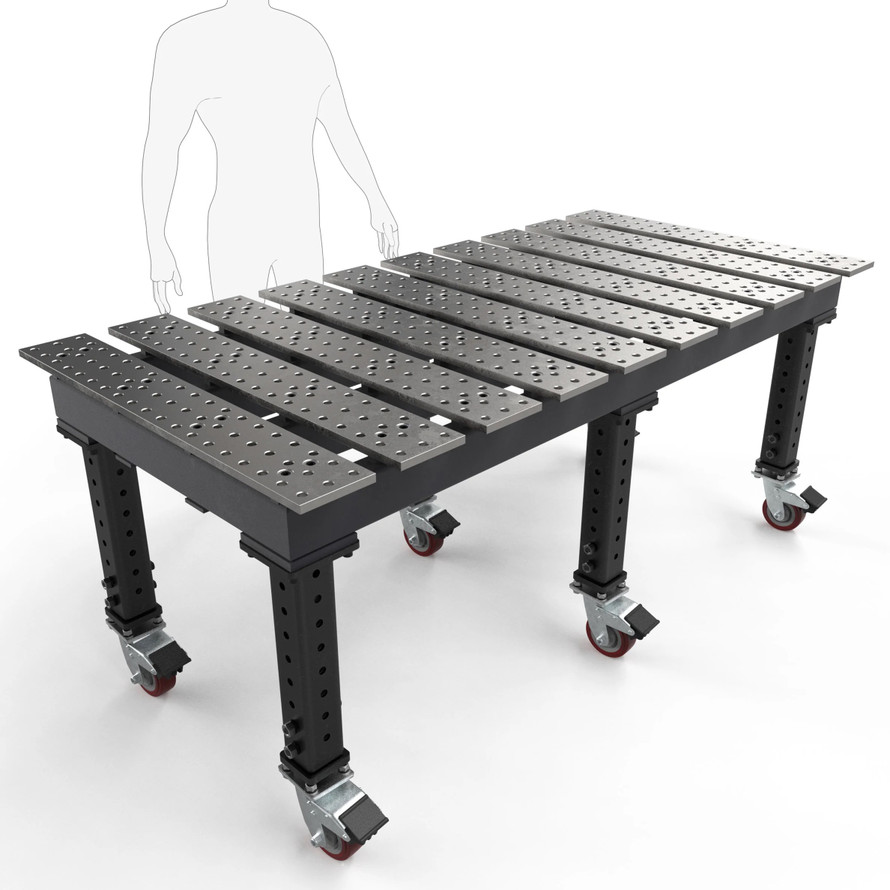

Yes. The Adjustable Legs with Casters option provides mobility while maintaining a stable working platform when locked in place.
What is the hole spacing?

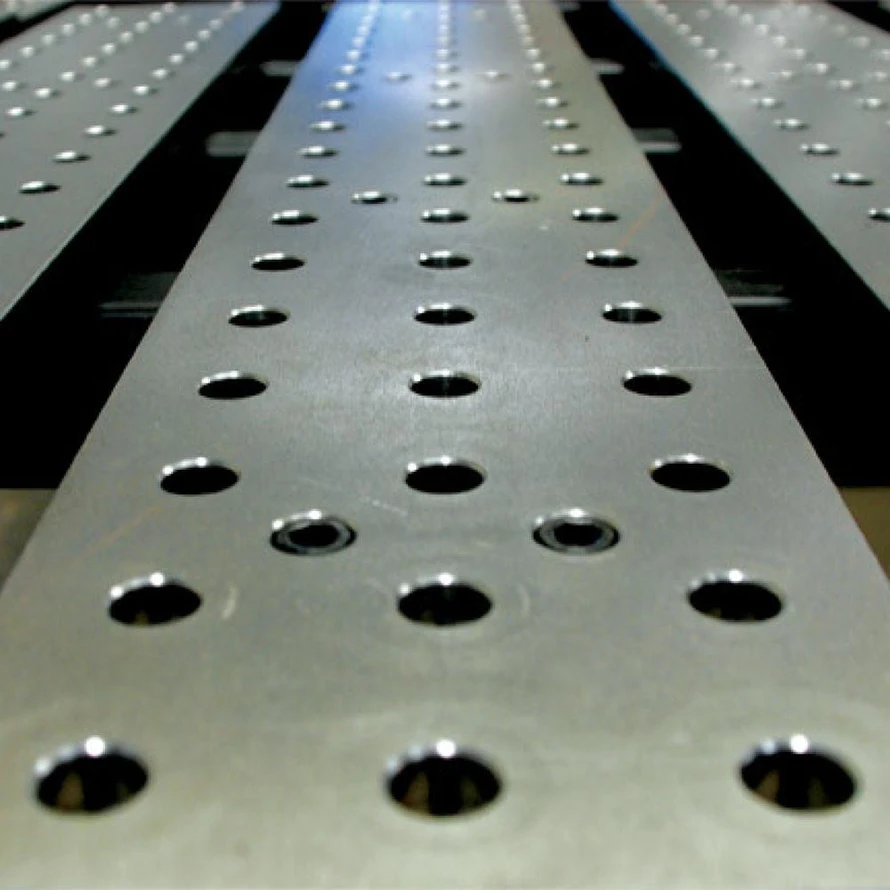

The tabletop features precision 5/8" holes on a 2" × 2" grid pattern with 1.7" slots between plates for versatile fixturing.
-
Table Flatness
±0.005 per 24″ x 24″ -
Hole Spacing
2.000″ ±0.001 -
Hole Diameter
0.625″ +.002/-.000 -
Plate Thickness
0.630″ ±0.004 -
Slot
1.7″
