StrongHand Tools

BuildPro™ 2' (0.56m) x 3' Welding Table - Nitride Finish

(No reviews yet) Write a Review
MPN:
TMQB52238
Minimum Purchase:
1 unit
  • StrongHand Tools BuildPro™ 2' (0.56m) x 3' Welding Table - Nitride Finish
  • StrongHand Tools BuildPro™ 2' (0.56m) x 3' Welding Table - Nitride Finish
  • StrongHand Tools BuildPro™ 2' (0.56m) x 3' Welding Table - Nitride Finish
  • StrongHand Tools BuildPro™ 2' (0.56m) x 3' Welding Table - Nitride Finish
  • StrongHand Tools BuildPro™ 2' (0.56m) x 3' Welding Table - Nitride Finish
  • StrongHand Tools BuildPro™ 2' (0.56m) x 3' Welding Table - Nitride Finish
$1,510.00 - $1,790.00

Description

StrongHand Tools® BuildPro™ 22" (0.56m) x 38" (0.96m) Welding Table With Nitride Finish (Select Leg Style From Menu Above)

Part # -- Dimensions -- Gross Weight -- Capacity per leg
SHT-TMQA52238 -- 22" (559mm) x 38" (965mm) -- 306 lbs (139kg) -- 1,500 lbs (680kg) Capacity per leg
SHT-TMQB52238 -- 22" (559mm) x 38" (965mm) -- 278 lbs (126kg) -- 1,500 lbs (680kg) Capacity per leg
SHT-TMQR52238 -- 22" (559mm) x 38" (965mm) -- 320 lbs (145kg) -- 1,500 lbs (680kg) Capacity per leg
SHT-TMQRC52238 -- 22" (559mm) x 38" (965mm) -- 343 lbs (156kg) -- 650 lbs (295kg) Capacity per leg

The very practical, modular design of the BuildPro™ Table makes it easy to set-up and tear down for job at hand, big or small. Save time and money by holding, positioning and locating quickly and easily with a wide variety of BuildPro™ clamps and accessories.

All BuildPro™ Tabletops below have 5/8 thick steel plate, with 5/8Ø holes in a 2" (50.8mm) grid pattern and 1.7" (43.2mm) slots between plates.

Table Surface Height:

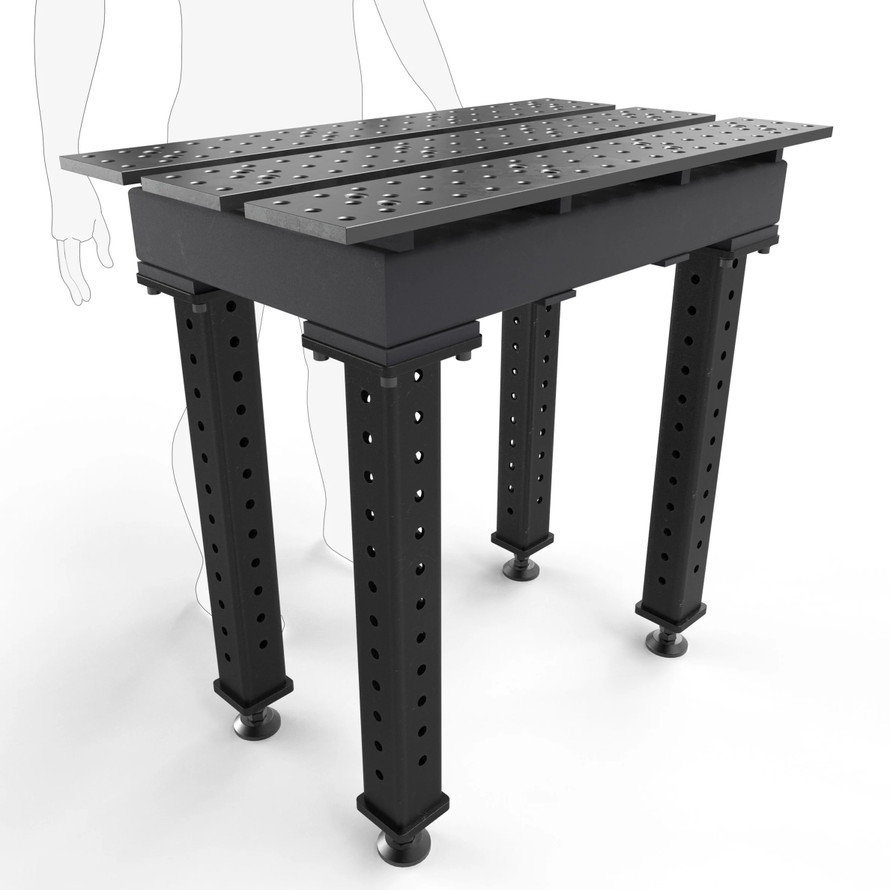

  • SHT-TMQA52238 - 36.5"

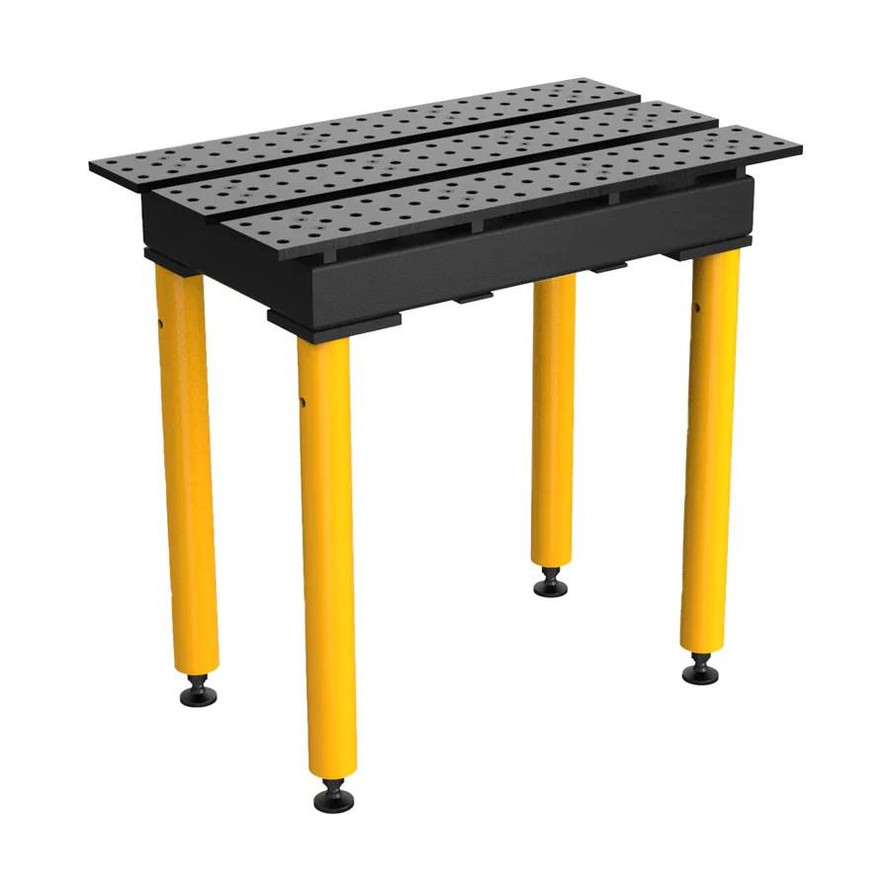

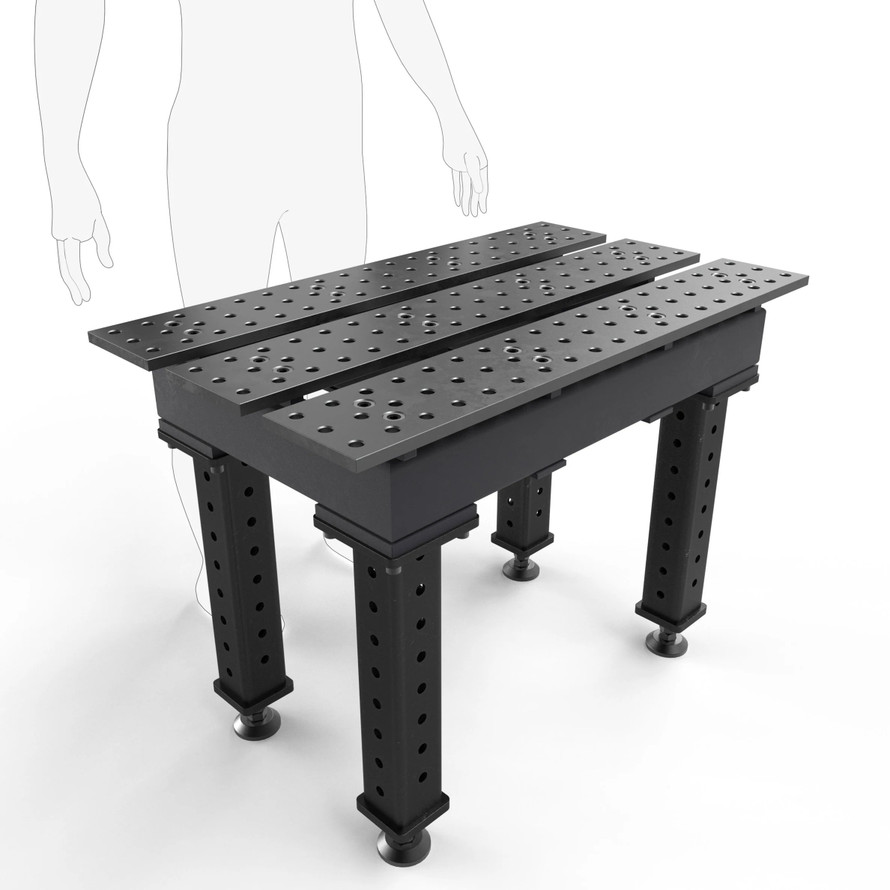

  • SHT-TMQB52238 - 30.5"

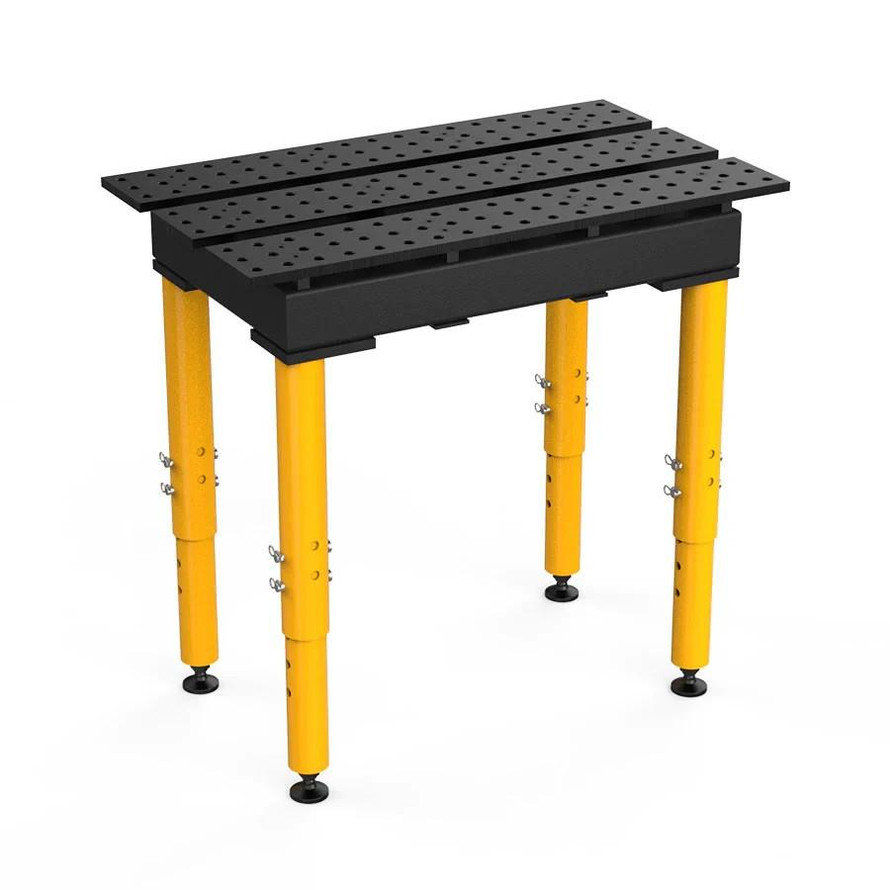

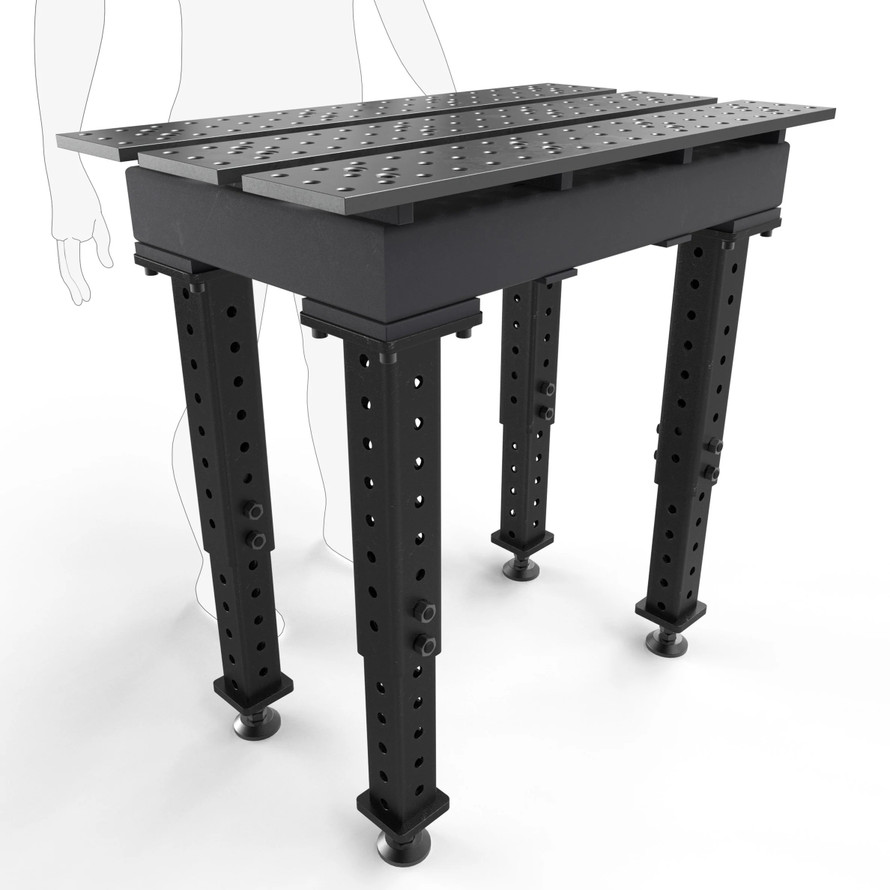

  • SHT-TMQR52238 - 28.5" to 38.5"

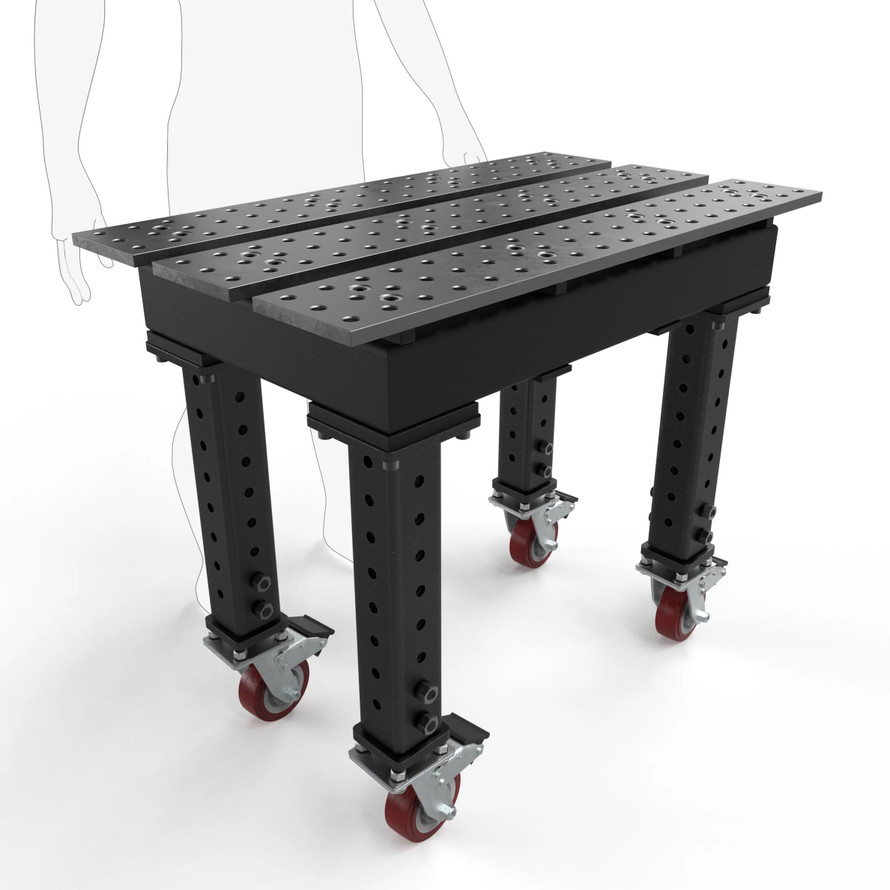

  • SHT-TMQRC52238 - 33.25" to 43.25"

The nitriding (heat-treating) process is a mechanical polish and post salt bath oxidative treatment. The benefits of this process include weld spatter resistance and corrosion and wear resistance.

  • Surface hardness: HRC 58
  • Coefficient of friction: 0.37
  • Nitriding case depth: 0.0004" - 0.0008"

Free Shipping* Within The Contiguous United States. For International Shipments, Customer Pays All Shipping, Taxes, and Fees.

*For Residential addresses, our freight partner charges $75 for lift gate and scheduling services.

View AllClose

Additional Information

Accessory Type:
Tables w/ Legs
Table Brand:
BuildPro
Table Hole Dia.:
5/8"
Table Finish:
Nitride
Table Size:
2'x 3'
