Description

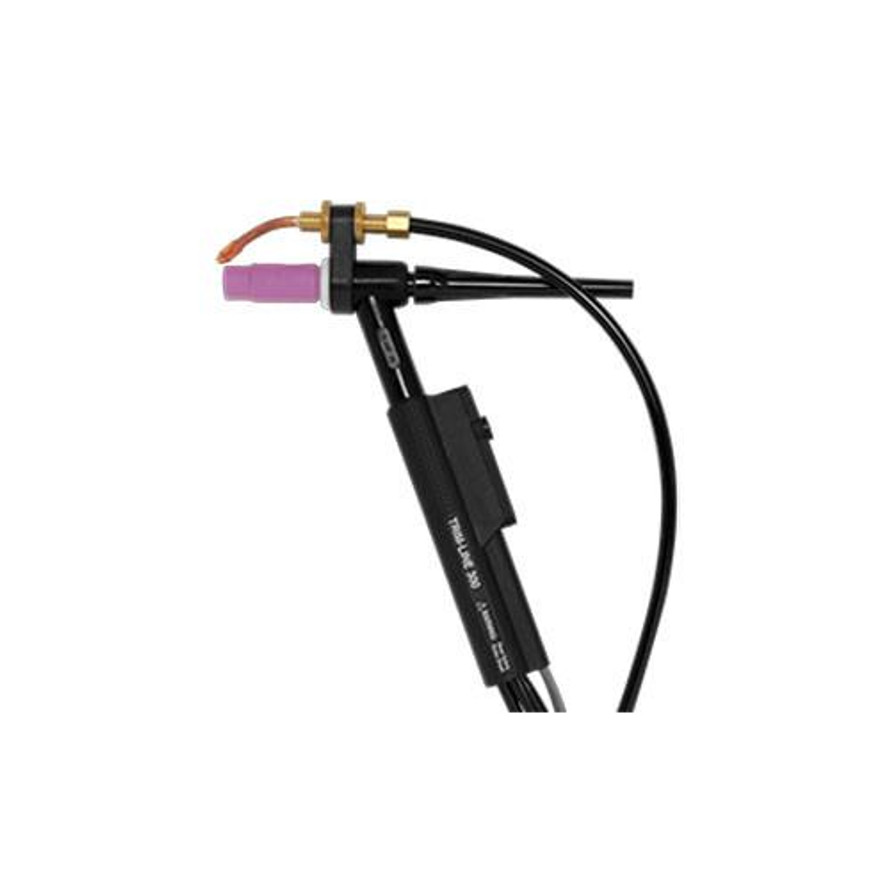

Torch Mounted Automatic Wire Feeder
This hand-held TIG torch with integrated wire feeder is used in conjunction with the WF-5 Cold Wire Feeder from CK Worldwide. Please select the Torch Style, wire size and wire type from the options above.
All selections are for water-cooled TIG torches with 12.5' (3.8m) superflex cables. Cable cover sold separately.
All of the torch package selections have standard threaded power, gas, and water fittings depending on which power source the TIG torch will be connected to, additional connector or adapter fittings may be required.
*Hard Wire refers to steel & Soft Wire refers to Aluminum
Torch Specifications:
| Torch Model | CK-180 Low Profile Torch | |||
|---|---|---|---|---|
| Amperage | 180 ACHF or DCSP @ 100% | Wire Type | Part # | |
| Water-cooled body | 60º head | .030" Hard | CK-CWH1812SF-030H | |
| Electrode capacity | .020" (.5mm) -- 3/32" (2.4mm) | .030" Soft | CK-CWH1812SF-030S | |
| Head size | 8 Series | .035" Hard | CK-CWH1812SF-035H | |
| Torch body weight | 1 oz. (28.3g) | .035" Soft | CK-CWH1812SF-035S | |
| Torch length | 8.25" (209.5mm) | .045" Hard | CK-CWH1812SF-045H | |
| Handle diameter | 3/4" (19.1mm) | .045" Soft | CK-CWH1812SF-045S | |
| Power Connection | 7/8"-14LH Male | 1/16" Hard | CK-CWH1812SF-116H | |
| Gas/ Water Connection | 5/8"-18RH Male / LH Male | 1/16" Soft | CK-CWH1812SF116S | |
| Torch Model | CK-230 Compact 2-Series Torch | |||
|---|---|---|---|---|
| Amperage | 300 ACHF or DCSP @ 100% | Wire Type | Part # | |
| Water-cooled body | 70º head | .030" Hard | CK-CWH2312SF-030H | |
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | .030" Soft | CK-CWH2312SF-030S | |
| Head size | 2 Series | .035" Hard | CK-CWH2312SF-035H | |
| Torch body weight | 3.75 oz. (106g) | .035" Soft | CK-CWH2312SF-035S | |
| Torch length | 8.25" (209mm) | .045" Hard | CK-CWH2312SF-045H | |
| Handle diameter | 1" (254mm) | .045" Soft | CK-CWH2312SF-045S | |
| Power Connection | 7/8"-14LH Male | 1/16" Hard | CK-CWH2312SF-116H | |
| Gas/ Water Connection | 5/8"-18RH Male / LH Male | 1/16" Soft | CK-CWH2312SF-116S | |
| Torch Model | CK-TL300 TrimLine 3-Series Torch | |||
|---|---|---|---|---|
| Amperage | 350 ACHF or DCSP @ 100% | Wire Type | Part # | |
| Water-cooled body | 70º head | .030" Hard | CK-CWHTL312SF-030H | |
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | .030" Soft | CK-CWHTL312SF-030S | |
| Head size | 3 Series | .035" Hard | CK-CWHTL312SF-035H | |
| Torch body weight | 5 oz. (141g) | .035" Soft | CK-CWHTL312SF-035S | |
| Torch length | 8" (203mm) | .045" Hard | CK-CWHTL312SF-045H | |
| Handle diameter | 1" (254mm) | .045" Soft | CK-CWHTL312SF-045S | |
| Power Connection | 7/8"-14LH Male | 1/16" Hard | CK-CWHTL312SF-116H | |
| Gas/ Water Connection | 5/8"-18RH Male / LH Male | 1/16" Soft | CK-CWHTL312SF-116S | |
| Torch Model | CK-350 Heavy Duty 3-Series Torch | |||
|---|---|---|---|---|
| Amperage | 400 ACHF or DCSP @ 100% | Wire Type | Part # | |
| Water-cooled body | 70º head | .030" Hard | CK-CWH3512SF-030H | |
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | .030" Soft | CK-CWH3512SF-030S | |
| Head size | 3 Series | .035" Hard | CK-CWH3512SF-035H | |
| Torch body weight | 6.5 oz. (184g) | .035" Soft | CK-CWH3512SF-035S | |
| Torch length | 9.5" (241mm) | .045" Hard | CK-CWH3512SF-045H | |
| Handle diameter | 1-1/8" (286mm) | .045" Soft | CK-CWH3512SF-045S | |
| Power Connection | 7/8"-14LH Male | 1/16" Hard | CK-CWH3512SF-116H | |
| Gas/ Water Connection | 5/8"-18RH Male / LH Male | 1/16" Soft | CK-CWH3512SF-116S | |
