Description
Digital Infinity Auto-Darkening Welding Helmet, Clearlight 2.0 (Select Your Helmet Style From The Options Above)
Key Features:
- ClearLight™ 2.0 Lens Technology provides advanced highdefinition optics for the most realistic view that’s clearer and brighter— before, during and after every weld.
- 3.0 Light State allows operators to keep their hood down, improving safety and productivity.
- 13.4 sq. in. Viewing Area
- AutoSense™ reduces issues related to setting helmet sensitivity by allowing the welder to push and hold the AutoSense button to automatically set the helmet sensitivity for their environment.
- Four Arc Sensors and Four Modes: weld, cut, grind and X-Mode. X-Mode electromagnetically senses the weld to reduce sunlight interference and continuously detects the arc even if sensors are blocked.
- Digital Controls easily allow welder to make precise lens adjustments to shade, delay and sensitivity.
- Memory Function for easy switching between two preset customized memory settings.
- Half-Shade Settings for precise lens adjustment.
- Quick Release cover lens.

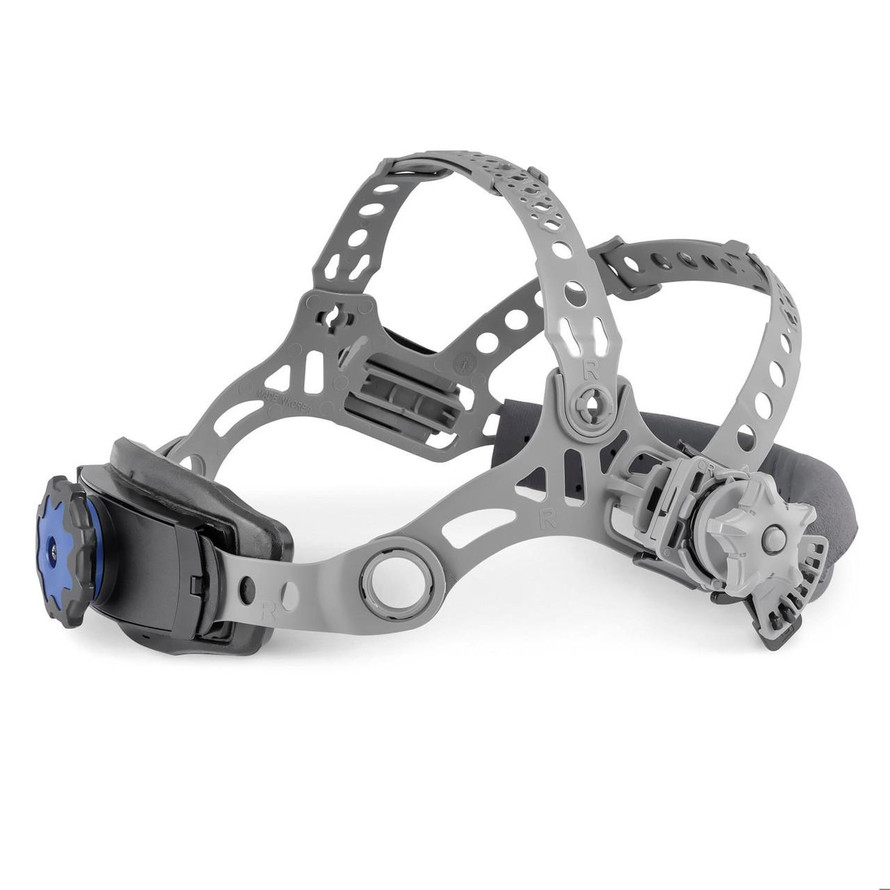

- Gen. 3.5 Headgear with comfort cushion has an ergonomic design that provides extensive adjustability, settings, and enhanced support.
- 4 Year Warranty
- Features InfoTrack™ advanced lens technology:
• Tracks and displays arc time
• Allows operator to set time, alarm, and timer
• Provides multi-language help menu - Auto-On/Off power control triggers lens at the strike of an arc
- Sensitivity and Delay Control - .10 – 1.0 sec
- Lithium Batteries (2) – with solar assist; up to 3,000 hours
- Meets ANSI Z87.1+ CSA standards
- Included:
- 5 outside HDV cover lenses
- 2 inside cover lenses
- Helmet bag
- Clip-on top comfort cushion
Specifications:
|
Operating Modes & Shades |
Weld Shade (8-13) |
|---|---|
| Viewing Area | 13.4 sq. in. (86.45 sq. cm) |
| Switching Speed | 1/25,000 sec |
| Color Patterns | Black |
| Delay Control | Yes |
| Digital | Yes |
| Grind Mode | Yes |
| Low Amp TIG Rated | Yes |
| Sensitivity Control | Yes |
| Light State | 3.0 |
| Optical Clarity | 1/1/1/2 |
| Low Battery Indicator | Yes |
| Shell Material | Nylon |
| Arc Sensors | 4 |
| TIG Rating | <5 Amps |
| Weight | 23 oz. (650g) |
Choosing Welding Helmets and Goggles: PDF
We think you will find it interesting and informative!
Note MIL-289714 replaces part number MIL-280045.
