Description
CK-XL200

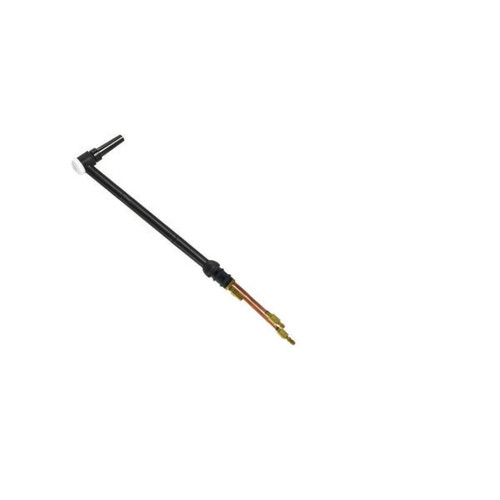

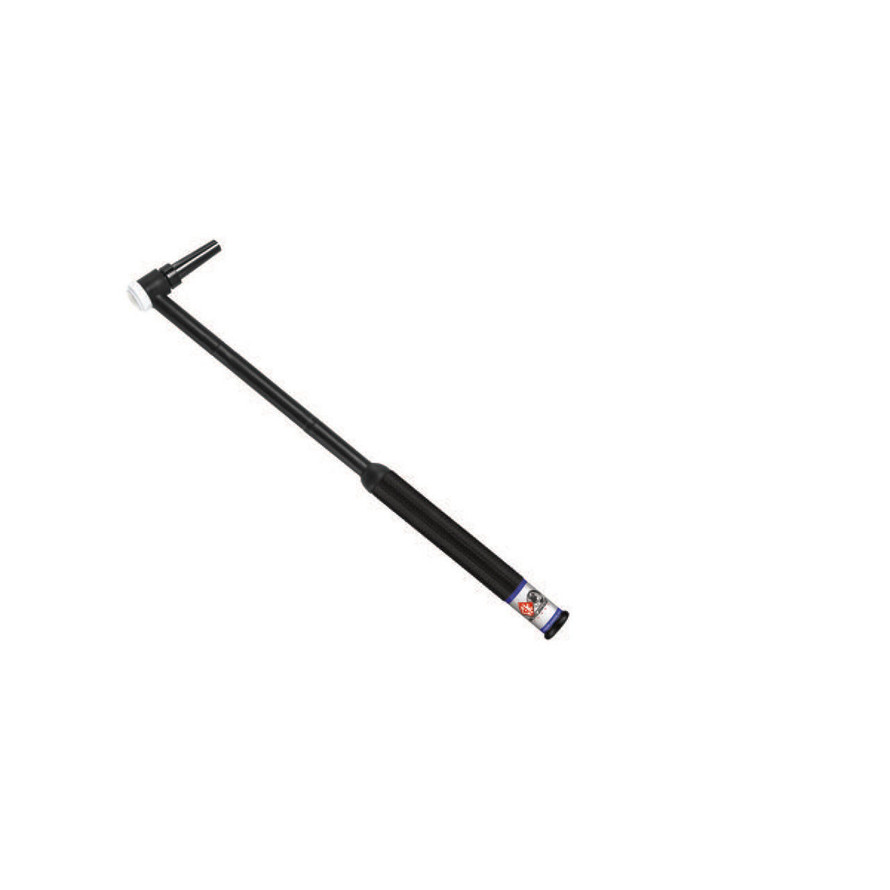

7-1/2" Long Neck 250 Amp Water-Cooled TIG Torch Body with Rigid 60o Head.
Torch body uses 2-Series (9/20 Series) front end parts and has a standard 1/4"-20RH Male power connection that uses standard, 2-series (20-series) 250A water-cooled power, water, & gas lines.
The CK-200 torch is interchangeable with CK-20, WP-20, and other 20-Series TIG Torches.
| Specifications: | CK-XL200 | |||
|---|---|---|---|---|
| Amperage | 250 amps ACHF or DCSP @ 100% | |||
| Water-Cooled body | 60o head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 3oz. (85g) | |||
| Torch length | 13" (330mm) | |||
| Handle diameter | 3/4" (190mm) | |||
| Power Connection | 1/4"-28RH Male | |||
| Gas Connection | 5/8"-18RH Female | |||
| Water Connection | 5/8"-18LH Female | |||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
20 Style
|
|
Torch Model:
|
Specialty Torches
|
|
Amperage Rating:
|
200 - 310 Amp
|
