Description

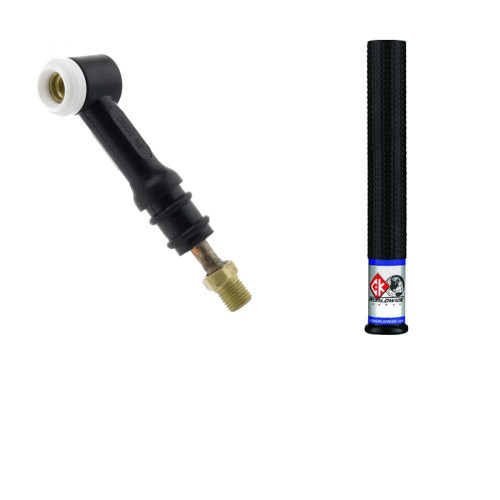

CK-100-HDL
The CK-100-HDL series is a well-balanced, lightweight TIG torch body with Handle, designed for welding thin gauge materials and is small enough to get into confined areas like tube clusters, tanks, manifolds, and is great for sheet metal repairs etc.
| Specifications: | CK-100 | |||
|---|---|---|---|---|
| Amperage | 125 amp ACHF or DCSP @ 100% | |||
| Air-Cooled body | 70º head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 1 oz. (28.3g) | |||
| Torch length | 7.63" (193.8mm) | |||
| Handle diameter | 3/4" (19.1mm) | |||
| Power Connection | Torch: 3/8"-24RH Female | Machine: 3/8"-24RH Female | ||
Additional Information
TIG Torch Type: |
Gas / Air Cooled |
TIG Process: |
Hand Held |
Torch Model: |
9 Style |
Amperage Rating: |
100 - 130 Amp |
