Description

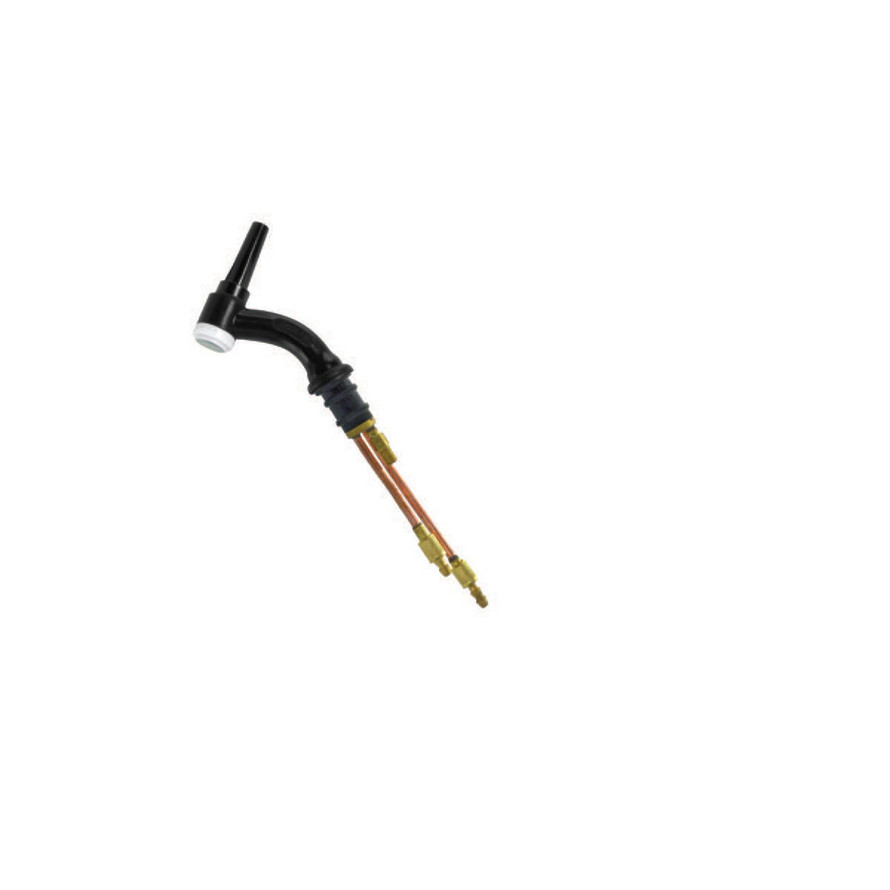

CK-230 FX
2 Series Compact Flexible Head 300 Amp Water-Cooled TIG Torch.
Torch body uses 2-Series (9/20 Series) front end parts and has a proprietary female power connection that uses the CK-2312PCSF or CK-2325PCSF power cable and standard 2-series (20-series) water, & gas lines.
| Specifications: | CK-230 FX | |||
|---|---|---|---|---|
| Amperage | 300 Amp ACHF or DCSP @100% Duty Cycle. | |||
| Water-Cooled body | Flexble Head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 3.75oz. (106g) | |||
| Torch length | 8.25" (209mm) | |||
| Handle diameter | 9/10" (229mm) | |||
| Power Connection | 7/8"-14LH Male | |||
| Gas Connection | 5/8"-18RH Male | |||
| Water Connection | 5/8"-18LH Male | |||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Water Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
20 Style
|
|
Amperage Rating:
|
200 - 310 Amp
|
