Description
CK-150 FX

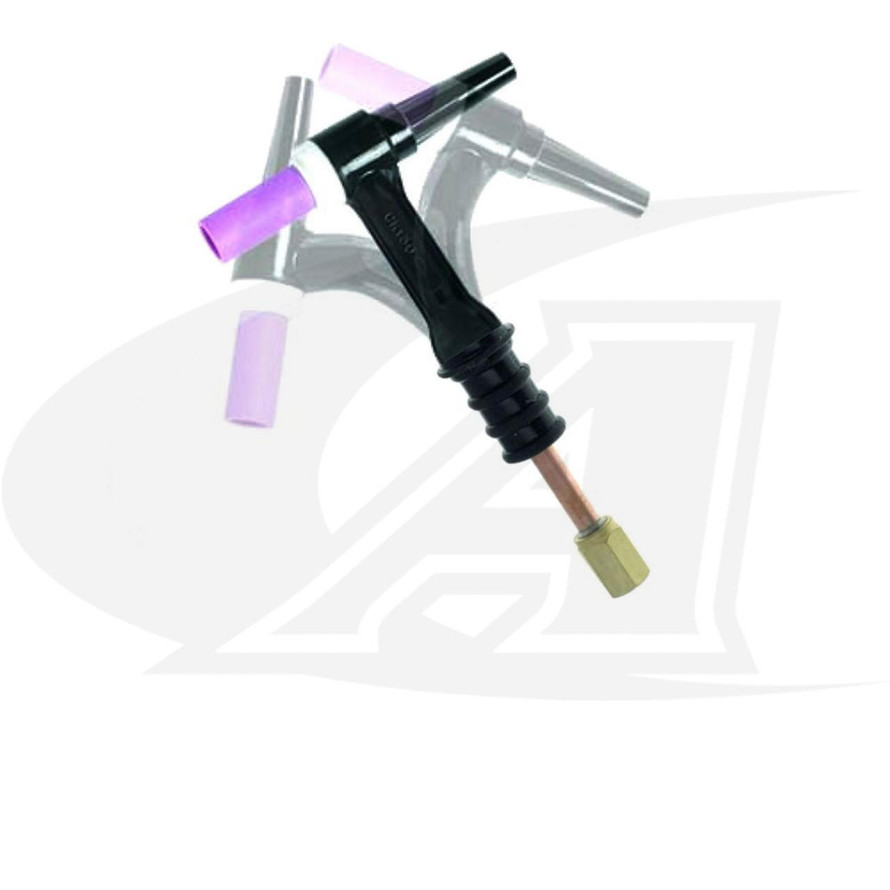

3 Series Compact design 150 Amp Air-Cooled TIG Torch Body With Flexible 70° Head for general purpose welding. The CK-150 FX series is a well-balanced, lightweight torch body.
Torch uses standard 3-Series (17/18/26 series) front end parts and has a 3/8"-24RH Female power connection which uses standard 150A air-cooled power cables: CK-1512PCSF, CK-1525PCSF, CK-1550PCSF, 57Y01R, 57Y03R, or 57Y03R-L50.
| Specifications: | CK-150 FX | |||
|---|---|---|---|---|
| Amperage | 150 Amp ACHF or DCSP @100% Duty Cycle | |||
| Air-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 5 oz. (141g) | |||
| Torch length | 8.75" (222.3mm) | |||
| Handle diameter | 9/10" (22.9mm) | |||
| Power Connection | Torch: 3/8"-24RH Female | Machine: 3/8"-24RH Female | ||
Additional Information
TIG Torch Type: |
Gas / Air Cooled |
TIG Process: |
Hand Held |
Torch Model: |
17 Style |
Amperage Rating: |
150 - 200 Amp |
