Description

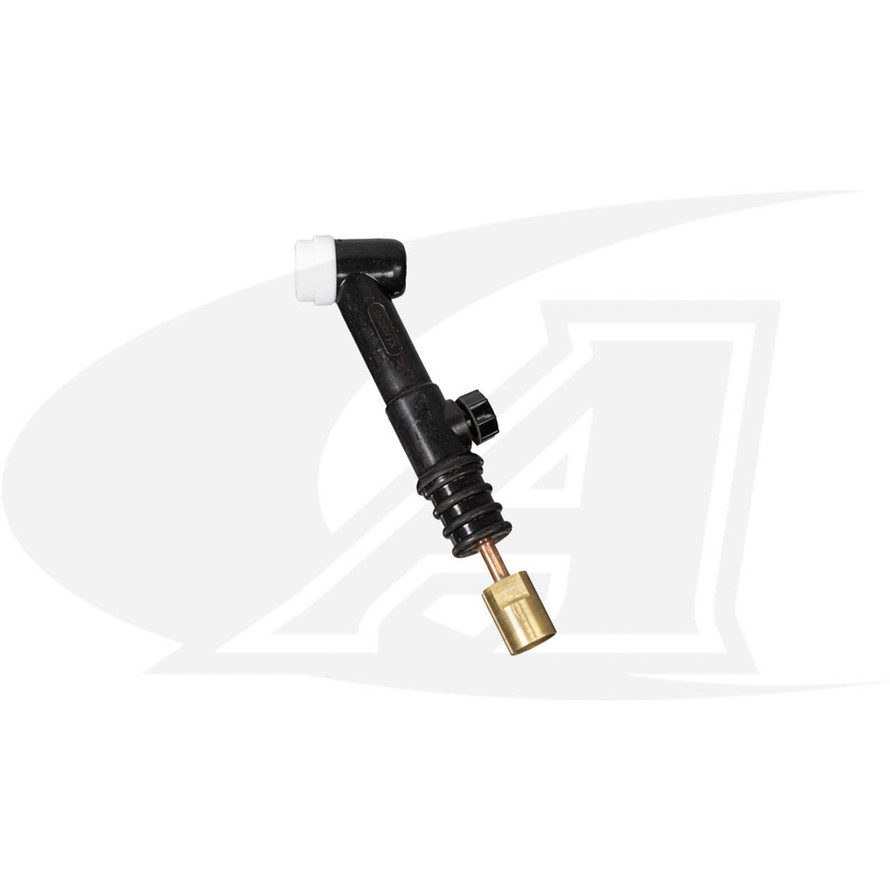

CK-210V FX
3 Series 200 Amp Air-Cooled, TrimLine™ TIG Torch Body with Gas Valve, Flexible 70° Head for one-piece cable.
This torch uses standard 3-Series (17/18/26 series) front end parts and has a 5/8"-18RH Male power connection .
| Specifications: | CK-210V FX | |||
|---|---|---|---|---|
| Amperage | 200 Amp ACHF or DCSP @100% Duty Cycle. | |||
| Air-cooled body | 70º head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 7.5 oz. (212g) | |||
| Torch length | 10.38" (264mm) | |||
| Handle diameter | 11/10" (27.94mm) | |||
| Power Connection | Torch: 5/8"-18RH Female | Machine: 5/8"-18RH Male | ||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
26 Style
|
|
Amperage Rating:
|
150 - 200 Amp
|
