Description

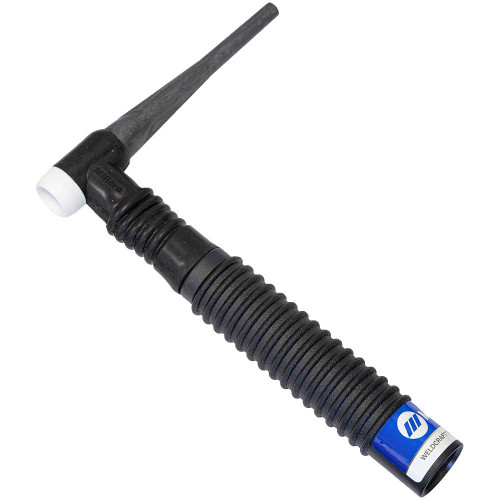

A-200 Flex HDL (WP-26F-HDL)
General purpose 200 Amp Air-Cooled Flexible Head TIG Torch Body with Handle.
The WP-26F-HDL is a well-balanced, general use torch body complete with handle.
| Specifications: | A-200 Flex HDL (WP-26F-HDL) | |||
|---|---|---|---|---|
| Amperage | 200A DCSP, 150A ACHF @ 60% Duty Cycle | |||
| Air-Cooled body | Flexible head | |||
| Electrode capacity | .020" (.5mm) -- 5/32" (4.0mm) | |||
| Head size | 3 Series | |||
| Torch body weight | 10 oz. (283.4g) | |||
| Torch length | 8-1/2" (215.9mm) | |||
| Handle diameter | 1-1/4" (31.7mm) | |||
| Power Connection | Torch: 5/8"-18RH Male | Machine: 7/8"-14RH Male | ||
Additional Information
TIG Torch Type: |
Gas / Air Cooled |
TIG Process: |
Hand Held |
Torch Model: |
26 Style |
Amperage Rating: |
150 - 200 Amp |
