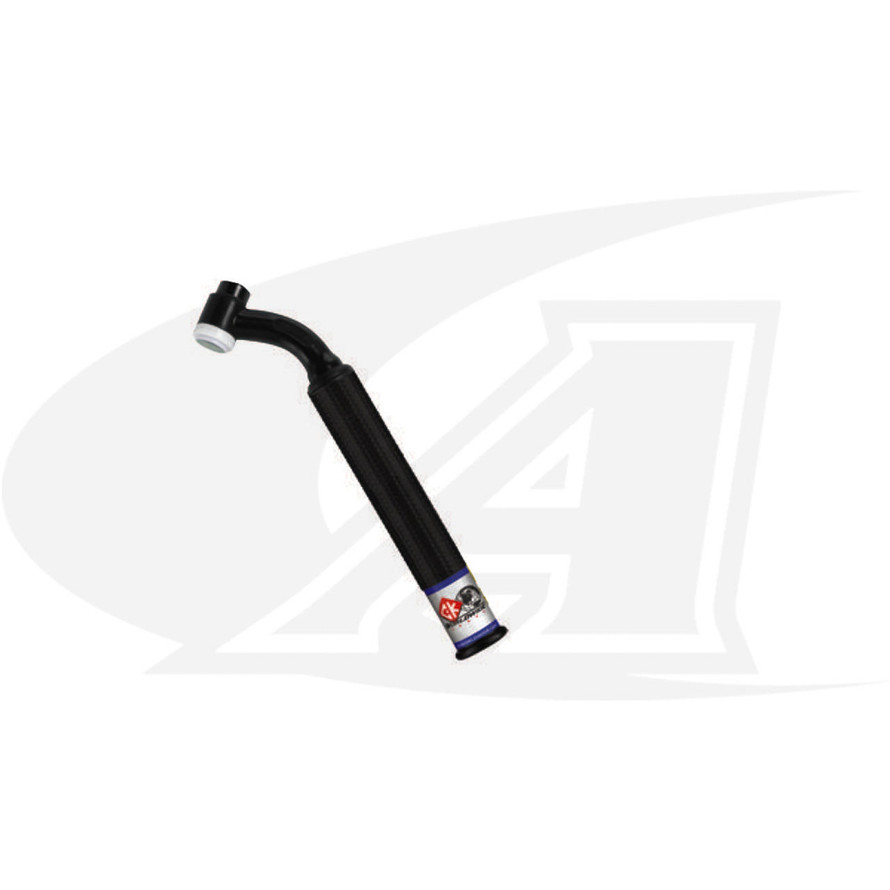

Flexible Head 3 Series Water-Cooled 350Amp TIG Torch Body, Handle

(No reviews yet) Write a Review
Minimum Purchase:
1 unit
  • CK Worldwide Flexible Head 3 Series Water-Cooled 350Amp TIG Torch Body, Handle
  • CK Worldwide Flexible Head 3 Series Water-Cooled 350Amp TIG Torch Body, Handle
  • CK Worldwide Flexible Head 3 Series Water-Cooled 350Amp TIG Torch Body, Handle
$120.00 - $130.00

Description

CK-300 FX

3 Series 350 Amp Water-Cooled TIG Torch Body with Flexible 70o Head.

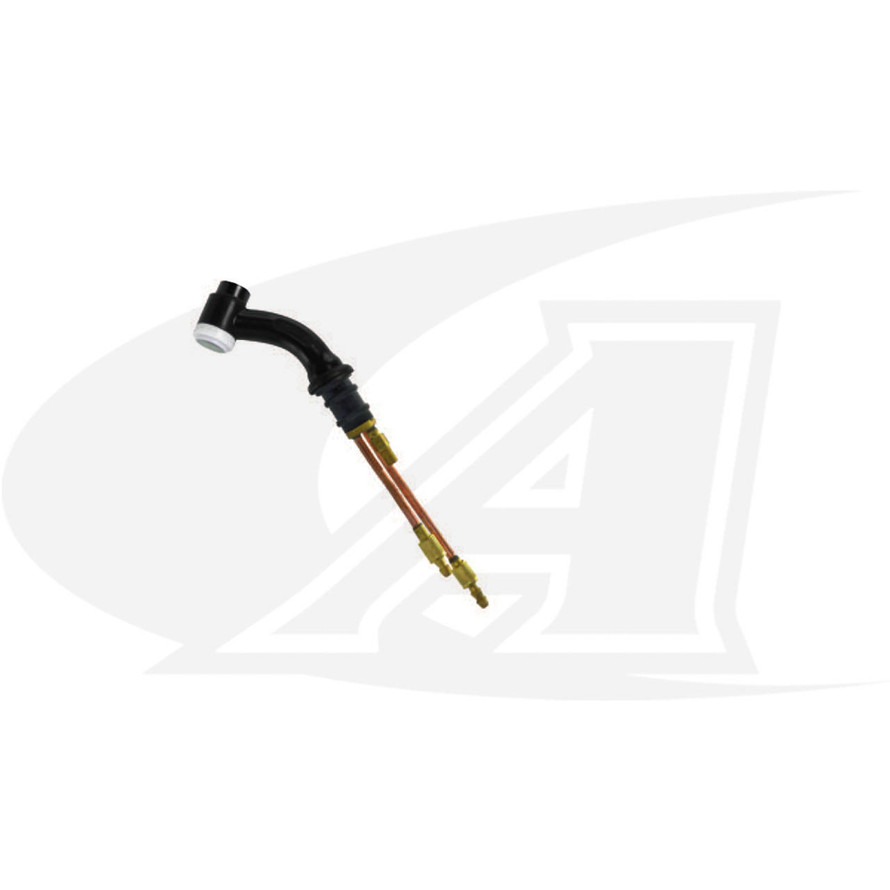

Torch body uses 3-Series (17/18/26 Series) front end parts and has a standard 3/8"-20LH Female power connection that uses standard, 3-series (18-series) water-cooled power, water, & gas lines.

Specifications: CK-300 FX
Amperage 350 Amp ACHF or DCSP @100% Duty Cycle.
Water-Cooled body 70o head
Electrode capacity .020" (.5mm) -- 5/32" (4.0mm)
Head size 3 Series
Torch body weight 6.5oz. (184g)
Torch length 9.5" (241mm)
Handle diameter 9/8" (286mm)
Power Connection 7/8"-14LH Male
Gas Connection 5/8"-18RH Male
Water Connection 5/8"-18LH Male
View AllClose

Additional Information

TIG Torch Type:
Water Cooled
TIG Process:
Hand Held
Torch Model:
18 Style
Amperage Rating:
>350 Amp
