Description
CK-200V FX

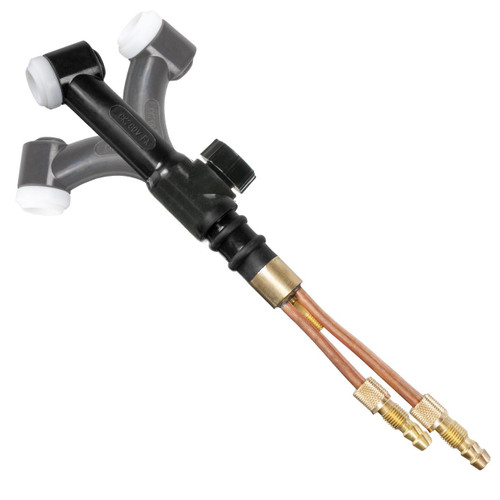

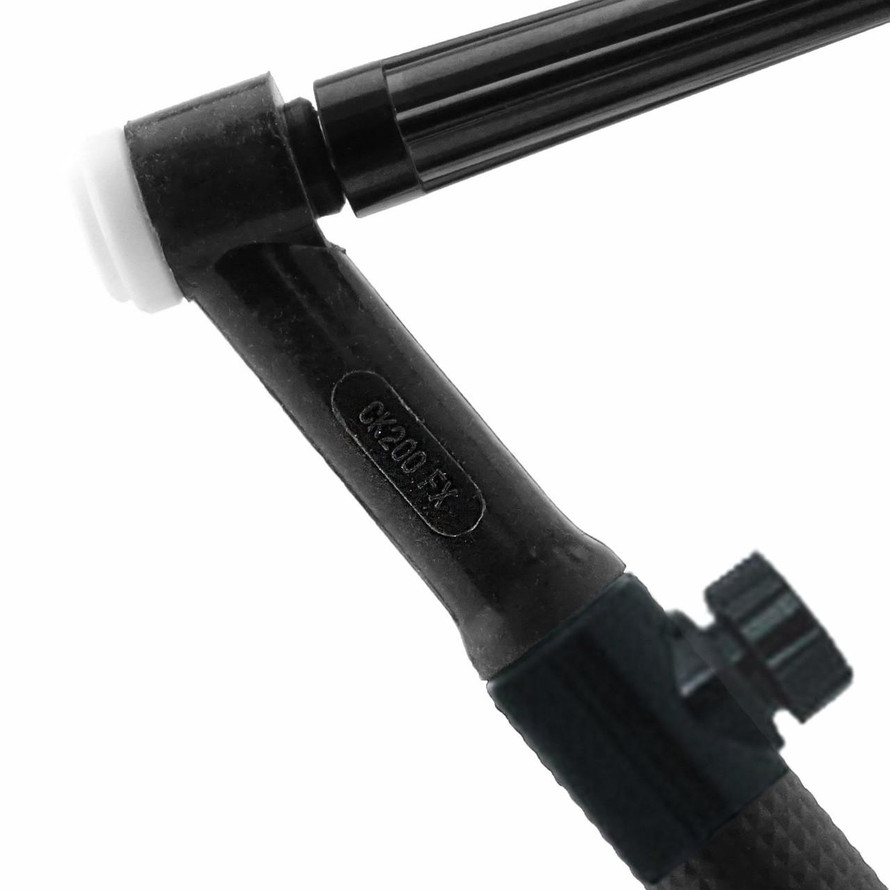

250 Amp Water-Cooled TIG Torch Body with Flexible 70o Head and Built-In Valve.
Torch body uses 2-Series (9/20 Series) front end parts.
The CK-200 torch is interchangeable with CK-20, WP-20, and other 20-Series TIG Torches.
| Specifications: | CK-200V FX | |||
|---|---|---|---|---|
| Amperage | 250 amps ACHF or DCSP @ 100% | |||
| Water-Cooled body | 70o head | |||
| Electrode capacity | .020" (.5mm) -- 1/8" (3.2mm) | |||
| Head size | 2 Series | |||
| Torch body weight | 3oz. (190g) | |||
| Torch length | 7.5" (190mm) | |||
| Handle diameter | 3/4" (190mm) | |||
| Power Connection | 7/8"-24LH Male | |||
| Gas Connection | 5/8"-18RH Male | |||
| Water Connection | 5/8"-18LH Male | |||
| Cable Length | N/A | N/A | 12.5' (3.8m) | 25' (7.6m) |
Additional Information
TIG Torch Type: |
Water Cooled |
Package Type: |
Torch Package |
TIG Process: |
Hand Held |
Torch Style: |
Compact |
Torch Model: |
20 Style |
Torch Model: |
CK-200 |
Amperage Rating: |
200 - 310 Amp |
