Gas Saver Deluxe Pro Kit™: 17, 18, 26 & 3 Series

(1 review) Write a Review
SKU:
CK-D4GS-PRO-DX
MPN:
D4GS-PRO-DX
Minimum Purchase:
1 unit
$410.00

Description

CK-D4GS-Pro-DX™

Deluxe Gas Saver Pro Kit™.  For CK- 3 Series and Weldcraft 17, 18, 26, CS300 & CS410 Model TIG Torches.

The Ultimate Box of High-Performance TIG Torch Accessory Parts -- Assembled by The TIG Welding Experts at Arc-Zone.com®.  Everything You Need To Optimize Your TIG Torch, and Get the Best Quality Welds -- Right out of the Box!

Extra Large Diameter Gas Saver Parts For Welding Stainless Steel, Titanium and Other Specialized Materials:

  • One Ea. .040" (1.0mm), 1/16" (1.6mm), 3/32" (2.4mm) and 1/8" (3.2mm) Wedge™ Collets and Extra  Large Diameter Tungsten Adapter with Screens.
  • One Ea. Collet Body.
  • Two Ea. Extra Large 1-1/8” Diameter Push-On Pyrex (Clear Glass) Nozzles for Improved Visibility & Gas Coverage.
  • One Ea. Extra Large Diameter Heat Shield.

Standard Diameter Gas Saver Parts:

  • One Ea. .040" (1.0mm), 1/16" (1.6mm), 3/32" (2.4mm) and 1/8" (3.2mm) Wedge™ Collets and Standard Tungsten Adapter with Screens.
  • One Ea. Collet Body.
  • One Ea. Standard Diameter Push-On Pyrex (Clear Glass) Nozzle for Improved Visibility & Gas Savings.
  • One Ea. No. 4 – 1/ 4” (6.4mm), No.5 - 5/16" (7.9mm), No.6 - 3/8" (9.5mm), No.7 - 7/16" (11.5mm) and No.8 – 1/2“ (13mm) Alumina (pink) Push-On Nozzles for use with Gas Saver™ parts.

Stubby Gas Saver Parts:
*These nozzles use the same Wedge™ Collets as the Large Diameter Gas Saver Nozzle Series.

  • One Ea. .040" (1.0mm), 1/16" (1.6mm), 3/32" (2.4mm) and 1/8" (3.2mm) Standard Tungsten Adapter with Screens.
  • One Ea. Collet Body.
  • One Ea. Standard Diameter Push-On Pyrex (Clear Glass) Nozzle for Improved Visibility & Gas Savings.
  • One Ea. No. 4 – 1/ 4” (6.4mm), No.5 - 5/16" (7.9mm), No.6 - 3/8" (9.5mm), No.7 - 7/16" (11.5mm) and No.8 – 1/2 “ (13mm) Alumina (pink) Push-On Nozzles for use with Gas Saver™ Parts.

Additional Torch Accessories:

  • One Ea. Long, Medium and Short Back Cap.
  • Two Ea. Spare Back Cap O-Rings.
  • One Ea. Teflon Heat Shield.
  • One Ea. ArcTime™ Brand Hybrid Formula "Multi-Use" Non-Radioactive Tungsten Electrodes Sizes: 040" (1.0mm), 1/16" (1.6mm), 3/32" (2.4mm) and 1/8” (3.2mm) diameter, 7" Long  -- Color Code: Sky Blue™.
  • High-Quality Storage Case and Lid Card with Part Number Reference for Easy Re-Ordering.

Bonus -- You Get a Handy TIG Welding Calculator -- and -- Joe Welder's™ "Guide to Optimizing Your TIG Torch" -- and -- The Popular Articles on "How-to-Select" -- and -- "How-to-Grind" Your Tungsten Electrodes for Optimum TIG Welding Performance!

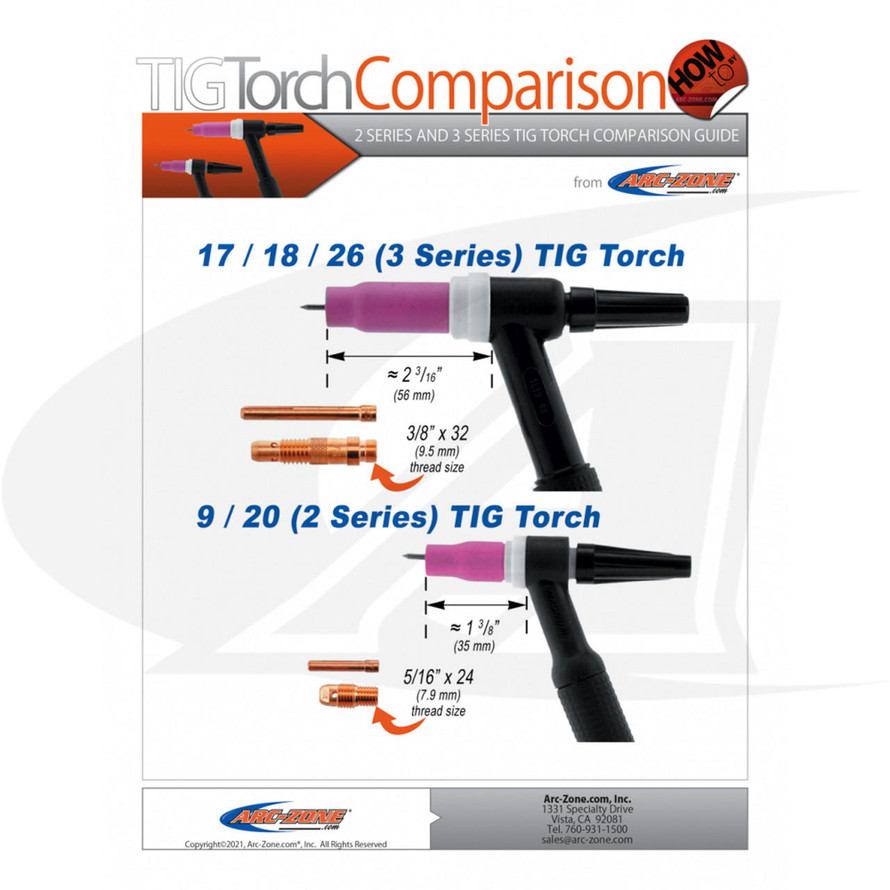

Parts Compatible with All Popular 3-Sereis, 17, 18, 26, CS300 & CS410 Series TIG Torches from Weldcraft, WeldTec, TecTorch, CK, Radnor, BestWelds, Master TIG, Profax etc.

View AllClose

Specifications

View AllClose

Additional Information

Product Type:
Gas Saver
Parts Style:
Pyrex Cups
Torch Model:
17 Style
Torch Model:
18 Style
Torch Model:
26 Style
Torch Model:
CS410
Torch Model:
CK-150
Torch Model:
CK-210 / TL210
Torch Model:
CK-300 / TL300
Torch Model:
CK-510
Torch Model:
23 Style Machine Torch
View AllClose

1 Review

  • 2

    Not so much a review of the kit itself which is a…

    Posted by Casey Rayman on Nov 20th 2011

    Not so much a review of the kit itself which is a great idea with all the things you need to stock up on when you get a new torch. The problem I have is with the gas saver system itself I think. The cups/screens are such a tight fit that once you assemble them(nearly impossible) you end up destroying them to change cups. The industry standard threaded gas lenses are much more user friendly if you weld a lot of different things and change cups often. Response from Arc-Zone: Make sure the screens are straight when you remove them from the package. You can move the screens by gently bending the stainless steel support washer that holds the screens together. When installing the Pyrex nozzle/cup, you will want to start with the cup at a 45 degree angle and insert the screen stack into the nozzle, then straighten the cup and gently push it home until it lands and seats on the teflon insulator.

View AllClose
