Description
Model "LRG" Rotary Grounds (Select Size From Options Above)
| Part # | Amperage | Cable Capacity | Connection Type | Number of Heads | Shaft Threads | Weight |
|---|---|---|---|---|---|---|
| LEN-LRG-240 (02510) | 800 Amp | 2 EA. 3/0 - 4/0 (70mm2-95mm2) | (2) Triple Oval-Point Screws | 1 | 1-3/8"-6 | 8.75 lbs (3.9kg) |
| LEN-LRG-440 (02520) | 1,500 Amp | 4 EA. 3/0 - 4/0 (70mm2-95mm2) | (4) Triple Oval-Point Screws | 2 | 1-3/8"-6 | 15.25 lbs (6.9kg) |
| LEN-LRG-640 (02530) | 2,000 Amp | 6 EA. 3/0 - 4/0 (70mm2-95mm2) | (6) Triple Oval-Point Screws | 3 | 1-3/8"-6 | 21.75 lbs (9.8kg) |

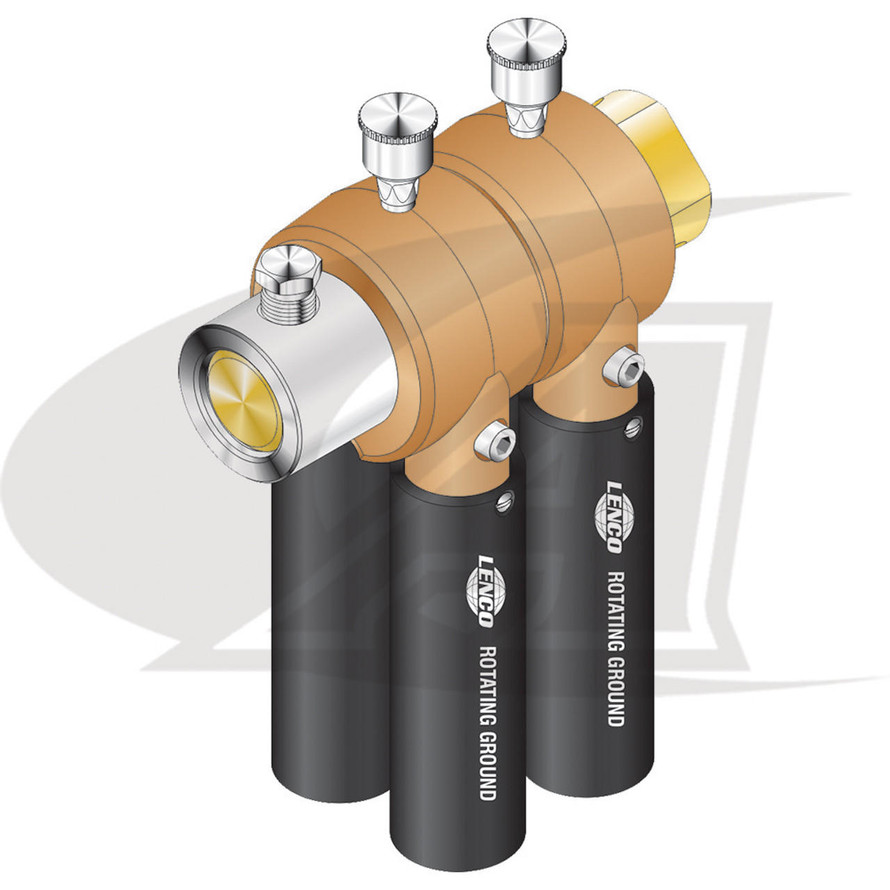

The Lenco heavy-duty rotating grounds range from 800 Amp to 2,000 Amp ratings.
Each ground can be permanently welded to the work or easily attached by using the LEN-G1500-138 or LEN-RBG1500-138 C-Clamps.
