Icengineworks 2 inch Header Full Fabrication System

From concept to finished header—faster, cleaner, and with less rework.
This complete Icengineworks fabrication system gives you everything you need to design, cut, and assemble custom exhaust headers and turbo manifolds with precision. From mock-up to final weld, each step is streamlined to save time, reduce waste, and improve fit-up accuracy.

The system combines modeling blocks, a precision cutting setup, and welding clamps—allowing you to move from design to finished metal with confidence.

Why Fabricators Choose This System

• Faster Layout: Design and visualize header routing quickly.
• Reduce Waste: Eliminate guesswork and minimize scrap.
• Accurate Fit-Up: Improve alignment before welding.
• Complete Solution: Includes modeling, cutting, and clamping tools.

How It Works

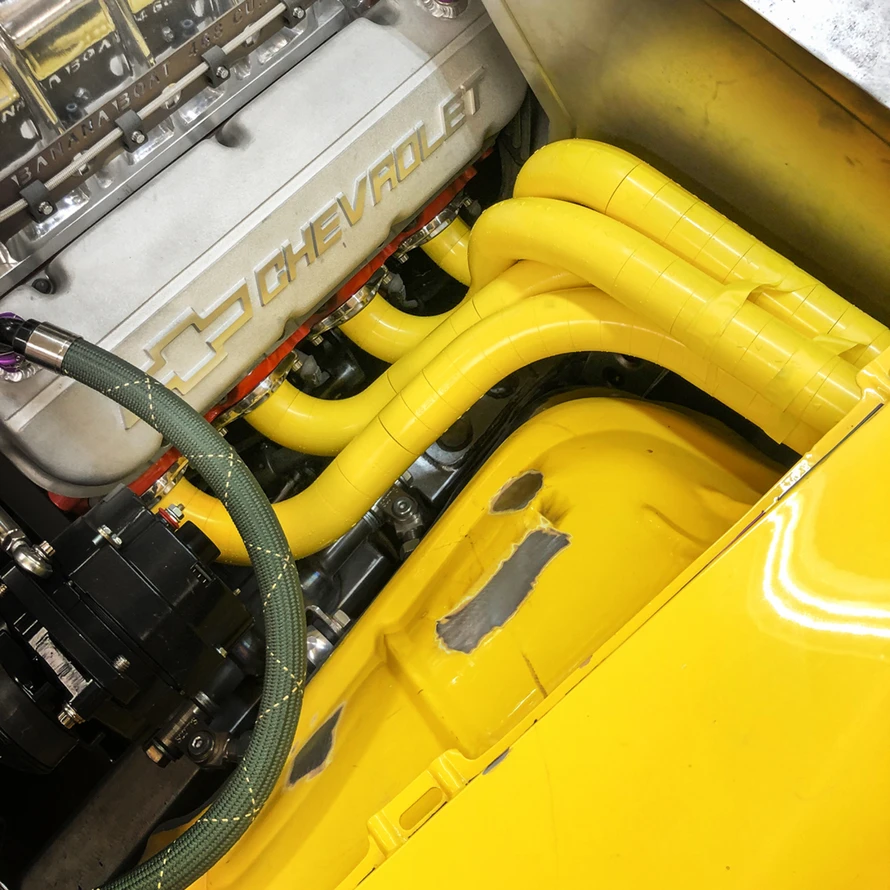

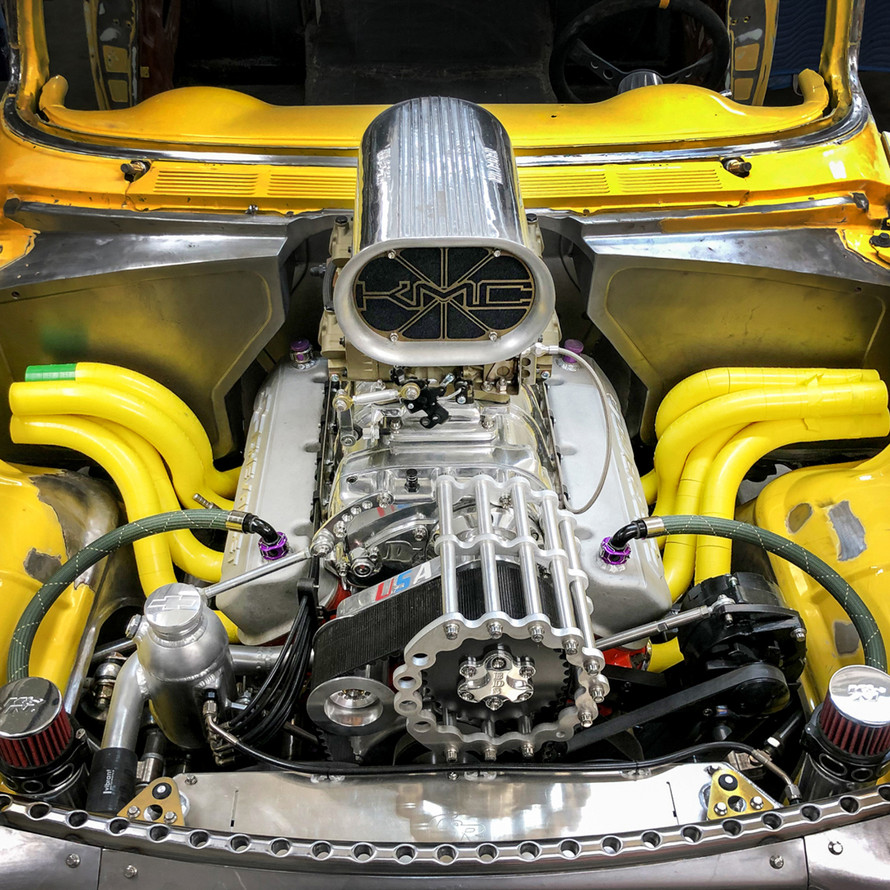

1. Build Your Header Design:

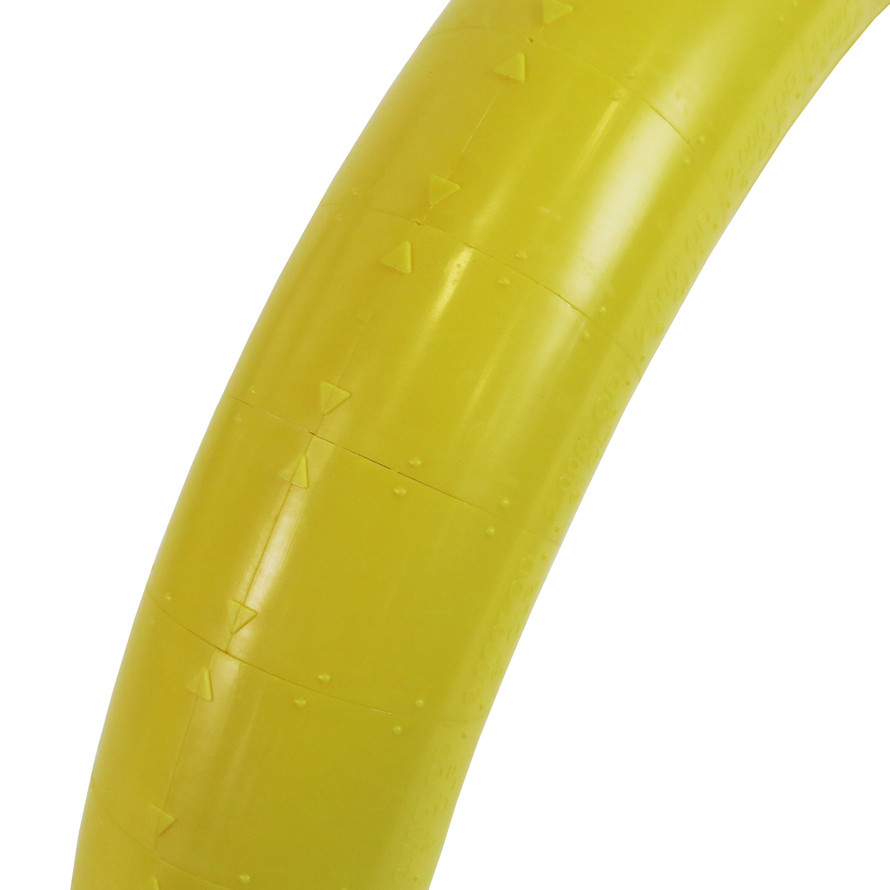

Snap together straight and curved modeling blocks to create header primaries. Each block represents a 1" arc length, allowing you to visualize routing and geometry. Different block sizes can be combined to simulate stepped headers.

2. Transfer to Steel Tubing:
Use the included aluminum cutting board and alignment blocks to duplicate your design using prebent U-bends and J-bends. The cutting board aligns with a vertical band saw fence for accurate, repeatable cuts.

3. Align and Tack Weld:
The included clamps hold tubing sections in place so you can preview, adjust, and clock each piece before welding—reducing the need for rework and improving final assembly accuracy.

Key Features

• Design and layout headers quickly and easily
• Blocks snap together for fast mock-up
• Each block represents a 1" arc length of tubing
• Supports stepped header design with multiple block sizes
• Precision cutting setup for accurate duplication in steel
• Clamps improve alignment and reduce welding errors

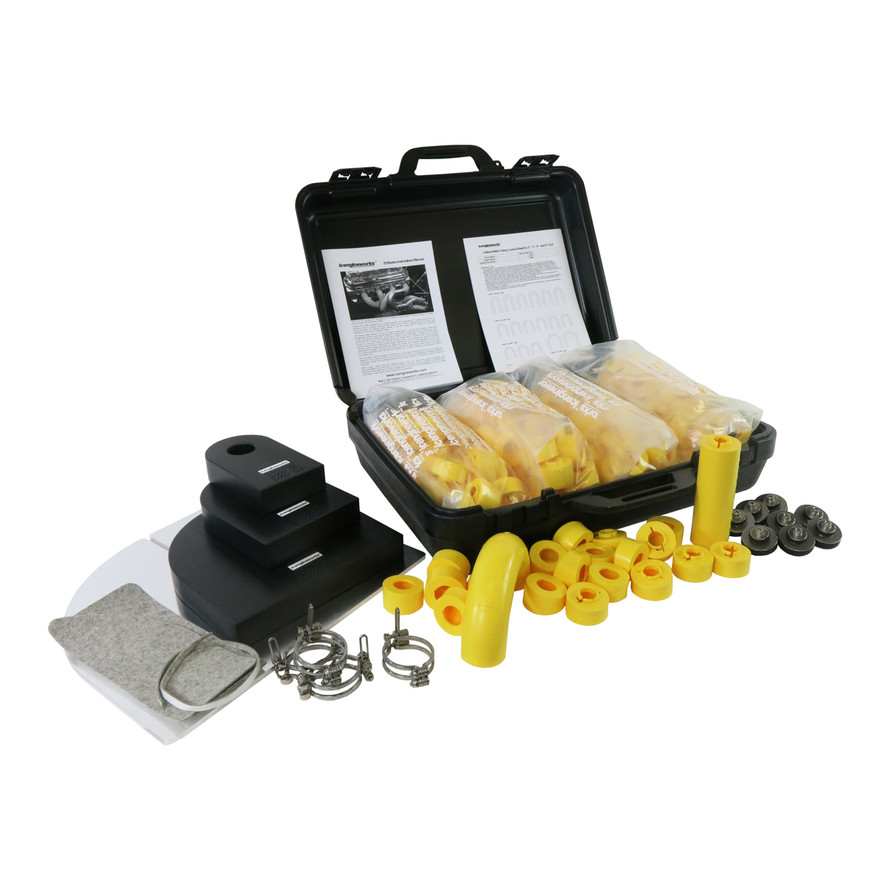

What’s Included

• (60) Straight Blocks, 2000-00
• (60) 3" Radius Blocks, 2000-30
• (60) 4" Radius Blocks, 2000-40
• (60) 6" Radius Blocks, 2000-60

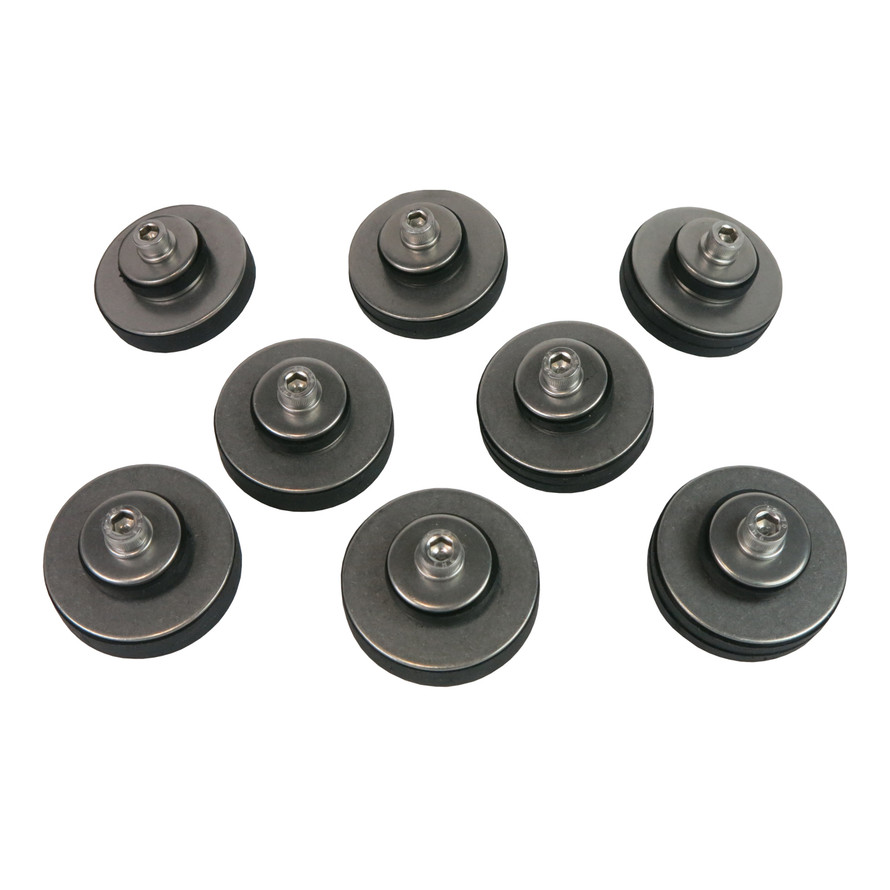

• (8) Block Adapters, 2000BA

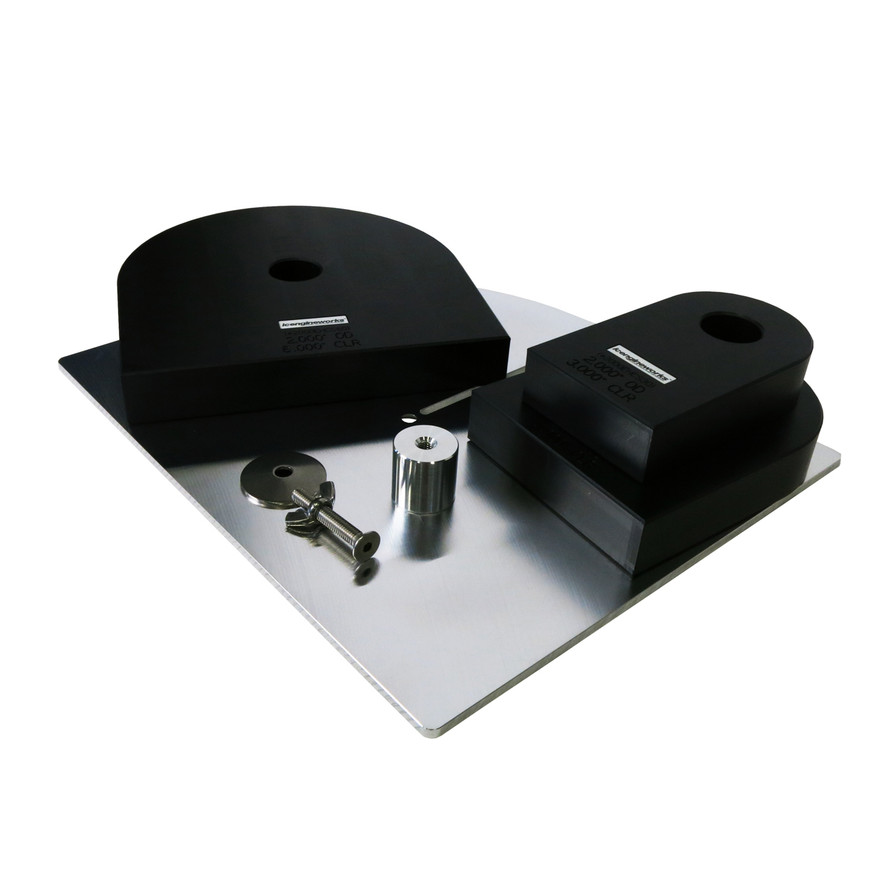

• Universal Aluminum Cutting Board, PIV1000
• Cutting Spacers for 3", 4", and 6" CLR
• 4-Piece Tack-Welding Clamp Kit, 2000TTWCS
• Manual
• Control Sheet Pad
• Plastic Storage Case

Ideal For

• Custom exhaust header fabrication
• Turbo manifold design
• Prototype layout and mock-up
• Reducing fabrication time and material waste

Frequently Asked Questions

What does this system include?
It includes modeling blocks, a cutting board with alignment tools, and welding clamps for a complete fabrication workflow.

Do the blocks represent real tube length?
Yes. Each block represents a 1" arc length, making it easy to translate designs into real tubing.

Can I build stepped headers?
Yes. Blocks of different sizes can be connected to simulate stepped header designs.

How does this reduce waste?
By allowing you to fully mock up your design before cutting metal, you avoid incorrect cuts and material loss.

Why use clamps in the process?
Clamps help align and hold tubing sections before welding, reducing fit-up errors and saving time.
