Description
CK-PC2000-24

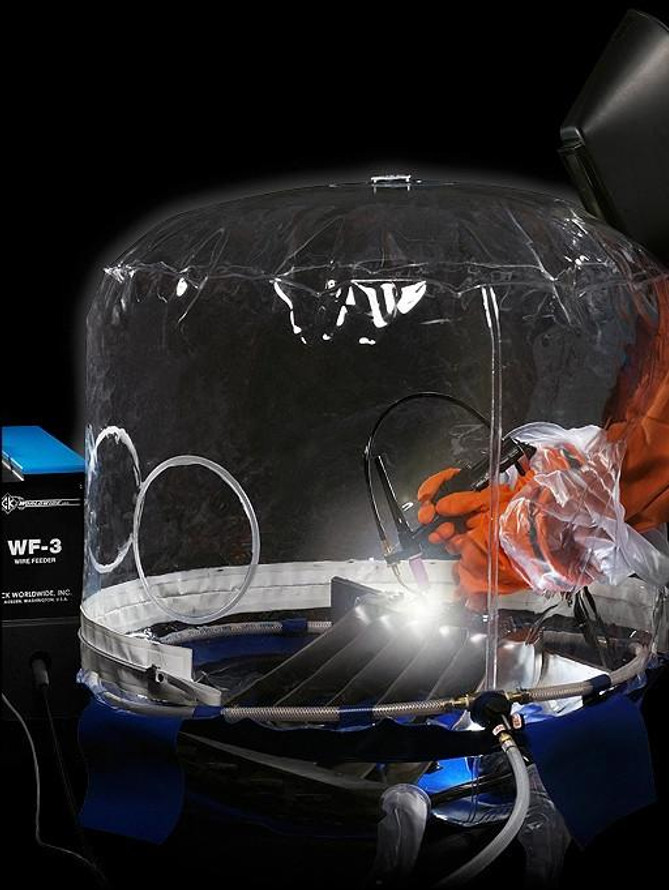

The patented CK Flexible Purge Chamber is used in the TIG process to provide a completely inert atmosphere for the welding of reactive metals such as titanium, molybdenum, nickel-based and aluminum-based alloys, as well as non-reactive metals like stainless steel.
Flexible design allows you to draw a vacuum around the part by collapsing the chamber. The chamber is then filled with inert gas through a perforated hose that encircles the bottom of the chamber. This filling process allows the argon gas to expel all atmospheric gases more effectively (through the top valve port) than traditional filling methods. This significantly reduces the time required to reach an inert atmosphere suitable for welding, while using considerably less gas than traditional rigid purge chambers - Saving you time and money!
Specifications:
Height: 20"(51.2cm)
Width: 30"(76.8cm)*
Shipping Weight: 47 lbs.(21.3kg)
Zipper Length: 60"(153.6cm)
Standard Size: 30"(76.8cm) diameter 24"(61.4cm) base
*Standard size is 30" diameter with a 24" base -- Note: Special sizes, shapes and glove configurations available. Contact Arc-Zone Customer Care for help getting you the chamber needed for your TIG welding application.
Features:
- Lower costly argon usage
- Collapsible design for easy storage
- Engineered with multiple accessory & glove ports
- Inflates quickly for fast part turn around time
- Robust vacuum pump draws out atmosphere
- Facilitates a consistent welding grade atmosphere

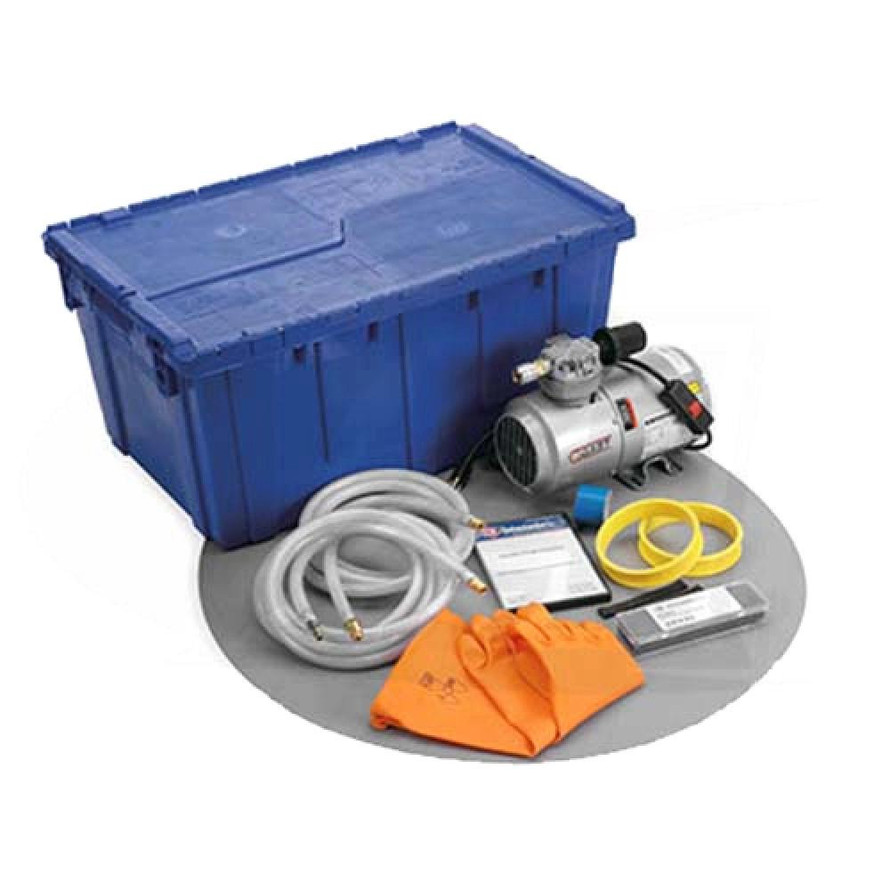

Purge Chamber Kit Includes:
- 115V Vacuum pump
- Dual flowmeter/regulator
- 2 Work stations
- 2 Sets of gloves
- 4 Accessory Ports
- Heat insulation blanket
- 10' (3m) argon hose
- 10' (3m) vacuum hose
- Repair kit
- Storage container
