Description

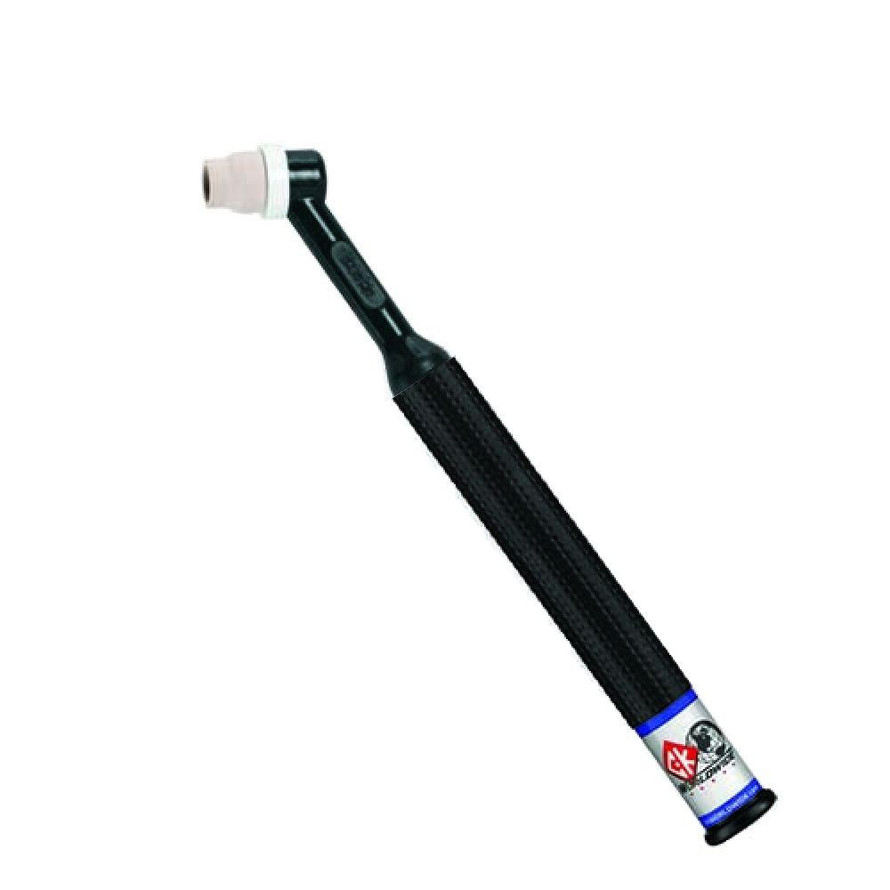

CK-80

Designed for hard-to-reach welding applications like automotive and motorcycle cylinder heads, headers, merge collectors etc. The CK-80 series is a well-balanced, lightweight torch body.

Specifications:	CK-80
Amperage	80 DCSP maximum, 100% duty cycle
Air-cooled body	60º head
Electrode capacity	.020" (.5mm) -- 3/32" (2.4mm)
Head size	8 Series
Torch body weight	1 oz. (28.3g)
Torch length	8.25" (209.5mm)
Handle diameter	3/4" (19.1mm)
Power Connection	Torch: 3/8"-24RH Male	Machine: 3/8"-24RH Female

View AllClose

Specifications

View AllClose

Additional Information

TIG Torch Type:	Gas / Air Cooled
TIG Process:	Hand Held
Torch Model:	24 style
Amperage Rating:	<100 Amp

View AllClose

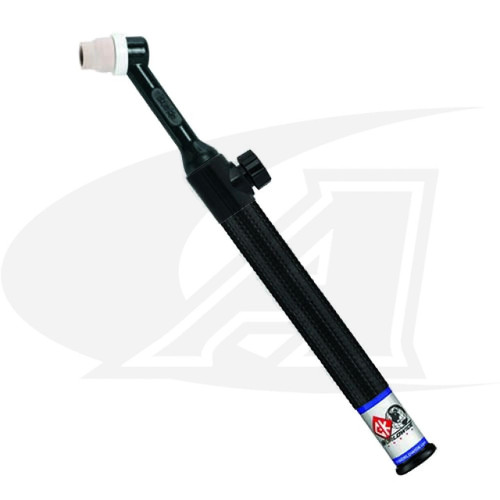

Low Profile Rigid Head Air-Cooled 80Amp TIG Torch Head with Gas Valve, Handle
