Description
CK-80V

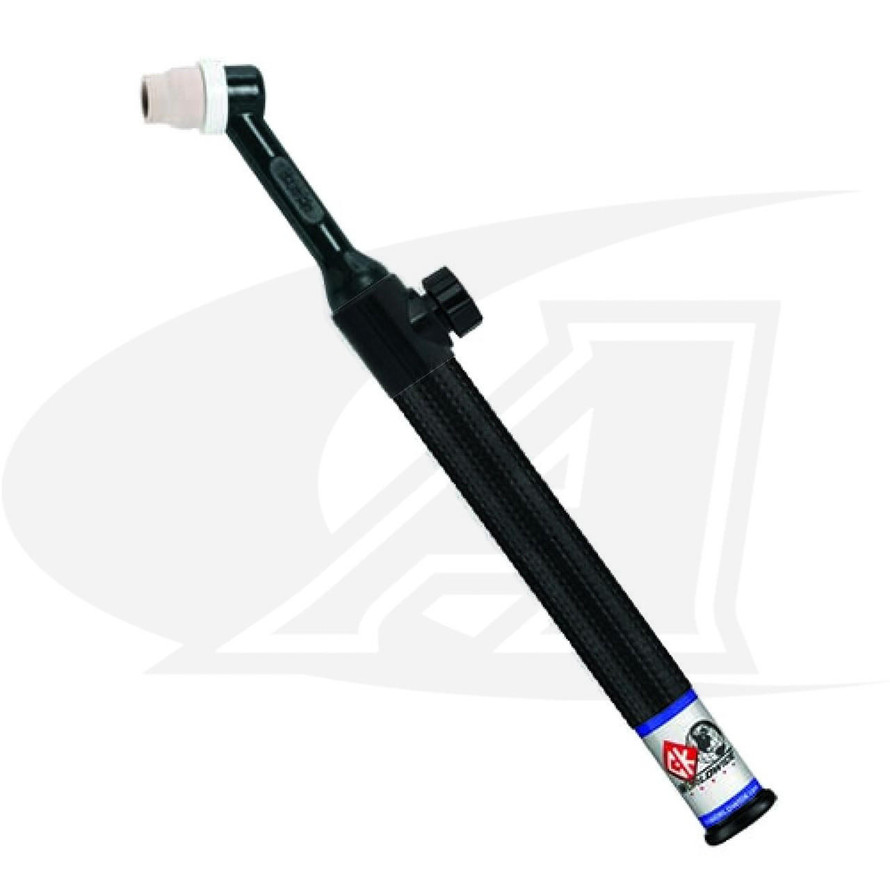

The CK80V is a rigid head TIG torch with built in gas valve for use with machines that don't have a gas solenoid, or applications that require the torch to be connected directly to the flowmeter.
Designed for intricate and hard-to-reach TIG welding jobs. Commonly used for automotive and motorcycle cylinder heads, headers, merge collectors etc.
The CK80V is a front-loading torch (no back cap), that has a "flat top" and uses compact front end parts, and the body or neck of the torch is flexible for easy access to tight places.
| Specifications: | CK-80V | |||
|---|---|---|---|---|
| Amperage | 80 DCSP maximum, 100% duty cycle | |||
| Air-cooled body | 60º head | |||
| Electrode capacity | .020" (.5mm) -- 3/32" (2.4mm) | |||
| Head size | 8 Series | |||
| Torch body weight | 2.25 oz. (64g) | |||
| Torch length | 8.25" (209.5mm) | |||
| Handle diameter | 3/4" (19.1mm) | |||
| Power Connection | Torch: 3/8"-24RH Male | Machine: 3/8"-24RH Female | ||
Specifications
View AllCloseAdditional Information
|
TIG Torch Type:
|
Gas / Air Cooled
|
|
TIG Process:
|
Hand Held
|
|
Torch Model:
|
24 style
|
|
Amperage Rating:
|
<100 Amp
|
