Description

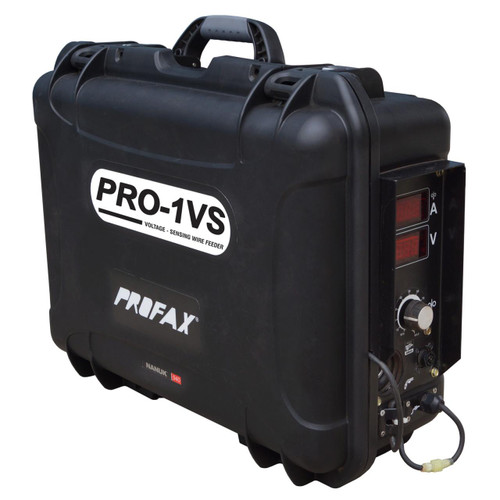

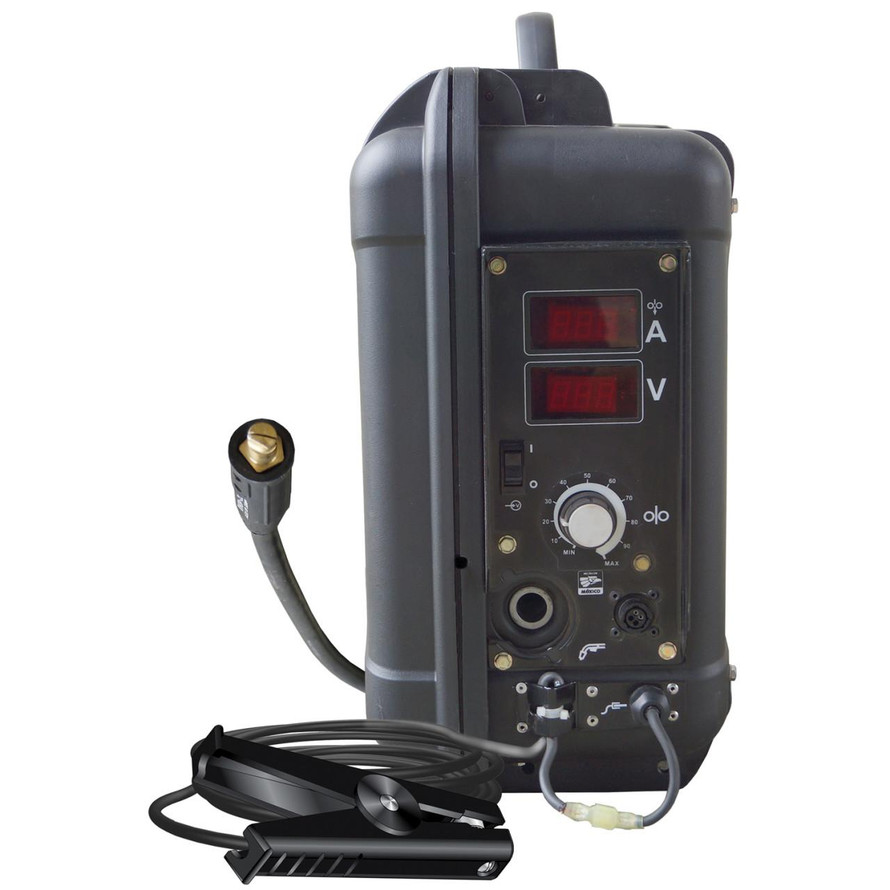

PX-PRO-1VS
Super High Quality PROFAX® Portable Voltage Sensing 2 Roll Wire Feeder with3 Year Warranty!
Direct replacment for:
Lincoln® LN-25 or 12VS, Miller® ArcReach Suitcase 12 -- at a fraction of the cost!
Applications:
- Construction
- Shipbuilding
- Rental Fleets
- Manufacturing
Processes:
- MIG (GMAW)
- Flux Cored (FCAW)
- (Gas & Self Shielded)
Standard Features:
- Trigger hold switch (on/off) (reduces operator fatigue on longer welds))
- Two (2) gear driven rolls with Tool-Less roll change (uses common Miller® style drive rolls)
- .035/.045 solid wire drive rolls included
- Accepts Miller® style gun connection (See links)
- Digital LED meters
- Top meter can show amperage or wire feed speed
- CC/CV mode selector switch
- High/Low wire feed speed selector switch
- Amp/Wire feed speed meter selector switch
- Wire jog button
- Gas purge button
- Resettable circuit breaker
- 15' sensor lead with disconnect & Lenco MG-180 clamp
- 3' of 3/0 AWG inpupt cable with Lenco LC-40HD male connector
- High impact latching case with folding handle & removable legs
- 3 Year Warranty
Specifications:
| Part # | PX-PRO-1VS |
|---|---|
| Weld Circuit Rating | 400A @ 60% Duty Cycle |
| Spool Capacity | 12" (304mm) |
| Input Power | Open Circuit Voltage & Arc 14-100V DC |
| Power Source Type | CC or CV (DC) |
| Wire Diameters | .023" - 5/64" (0.6 - 2.0mm) |
| Wire Feed Speed | 60 - 800 IPM (1.52 - 20.32m/min) |
| Gas Inlet | 5/8"-18RH Female |
| Height | 17" (432mm) |
| Width | 8.5" (216mm) |
| Depth | 21.5" (546mm) |
| Weight | 37 lbs. (17kg) |
Accessories Available:
- Profax 1260 -or- Lincoln K-126 MIG Gun Adapter Kit to PX PRO-1VS Portable Wire Feeder - PX-AEC-1001MLR
- Linclon LP style MIG Gun Adapter Kit to PX PRO-1VS Portable Wire Feeder (Gasless Only) - PX-AEC-1002MLR
- Shielding Gas Filler - PX-800118
- Inlet Liner - PX-81005
- Drive Rolls - "V" Groove
- Drive Rolls - "U" Groove
- Drive Rolls - "V" Knurled
For Lincoln Machine Models:
K1288-17; K1288-18; K1288-22; K1288-28; K1308-12; K1308-25; K1346-13; K1346-22; K1726-5; K1727-4; K1728-13; K1728-5; K1728-6; K1735-1; K2382-4; K2382-5; K2400-1; K2400-2; K2409-5; K2666-1; K2666-2; K2667-1; K2667-2; K2857-1; K2937-1; K3239-2; K3242-2; K3402-2; K3403-2; K3425-1; K3459-1; K3510-1; K3534-1; K3607-1; K3928-1; K4089-1; K4090-1; K4107-2; K4166-1; K4263-1; K4264-1; K4271-1; K4272-1; K4273-1; K4277-1; K4281-1; K4343-2; K4382-1; K4465-1; K4466-1; K4726-1; K4747-1
For Miller Machine Models:
903471; 907161011; 907366011; 907366014; 907479001; 907617; 907617001; 907703; 907703001; 907732; 907732001; 907733; 907733001; 907736; 907736001; 907737; 907737001; 907750; 907751; 907752; 907774; 907774001; 907775; 907775001; 907778; 907778001; 907797; 907797001; 907797002; 907798; 907798002; 907798004; 907799; 907799001; 907799002; 951343; 951637; 951638; 951786
Specifications
View AllCloseAdditional Information
|
Weld Type:
|
MIG
|
|
Category:
|
Assembly Replacement Parts
|
|
Part Type:
|
Wire Feeders
|
