Description
ER70S2

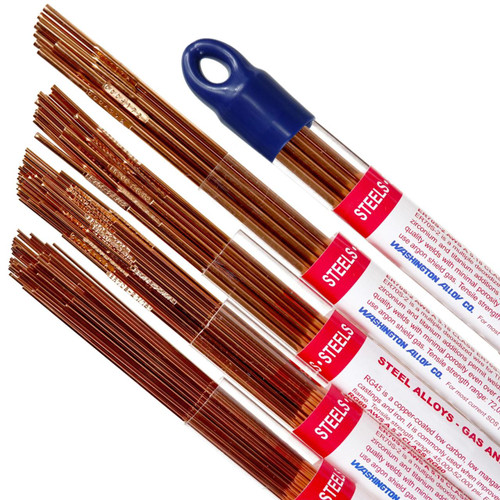

High-Performance Mild Steel TIG Welding Rod.
| AWS | A5.18 Grade |
|---|---|
| Class | ER70S-2 |
| Available Diameters | .035", .045", 1/16", 3/32" & 1/8" |
| Length | 36" (914mm) |
| Weight | 1 lb. Pack |
Approximate number of rods per 1 lb. pack for each diameter:
- .035" (0.89mm): 50 - 54
- .045" (1.14mm): 36 - 40
- 1/16" (1.6mm): 26 - 30
- 3/32" (2.4mm): 12 - 16
- 1/8" (3.2mm): 8 - 10
ER70S-2 AWS A 5.18 CLASS ER 70S-2
ER70SD-2 is a multiple de-oxidized Plain Carbon Steel that includes Zirconium, Titanium, and Aluminum in addition to the high levels of Manganese and Silicon common to plain Carbon Steels of this group.
The ability of this wire to perform well over oily, dirty, or rusty surfaces is one of its key features.
ER70S-2 has a quick freezing weld pool with a somewhat tight molten range, which makes it an ideal choice for welding tubing, piping, and out-of-position applications.
The deposits have high ductility, excellent impact values and tensile strength.
ER70S02 is often used on AISI 4130 tubing where lower tensile strengths are acceptable or where reinforcing gussets are used in the design.
Tensile strength: 83,000 psi (specs call for 70,000 minimum).
Elongation is 25%.
This wire is often used with TIG and Plasma for critical applications.
Learn More:
Specifications
View AllCloseAdditional Information
|
Material Type:
|
Mild Steel
|
|
Wire Diameter:
|
.035" (0.89mm)
|
|
Wire Diameter:
|
.045" (1.14mm)
|
|
Wire Diameter:
|
1/16" (1.6mm)
|
|
Wire Diameter:
|
3/32" (2.4mm)
|
|
Wire Diameter:
|
1/8" (3.2mm)
|
|
Pack Size:
|
1 lb. Mini Pack
|
